2010 Suzuki LT-A400FK8 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2010 Suzuki LT-A400FK8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

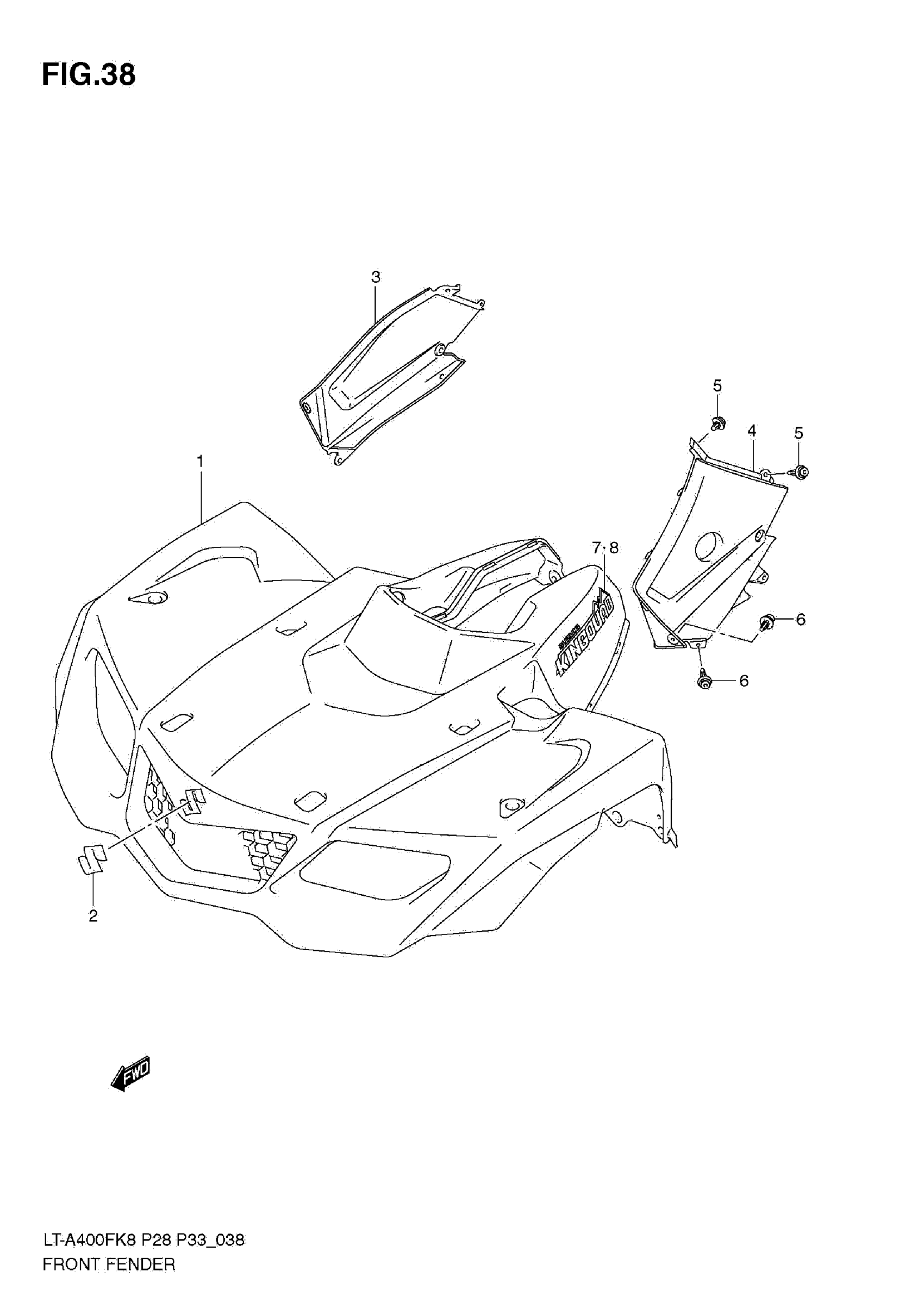

2010 Suzuki LT-A400FK8 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER,FRONT (RED) This part replaces 53111-27H00-YT9.

53111-27H02-YT9

1
Out of stock

1

FENDER,FRONT (GREEN) This part replaces 53111-27H00-YLG.

53111-27H02-YLG

1
Out of stock

1

FENDER,FRONT (B | MODEL K8/K9 This part replaces 53111-27H00-YLZ.

53111-27H02-YLZ

1
Out of stock

1

FENDER, FRONT (CAMOUFLAGE) | MODEL K8 This part replaces 53111-27H10-YKL.

53111-27H11-YVA

1
Out of stock

1

FENDER, FRONT (CAMOUFLAGE) | MODEL K9/L0 This part replaces 53111-27H10-YVA.

53111-27H11-YVA

1
Out of stock

1

FENDER, FRONT (BLUE) | MODEL L0 This part replaces 53111-27H00-YPW.

53111-27H01-YPW

1
Out of stock

2

EMBLEM, FRONT

68151-03G40

1
Out of stock

3

COVER,SIDE,R (BLACK) This part replaces 53112-27H01-291.

53112-27H04-291

1
Out of stock

4

COVER,SIDE,L (BLACK) | LT-F400FK8/FK9/FUL0 This part replaces 53122-27H01-291.

53122-27H13-291

1
Out of stock

4

COVER,SIDE,L (BLACK) | LT-F400FL0 This part replaces 53122-27H10-291.

53122-27H13-291

1
Out of stock

5

CLIP, CENTER

09409-07333

4
Out of stock

6

CLIP, SIDE NO.1

09409-08335

2
Out of stock

6

CLIP, SIDE NO.3

09409-10306

2
Out of stock

7

EMBLEM,FR FENDE This part replaces 68151-27H00-ETA.

68151-27HA1-EFG

1
Out of stock

8

EMBLEM,FR FENDE This part replaces 68152-27H00-ETA.

68152-27HA1-EFG

1
Out of stock
