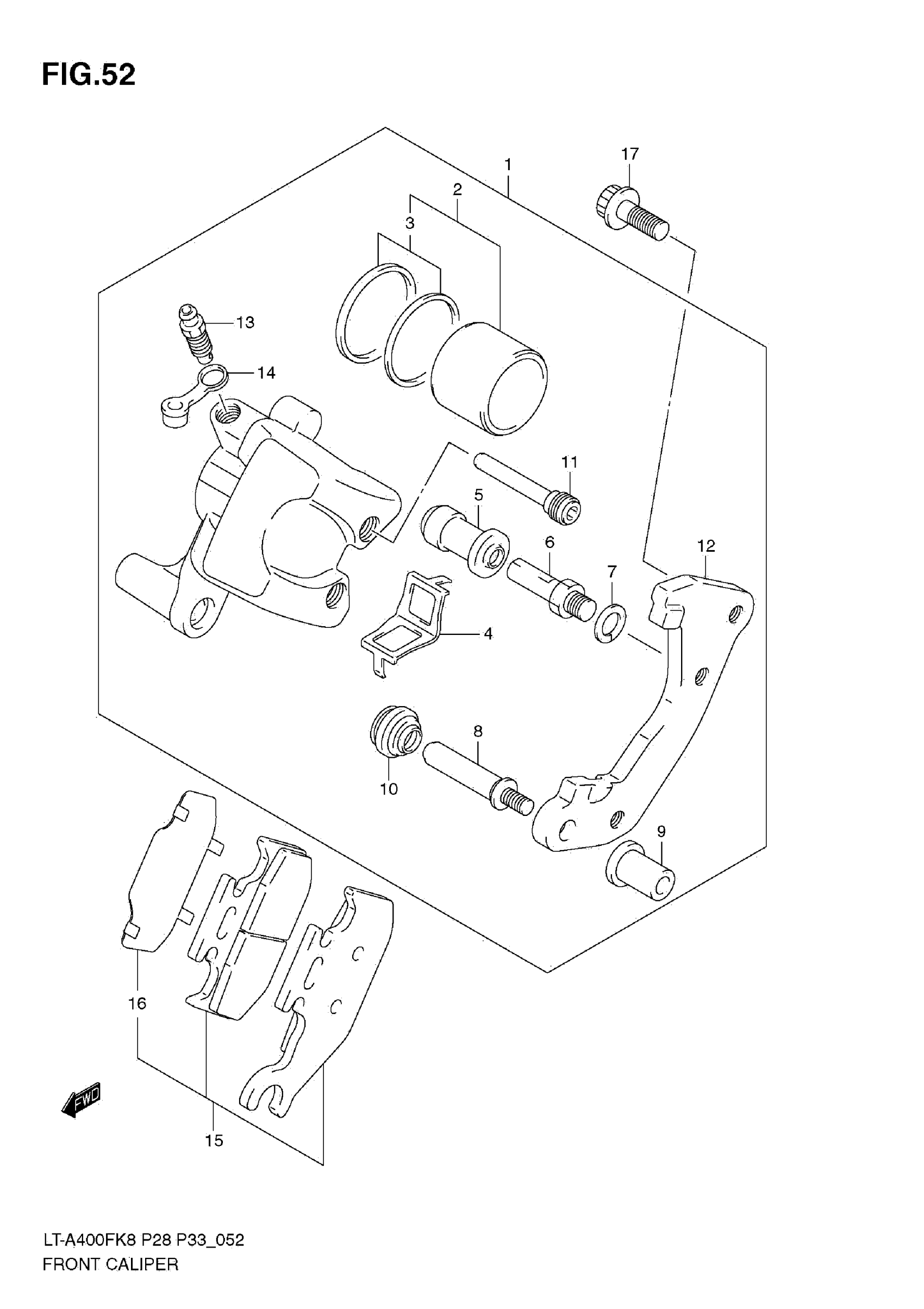

Suzuki LT-A400FK8 (2010) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-31G00-999

$363.38

1

CALIPER ASSY,FRONT,L

59300-31G01-999

$363.38

2

PISTON SET

59300-13810

$42.57

3

..SEAL SET,PISTON

69100-13820

$8.02

4

SPRING, PAD

59315-27C00

$15.83

5

BOOT

59386-13A00

$7.28

6

PIN

59382-13A00

$7.24

7

WASHER

59314-13A00

$2.28

8

PIN

59387-00B20

$17.46

9

NUT

59388-00B20

$20.13

10

BOOT

59303-14500

$5.06

11

.PIN,HANGER

59145-39D00

$24.33

12

BRACKET, RH

59151-31G00

$60.38

12

BRACKET, LH

59351-31G00

$60.38

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

PAD & SHIM SET,R

59100-31870

$61.52

15

PAD & SHIM SET,L

59100-31880

$61.52

16

SHIM

69132-28C00

$10.68

17

BOLT (8X20)

09106-08174

$3.08
