2009 Suzuki LT-A400F Recoil Starter Diagram

← All diagrams

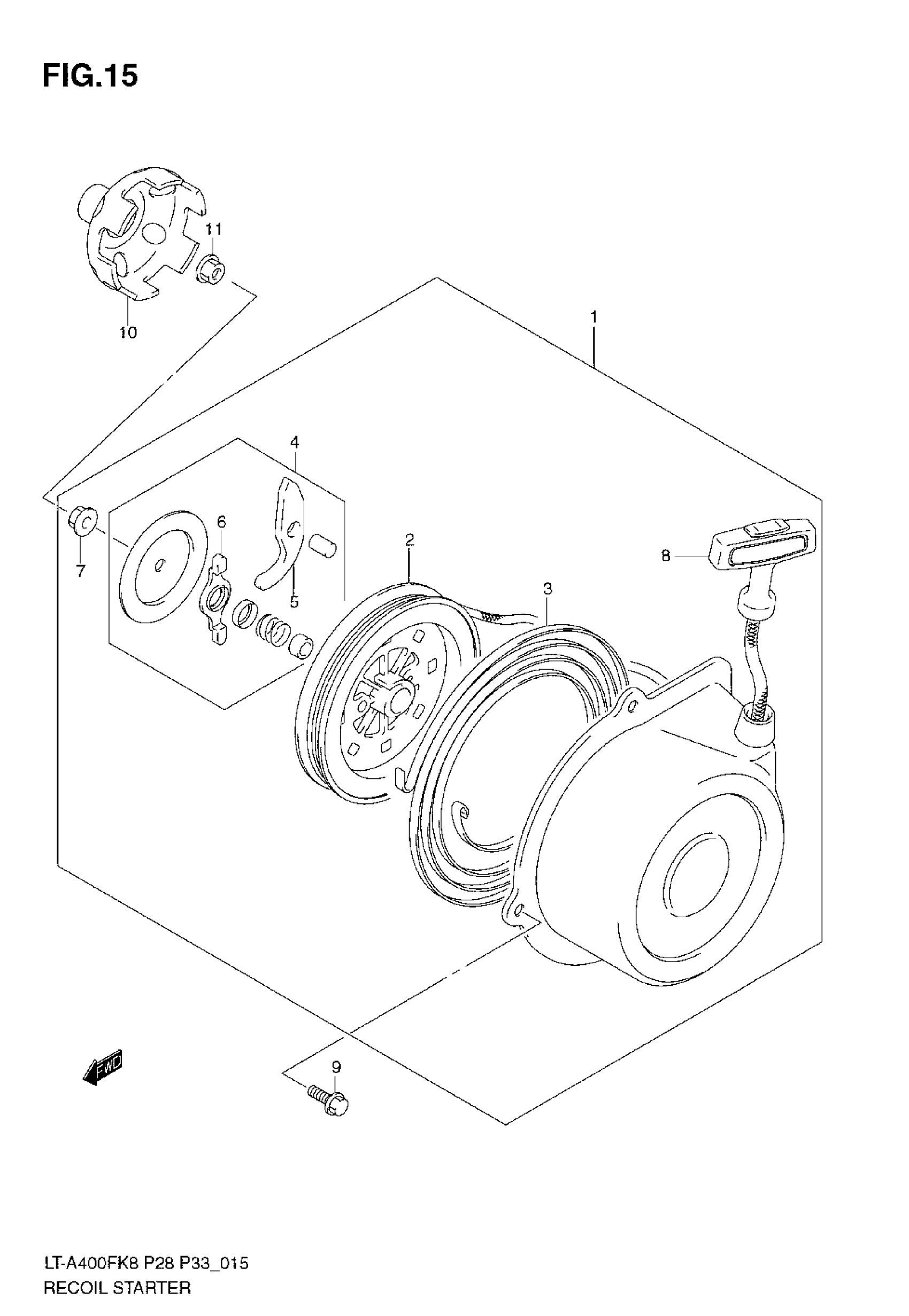

Find the part on the Recoil Starter diagram for your 2009 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A400F Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY,RECOIL | Includes Item(s) 2 - 8

18100-24503

1
Out of stock

2

REEL

18120-24500

1
Out of stock

3

.SPRING,SPIRAL

18142-24400

1
Out of stock

4

RATCHET SET

18130-24400

1
Out of stock

5

RATCHET

18131-24411

1
Out of stock

6

..GUIDE,RATCHET

18132-24400

1
Out of stock

7

NUT

08316-1006B

1
Out of stock

8

ROPE ASSY

18200-24501

1
Out of stock

9

BOLT (6X12)

09103-06236

4
Out of stock

10

CUP,STARTER

18410-09F02

1
Out of stock

11

NUT

08316-1010B

1
Out of stock
