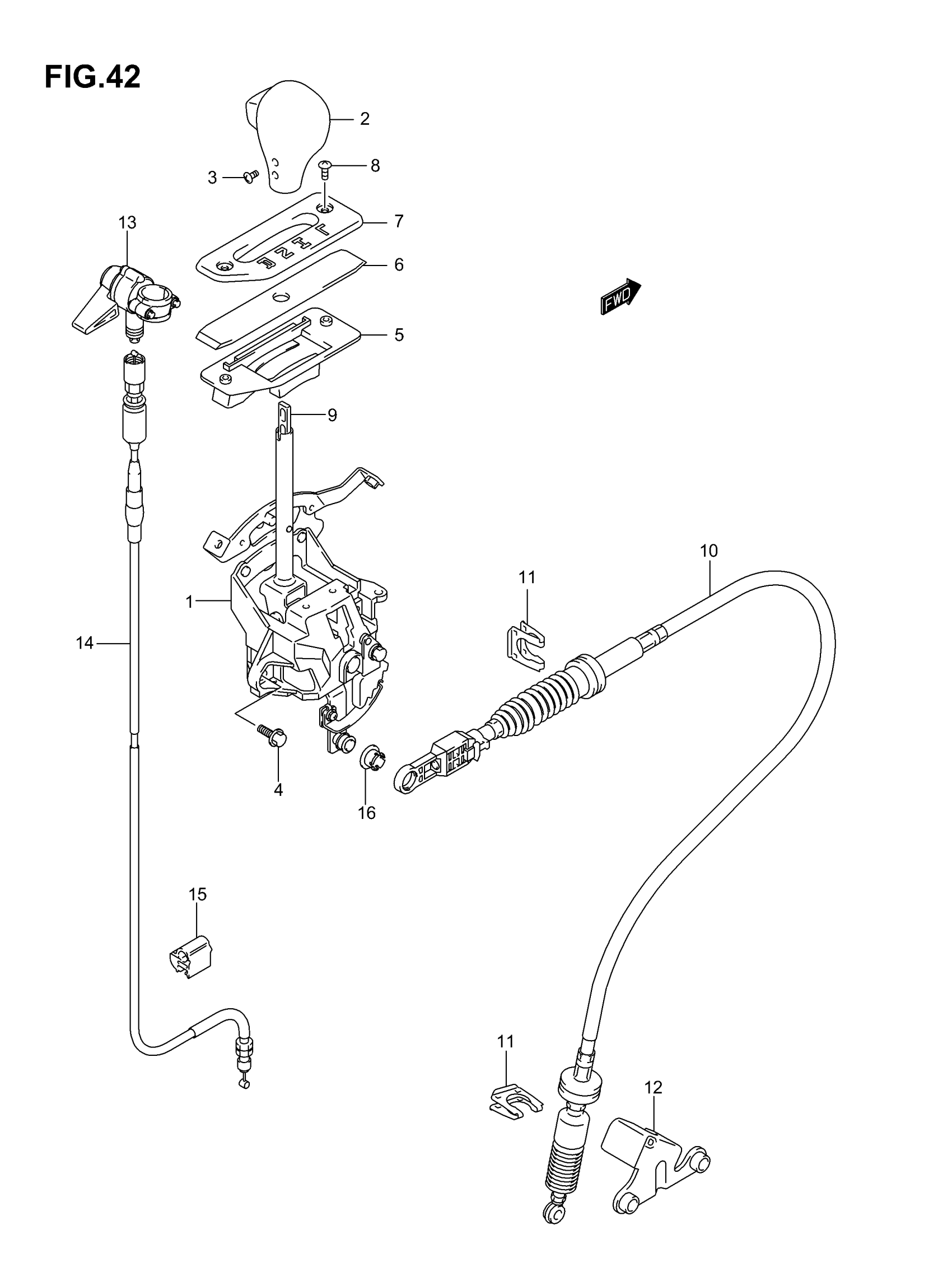

Suzuki LT-A400F (2007) SHIFT LEVER Diagram

#

Description
Price

1

LEVER ASSY, TRANSMISSION

57800-38F00

$566.92

2

KNOB, T/M LEVER | MODEL K3 This part replaces 57830-38F10.

57830-38F11

$45.14

2

KNOB, T/M LEVER | MODEL K4/K5/K6/K7

57830-38F11

$45.14

3

SCREW,4X6 | MODEL K3 This part replaces 09125-04035.

09125-04035-XC0

$2.58

3

SCREW, KNOB | MODEL K4/K5/K6/K7

09139-04007

$2.57

4

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

5

HOLDER, LEVER

57981-38F00

Unavailable

6

SLIDER, LEVER

57971-38F00

Unavailable

7

COVER, LEVER

57962-38F00

$14.18

8

SCREW

09132-05050

$1.89

9

ROD, DETENT

57863-38F00

$8.50

10

CABLE, T/M GEAR SHIFT | MODEL K3

58680-38F40

$127.07

10

CABLE, T/M GEAR SHIFT | MODEL K4/K5/K6/K7

58680-38F60

$127.07

11

CLIP

28375-78A00

$5.09

12

BRACKET, T/M CABLE

58620-38F40

$45.53

13

LEVER, TRANSFER | %F.NO.5SAAK46K3X102000 This part replaces 57920-38F00.

57920-38F11

$242.93

13

LEVER, TRANSFER | F.NO.5SAAK46K3X102001% This part replaces 57920-38F10.

57920-38F11

$242.93

13

LEVER, TRANSFER | MODEL K6/K7

57920-38F11

$242.93

14

CABLE, TRANSFER SHIFT

58690-38F00

$67.11

15

CLAMP

09403-05406

$2.83

16

BUSH

58821-03G00

$3.96
