2007 Suzuki LT-A400F Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2007 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

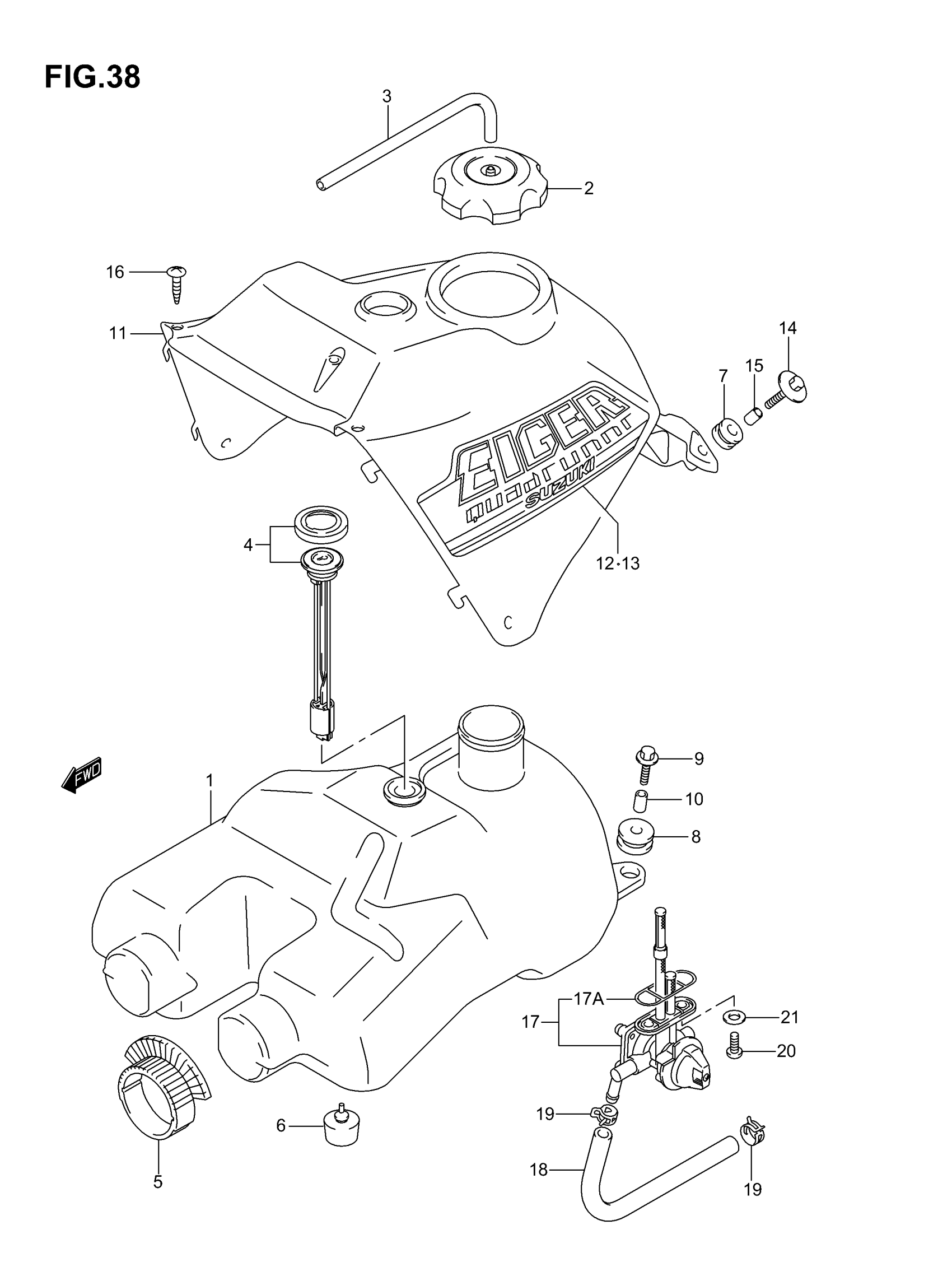

2007 Suzuki LT-A400F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-38F00

1
Out of stock

3

1

$9.88

In stock

4

1

$63.25

In stock

7

CUSHION, SEAT MOUNT

45141-09F00

1
Out of stock

8

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

2
Out of stock

9

BOLT

09116-06050

2
Out of stock

10

SPACER

44544-38F00

2

$9.90

In stock

11

1

$69.22

In stock

11

1

$74.18

In stock

12

EMBLEM, COVER RH | FOR YT8

68111-38F00-YAM

1
Out of stock

12

EMBLEM, COVER RH | FOR YT9

68111-38F00-YAN

1
Out of stock

13

EMBLEM, COVER LH | FOR YT8

68121-38F00-YAM

1
Out of stock

13

EMBLEM, COVER LH | FOR YT9

68121-38F00-YAN

1
Out of stock

14

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

15

SPACER

09180-06267

1
Out of stock

16

2

$2.10

In stock

17A

O RING

44348-38F00

1

$5.70

In stock

18

1

$18.96

In stock

19

2

$2.36

In stock

20

BOLT

09103-06277

2

$1.72

In stock

21

GASKET

09168-06026

2

$3.00

In stock
