2002 Suzuki LT-A400F Rear Fender Diagram

← All diagrams

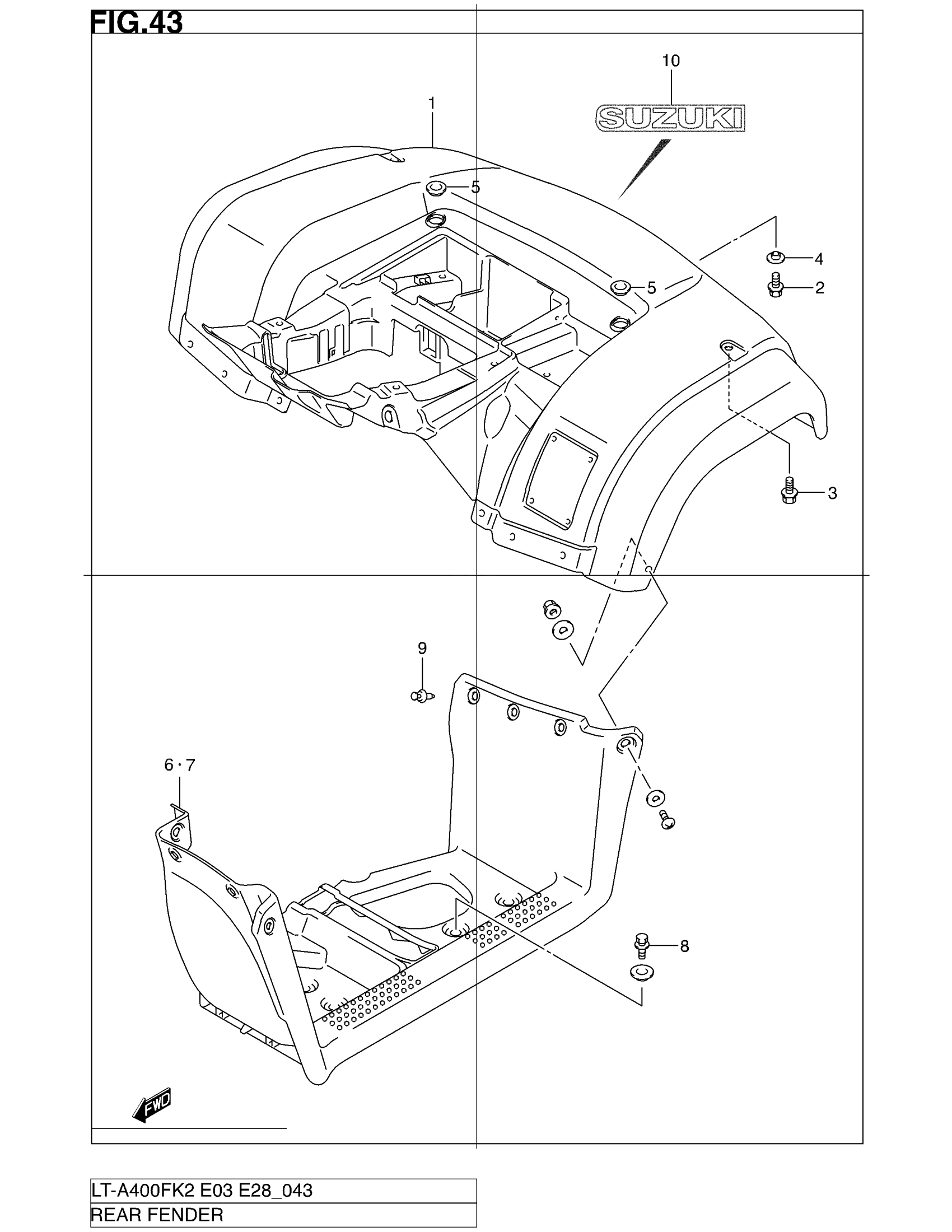

Find the part on the Rear Fender diagram for your 2002 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-A400F Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR This part replaces 63111-38F00-YT8.

63111-38F21-YT8

1
Out of stock

1

FENDER, REAR This part replaces 63111-38F00-YT9.

63111-38F41-YT9

1
Out of stock

2

BOLT, FRONT

09116-06168

2
Out of stock

3

BOLT, SIDE

09116-06147

2
Out of stock

4

SPACER

09180-06290

2
Out of stock

5

CUSHION

09320-11008

2
Out of stock

6

MUD GUARD,FOOTR This part replaces 63331-38F00-291.

63331-38F03-291

1
Out of stock

7

MUDGUARD FOOTRE This part replaces 63341-38F00-291.

63341-38F02-291

1
Out of stock

8

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

4
Out of stock

9

CLIP

09409-08335

18
Out of stock

10

EMBLEM, REAR | FOR YT8

68171-44B00-HV6

1
Out of stock

10

EMBLEM, REAR | FOR YT9

68171-44B00-HV5

1
Out of stock
