Description

Price

1

HUB,REAR,L | Includes Item(s) 2 This part replaces 64110-38F00.

64110-38F30

$100.69

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.24

3

RIM, REAR WHEEL (12X7.5AT) (BLACK) This part replaces 65310-38F00-YL8.

65310-38F40-291

$202.98

4

NUT

09140-10021

$2.01

5

WASHER

09164-18004

$3.38

6

NUT, HUB

09141-18008

$7.67

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

8

CAP,WHEEL CENTER

54725-09F01

$9.11

9

AXLE,REAR,L This part replaces 64712-38F10.

64712-38F20

$105.30

10

TIRE,REAR This part replaces 65110-38F00.

65110-03G30

Unavailable

11

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

$8.10

12

PLATE,TRAILER TOW This part replaces 95210-38F00.

95210-38F10

$49.25

13

.BOLT This part replaces 01550-10353.

01550-1035A

$3.25

14

PROTECTOR,FINAL CASE This part replaces 61391-38F00.

61391-38F11

$74.60

15

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$6.72

16

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

$2.06

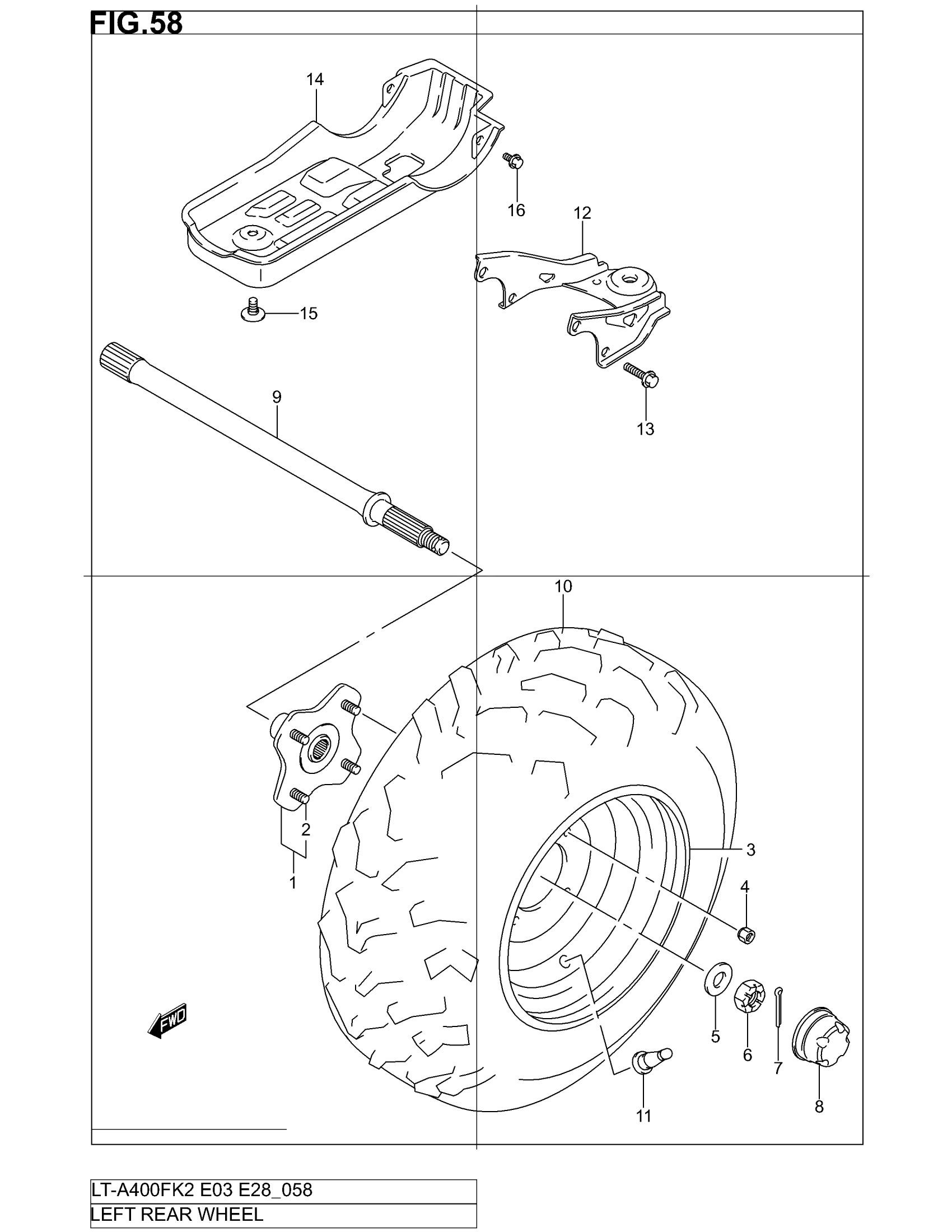

Suzuki LT-A400F (2002) LEFT REAR WHEEL Diagram
