2002 Suzuki LT-A400F Final Bevel Gear Diagram

← All diagrams

Find the part on the Final Bevel Gear diagram for your 2002 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

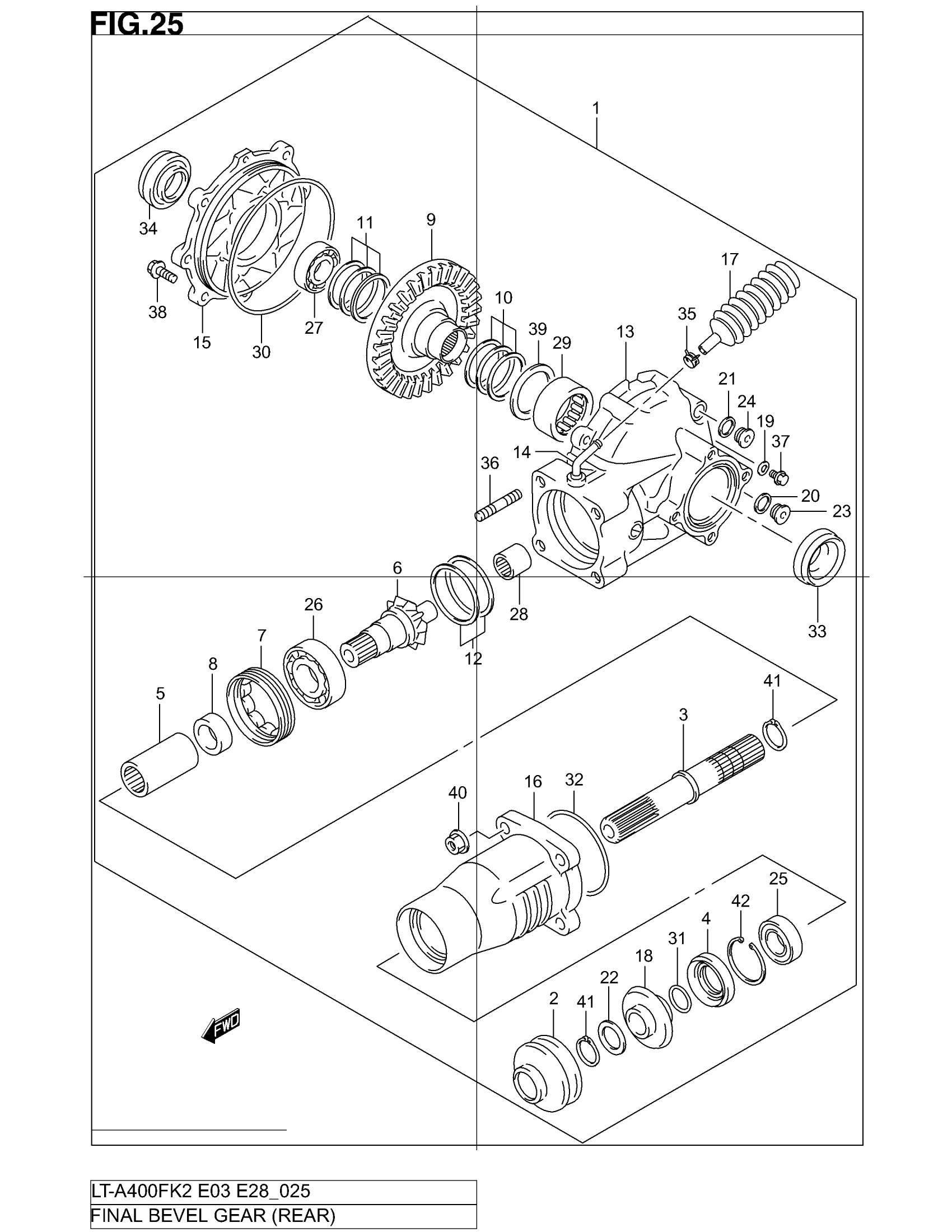

2002 Suzuki LT-A400F Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 42 This part replaces 27300-38861.

27301-38820

1
Out of stock

2

BOOT,RR FINAL D This part replaces 27153-44D80.

27153-44D81

1
Out of stock

3

SHAFT, RR FINAL DRIVE This part replaces 27155-38F00.

27155-38FM0

1
Out of stock

4

SEAL, FINAL DRIVE BRG

27156-38F00

1
Out of stock

5

JOINT, REAR FINAL DRIVE

27157-38F00

1
Out of stock

6

GEAR, REAR FINAL DRIVE | NT:10

27311-38F00

1
Out of stock

7

.STOPPER,FINAL DRIVE BEARING

27312-38F00

1
Out of stock

8

SPACER, REAR FINAL DRIVE

27316-38F00

1
Out of stock

9

GEAR, FINAL DRIVEN BEVEL | NT:36

27321-38F00

1
Out of stock

10

SHIM SET, FINAL DRIVEN LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

1
Out of stock

11

SHIM SET, FINAL DRIVEN RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

1
Out of stock

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

1
Out of stock

13

CASE, REAR FINAL GEAR

27450-38F00

1
Out of stock

14

UNION, BREATHER

09364-08009

1
Out of stock

15

CASE, REAR FINAL DRIVEN RH

27461-38F00

1
Out of stock

16

HOUSING, RR FINAL DRIVE

27471-38F50

1
Out of stock

17

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

18

COLLAR.OUTPUT OIL SEAL

27590-38F00

1
Out of stock

19

GASKET, OIL CHECK BOLT

09168-06018

1
Out of stock

20

GASKET, OIL DRAIN

09168-16002

1
Out of stock

21

GASKET, OIL FILLER

09168-16002

1
Out of stock

22

WASHER, RR FINAL DRIVE

09181-25223

1
Out of stock

23

PLUG, OIL DRAIN

09248-16012

1
Out of stock

24

PLUG, OIL FILLER

09248-16012

1
Out of stock

25

BEARING, REAR FINAL

09262-25132

1
Out of stock

26

BEARING, FINAL DRIVE GEAR

09262-28014

1
Out of stock

27

BEARING, FINAL DRIVEN RH

09262-45012

1
Out of stock

28

BEARING, FINAL DRIVE PILOT

09263-20089

1
Out of stock

29

BEARING, FINAL DRIVEN LH

09263-40012

1
Out of stock

30

O RING, BEARING CASE RH

09280-00036

1
Out of stock

31

O RING, COLLAR OUTPUT | ID:23.7,DD:2.4

09280-24010

1
Out of stock

32

O RING, RR FINAL HOUSING | ID:74.0,DD:3.1

09280-76008

1
Out of stock

33

OIL SEAL, FINAL DRIVEN LH | 38X54X6.0

09283-38009

1
Out of stock

34

OIL SEAL, FINAL DRIVEN RH | 42X62X7.0

09283-42011

1
Out of stock

35

CLAMP

09401-08411

1
Out of stock

36

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

4
Out of stock

37

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock

38

BOLT This part replaces 01550-08253.

01550-0825A

8
Out of stock

39

WASHER, FINAL DRIVEN LH

08211-40505

1
Out of stock

40

NUT This part replaces 08316-10103.

08316-1010B

4
Out of stock

41

CIRCLIP, REAR FINAL DRIVE

08331-31256

2
Out of stock

42

CIRCLIP This part replaces 08331-41526.

08331-41529

1
Out of stock
