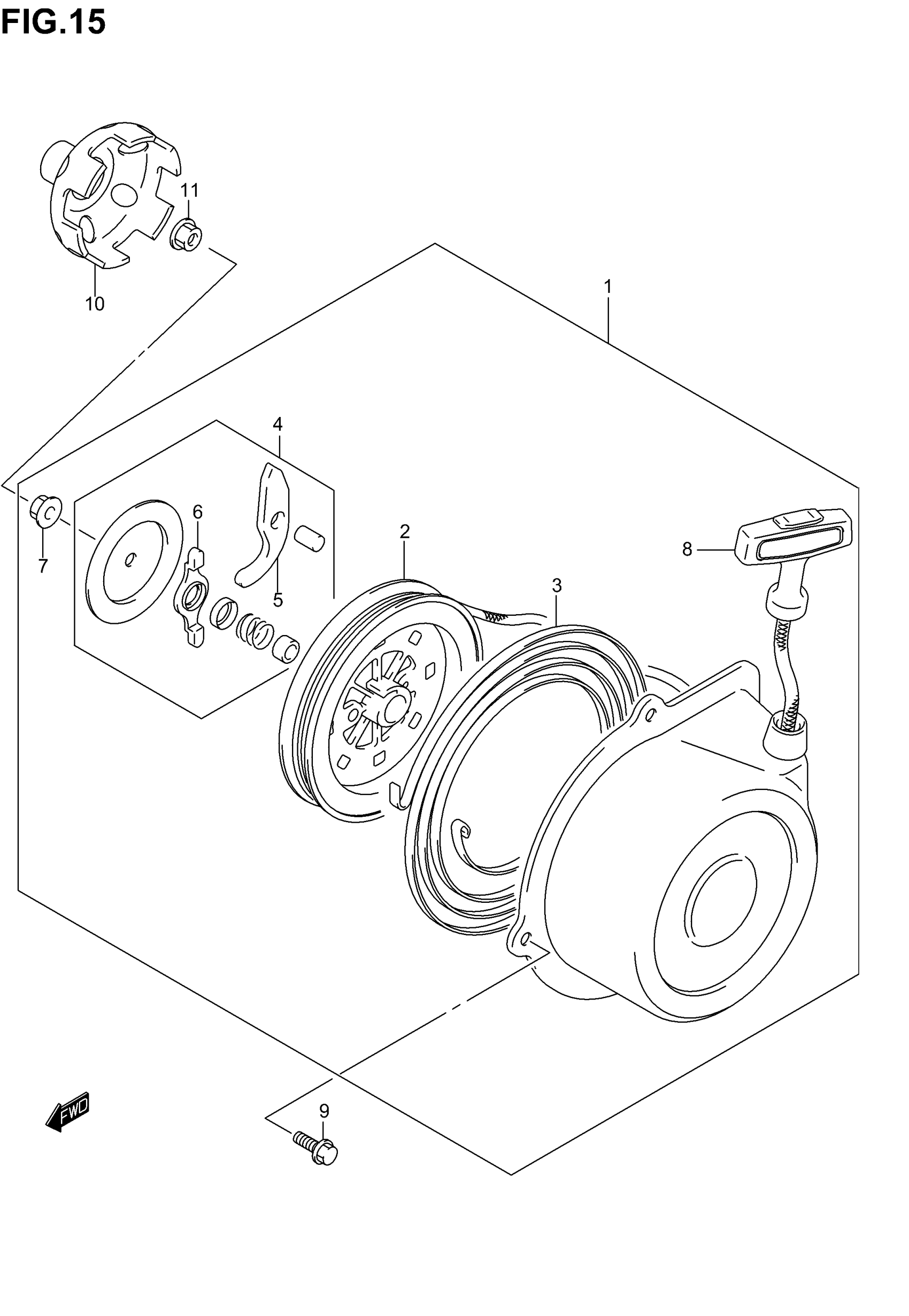

Suzuki LT-A400C (2005) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY,RECOIL | Includes Item(s) 2 - 8

18100-24503

$210.26

2

REEL

18120-24500

Unavailable

3

.SPRING,SPIRAL

18142-24400

$27.09

4

RATCHET SET

18130-24400

$22.50

5

RATCHET

18131-24411

$9.17

6

..GUIDE,RATCHET

18132-24400

$2.80

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

ROPE ASSY

18200-24501

$35.90

9

BOLT

09103-06236

$2.71

10

CUP,STARTER

18410-09F02

$86.98

11

NUT This part replaces 08316-10103.

08316-1010B

$2.65
