2005 Suzuki LT-A400C OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 2005 Suzuki LT-A400C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

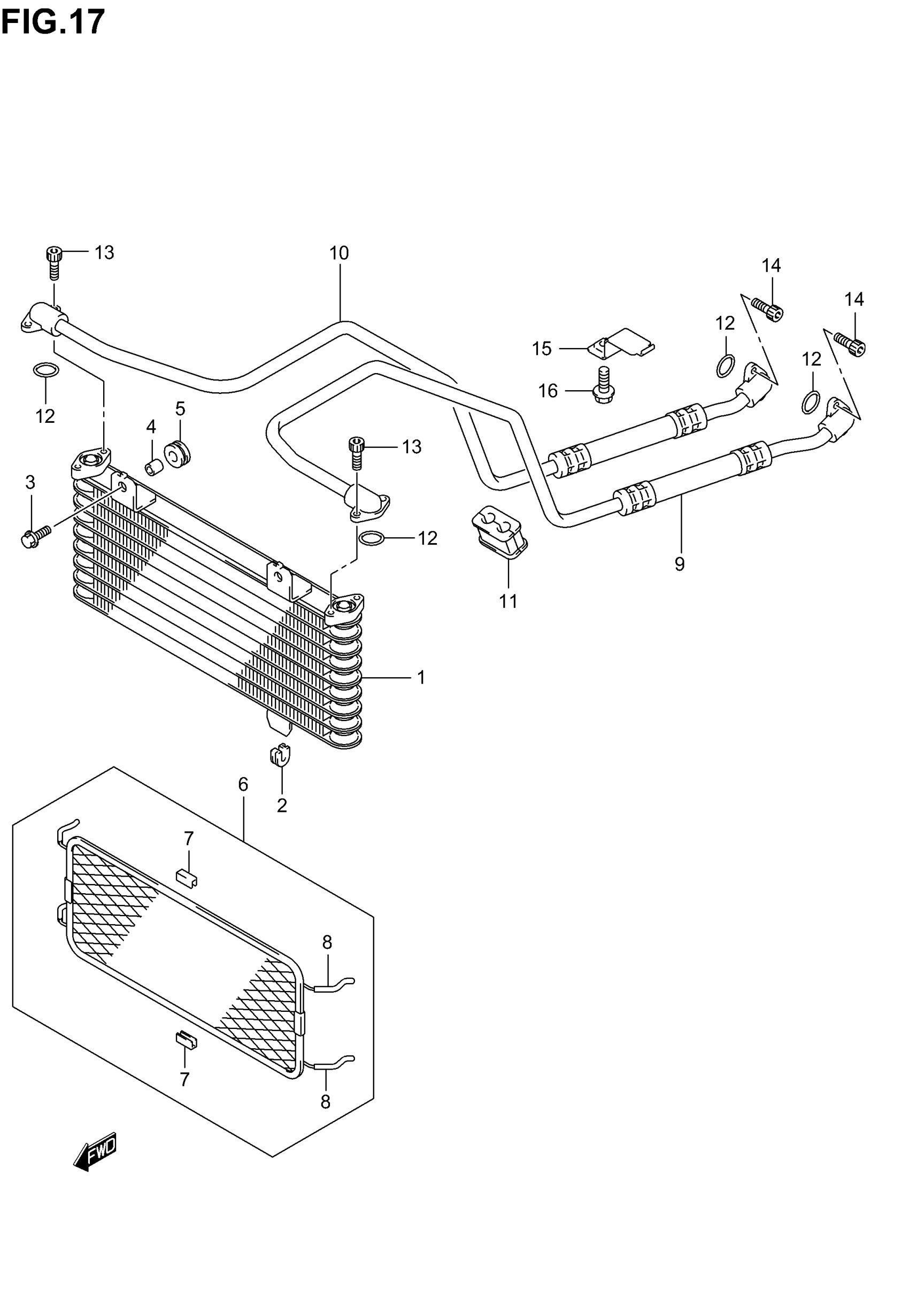

2005 Suzuki LT-A400C OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY,OIL | %F.NO.5SAAK46K3X102000 This part replaces 16600-38F00.

16600-38F22

1
Out of stock

1

COOLER ASSY,OIL | F.NO.5SAAK46K3X102001% This part replaces 16600-38F10.

16600-38F22

1
Out of stock

1

COOLER ASSY,OIL | MODEL K4/K5 This part replaces 16600-38F20.

16600-38F22

1
Out of stock

2

CUSHION, OIL COOLER

16628-27A00

1
Out of stock

3

BOLT (6X25) This part replaces 09116-06146.

09116-06150

2
Out of stock

4

SPACER (6.5X10X10)

09180-06310

2
Out of stock

5

CUSHION

09320-10015

2
Out of stock

6

GUARD, OIL COOLER | Includes Item(s) 7 - 8

16650-38F00

1
Out of stock

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

2
Out of stock

8

.HOSE (3X5X600) | L:600!40 This part replaces 09352-30503-600.

09352-30504-600

4
Out of stock

9

HOSE,OIL COOLER INLET This part replaces 16460-38F00.

16460-38F10

1
Out of stock

10

HOSE,OIL COOLER OUTLET | %F.NO.5SAAK46K3X102000 This part replaces 16470-38F00.

16470-38F10

1
Out of stock

10

HOSE,OIL COOLER OUTLET | F.NO.5SAAK46K3X102001%

16470-38F10

1
Out of stock

11

GROMMET,OIL HOSE This part replaces 16468-38F00.

16468-38F01

1
Out of stock

12

O RING (D:2.4,ID:12.3)

09280-12008

4
Out of stock

13

BOLT This part replaces 07130-06163.

07130-0616B

4
Out of stock

14

BOLT, LOWER

09106-06073

4
Out of stock

15

CLAMP,OIL HOSE

16490-38F00

1
Out of stock

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock
