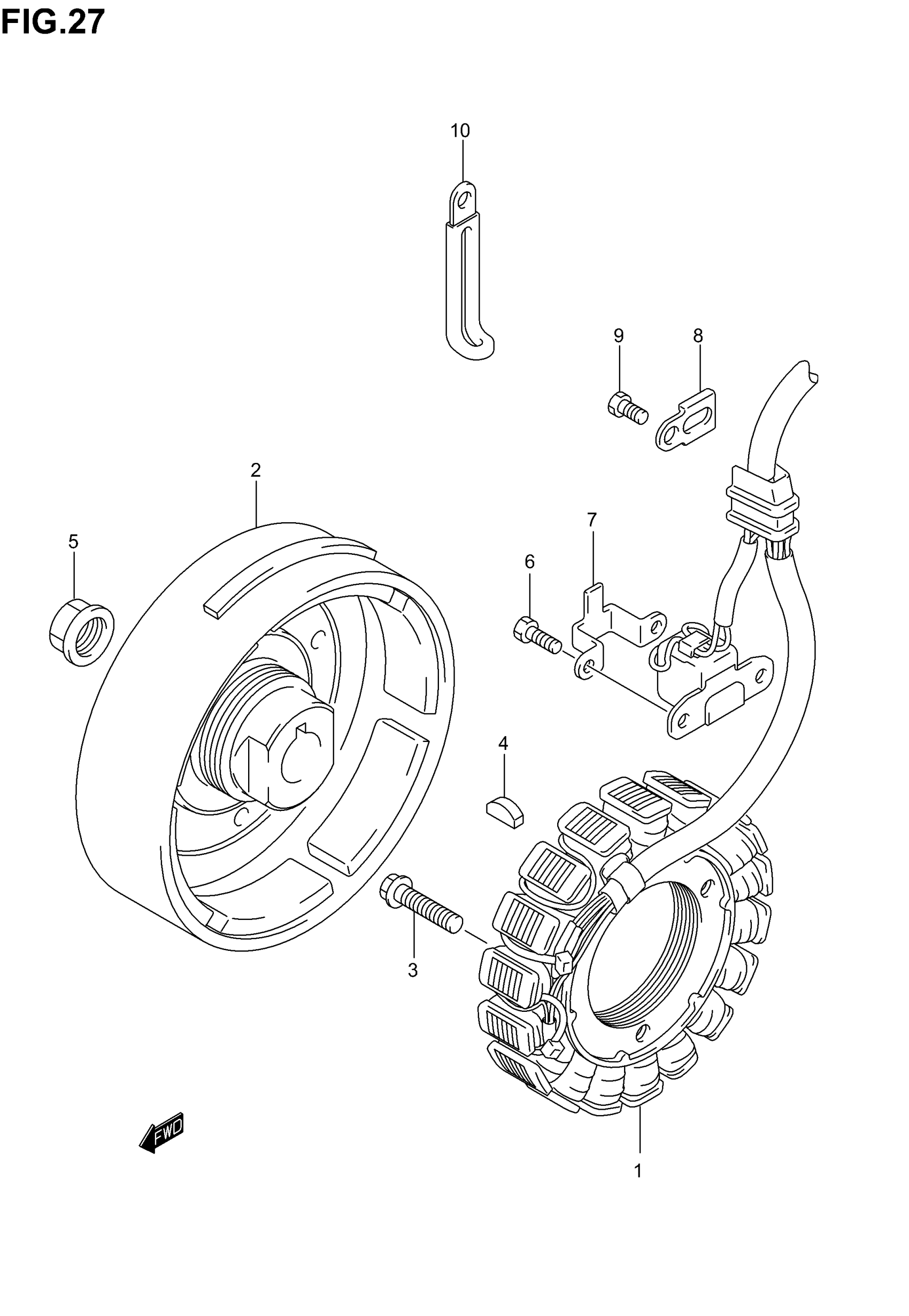

Suzuki LT-A400C (2005) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-38F00

$581.02

2

ROTOR This part replaces 32102-38F00.

32102-38F01

$411.14

3

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

4

KEY, MAGNETO

08341-31059

$2.50

5

NUT, MAGNETO

31792-18A00

$13.40

6

BOLT, SENSOR (5X10)

09100-05019

$2.10

7

CLAMP, MAGNETO NO.1

31497-45000

$2.17

8

CLAMP, MAGNETO NO.2

32371-32E00

$7.12

9

BOLT, CLAMP NO.2 (5X10)

09100-05019

$2.10

10

CLAMP This part replaces 09404-06431.

09404-06039

$1.73
