2005 Suzuki LT-A400C Label Diagram

← All diagrams

Find the part on the Label diagram for your 2005 Suzuki LT-A400C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

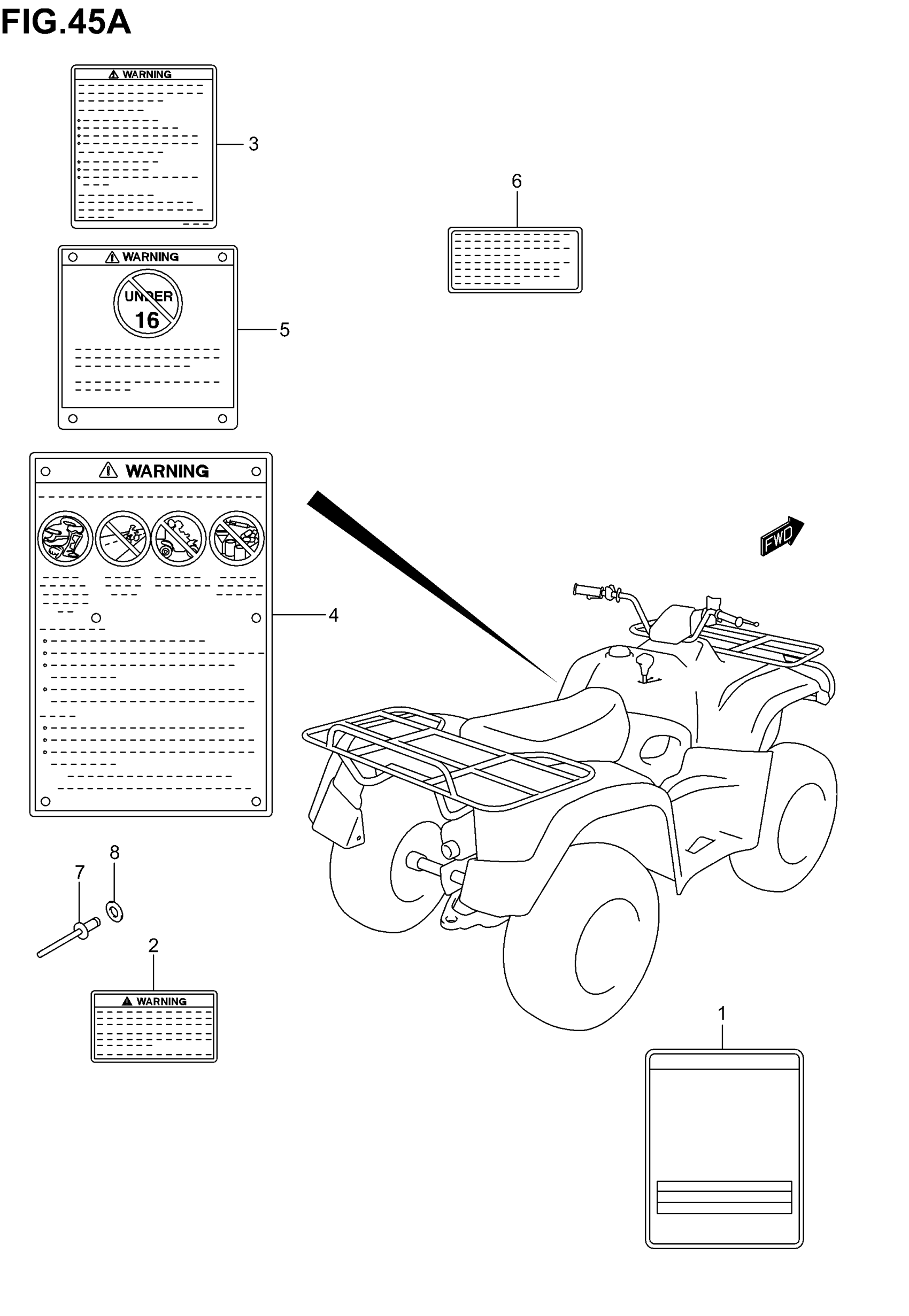

2005 Suzuki LT-A400C Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, TIRE | E28,E33

68332-38F20

1
Out of stock

1

LABEL, TIRE | E28

68332-38F30

—
Out of stock

2

LABEL,TRAILER TOW WARNING | E28,E33 This part replaces 68617-03G00.

68617-03G01

1
Out of stock

2

LABEL,TRAILER TOW WARNING | E28 This part replaces 68617-03G10.

68617-03G11

1
Out of stock

3

LABEL,GEAR SHIFTING | E28,E33 This part replaces 68633-09F00.

68633-09F01

1
Out of stock

3

LABEL,GEAR SHIF | E28 This part replaces 68633-09F30.

68633-09F32

1
Out of stock

4

LABEL, WARNING | MODEL K4 E28,E33

68921-09F00

1
Out of stock

4

LABEL,GENERAL W | E28 This part replaces 68366-20B60.

68366-20B61

1
Out of stock

4

LABEL, WARNING | MODEL K5 E28,E33

68921-31G00

1
Out of stock

5

LABEL, AGE16 | MODEL K4

68931-09F00

1
Out of stock

6

LABEL,MANUAL NOTICE | E33 This part replaces 68353-26E02.

68353-26E03

1
Out of stock

7

RIVET

68929-09F00

18
Out of stock

8

WASHER

68928-09F00

18
Out of stock

9

MANUAL, OWNER'S | MODEL K4 E33

99011-38F52-03A

1
Out of stock

9

MANUAL, OWNER'S | MODEL K4 E28

99011-38F52-013

1
Out of stock

9

MANUAL, OWNER'S | MODEL K5 E33

99011-38F53-03A

1
Out of stock

9

MANUAL, OWNER'S | MODEL K5 E28 DRAWING NOT SHOWN

99011-38F53-013

—
Out of stock
