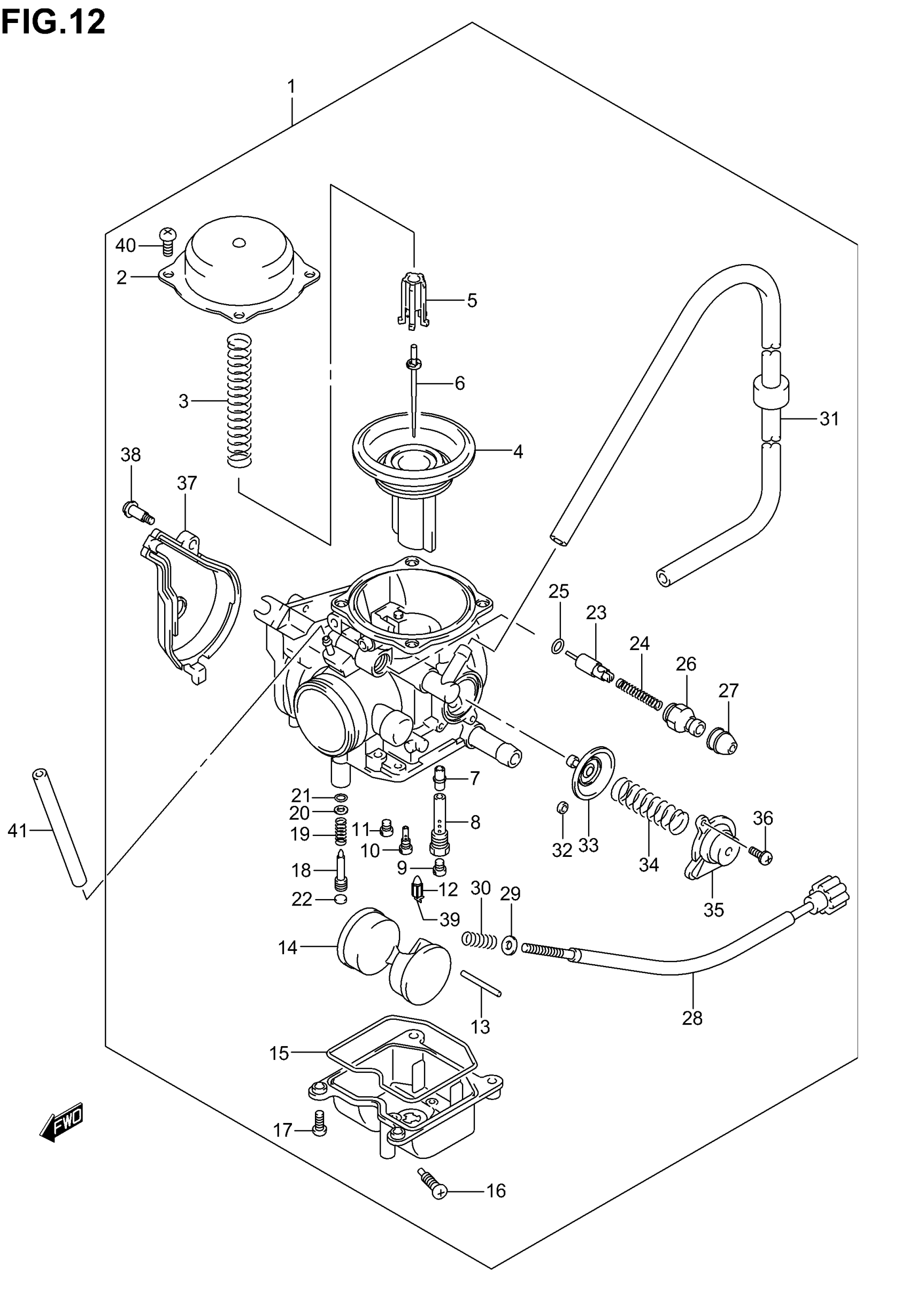

Suzuki LT-A400C (2005) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K3/K4 E3,E28 This part replaces 13200-38F22.

13200-38F23

$471.17

1

CARBURETOR ASSY | MODEL K3/K4 E33 This part replaces 13200-38F12.

13200-38F1V

Unavailable

1

CARBURETOR ASSY | MODEL K5 E28

13200-38F30

Unavailable

1

CARBURETOR ASSY | MODEL K5 E33; Includes Item(s) 2 - 40 This part replaces 13200-38F40.

13200-38F4V

$850.38

2

DIAPHRAGM COVER

13502-38F00

Unavailable

3

SPRING

13503-38F00

$14.45

4

DIAPHRAGM

13501-38F00

$160.10

5

SEAT, SPRING

13382-26E00

$17.32

6

NEEDLE, JET (N425-BZA00)

13383-38F00

$22.25

7

JET, NEEDLE

09494-00869

$30.61

8

HOLDER, NEEDLE JET

13342-38F00

$29.72

9

JET, MAIN (#122)

09491-24032

$30.72

10

JET, PILOT (#38)

09492-38005

$18.68

11

JET, MAIN (#55)

09491-55009

$18.75

12

VALVE ASSY, NEEDLE

13370-38F00

$16.35

13

FLOAT PIN

13254-26E00

$5.00

14

FLOAT ASSY

13250-26E00

$50.72

15

O RING

13258-26E00

$8.15

16

DRAIN SCREW

13247-43E00

$6.14

17

SCREW

13602-26E10

$4.34

18

SCREW, ADJUST

13279-03FA0

$12.85

19

SPRING

13268-26E00

$5.88

20

WASHER

13291-26E00

$2.80

21

O RING

13295-26E00

$3.97

22

CAP | E33

13281-26E00

$6.23

23

VALVE ASSY, STARTER

13410-38F00

$63.22

24

SPRING

13417-03G00

$5.61

25

O RING

13686-03G00

$3.97

26

HOLDER

13418-03G00

$4.98

27

CAP

13681-28E00

$7.38

28

SCREW, STOP

13270-24F00

$98.10

29

WASHER

13273-03G00

$4.05

30

SPRING

13268-35F00

$5.17

31

HOSE

13683-38F00

$44.55

32

U RING This part replaces 13486-15F00.

13486-15F01

$2.55

33

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

$33.52

34

SPRING

13481-15F00

$4.83

35

COVER

13484-15F00

$36.42

36

SCREW

13601-15F10

$4.18

37

COVER

13578-03G00

$42.35

38

SCREW

13601-11F00

$2.80

39

CLIP

13375-26E00

$7.02

40

SCREW

13602-43E00

$2.88

41

HOSE,5X10X600 | L:600!180 This part replaces 09355-50105-600.

44421-13ER0

$9.08
