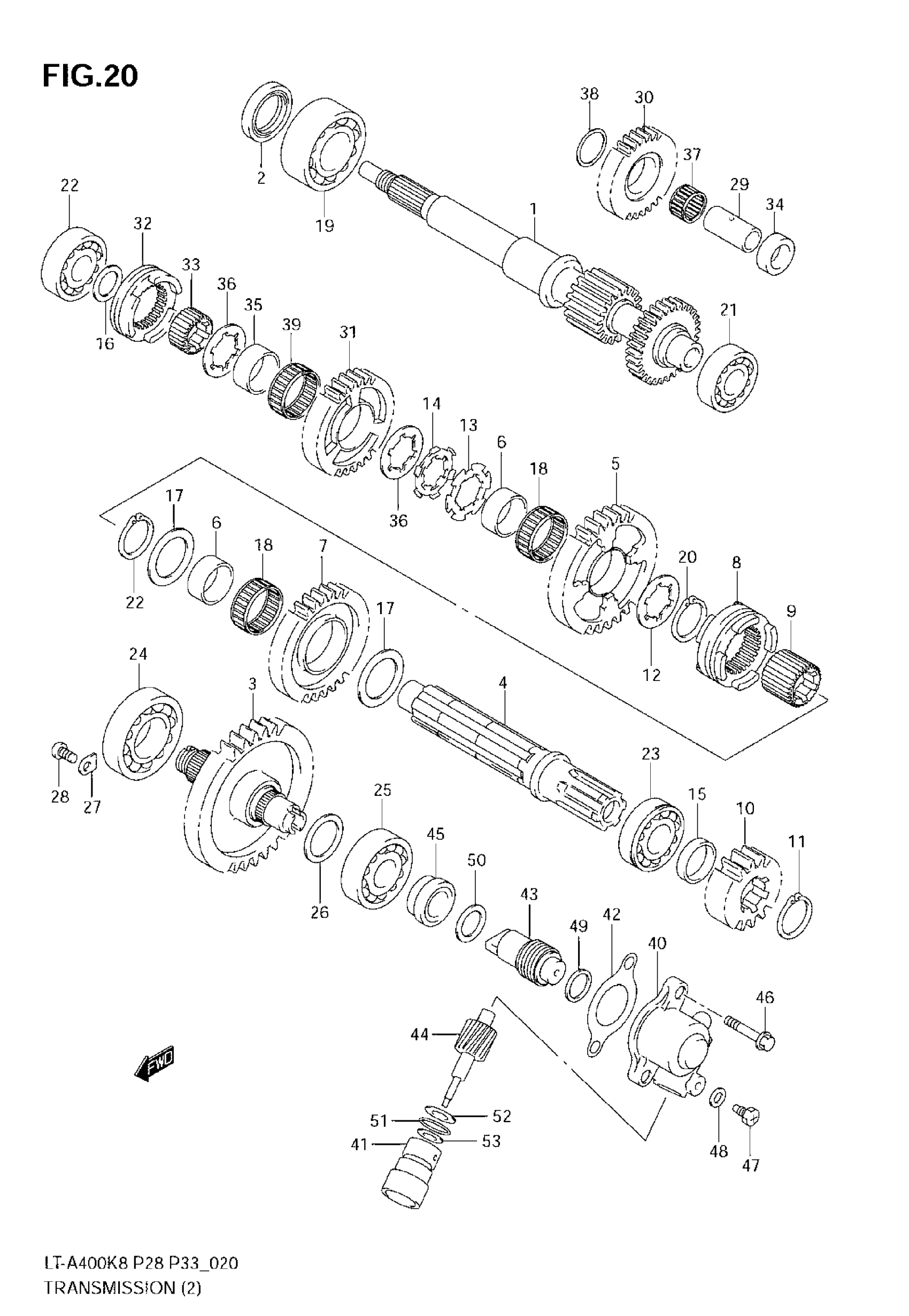

Suzuki LT-A400 (2009) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, DRIVE (NT:24/16)

29111-38F10

Unavailable

2

SEAL, DRIVE SHAFT

12281-87J00

$14.03

3

SHAFT, SUB T/M OUTPUT

29120-27H00

Unavailable

4

SHAFT,SUB T/M COUNTER

29131-27H00

Unavailable

5

GEAR, SUB T/M DRIVEN LOW | NT:40

29311-09F51

$204.23

6

BUSH, SUB T/M DRIVEN

29315-09F51

$31.70

7

GEAR, SUB T/M DRIVEN HIGH | NT:33

29321-09F51

$193.95

8

DOG, SUB T/M SELECT

29331-38F10

$95.17

9

SPACER, SUB T/M SELECT

29332-38F10

Unavailable

10

GEAR, SUB T/M DRIVE NO.2 | NT:19

29411-38F00

$87.95

11

CIRCLIP SUB DRIVE NO.2

08331-3125A

Unavailable

12

WASHER, DRIVEN GEAR LOW

09167-25017

$4.20

13

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

14

WASHER, LOCK

09169-25001

$2.95

15

SPACER (25X30X7)

09180-25097

$11.10

16

WASHER, SUB COUNTER R

09181-20195

$2.68

17

WASHER, DRIVEN GEAR HIGH | 25X40X1.0

09181-25251

$1.26

18

BEARING, SUB T/M GEAR | 30X35X12

09263-30018

$28.45

19

BEARING, DRIVE SHAFT RH

08113-62060

$37.23

20

SNAP RING

09380-25003

$2.80

21

BEARING, DRIVE SHAFT LH | 20X47X14

09262-20069

$21.00

22

BEARING, SUB T/M COUNTER RH | 20X52X15

09262-20073

$21.00

23

BEARING, SUB T/M COUNTER LH | 25X52X15

09262-25003

$22.40

24

BEARING, SUB T/M OUTPUT | 35X72X17

09262-35038

$42.19

25

BEARING, SUB T/M OUTPUT LH | 20X52X15

09262-20073

$21.00

26

WASHER, SUB T/M DRIVEN | 20X34X1

09181-20251

$2.77

27

RETAINER, BEARING

24741-21A00

$2.80

28

SCREW, RETAINER (6X12)

09125-06110

$2.13

29

SHAFT,REVERSE IDLE

24551-38F00

Unavailable

30

GEAR, REVERSE IDLE (NT:28)

24561-27H00

Unavailable

31

GEAR, REVERSE DRIVEN (NT:34)

24571-27H00

Unavailable

32

DOG,REVERSE GR SELECT SLIDING

24581-27H00

Unavailable

33

SPACER, REVERSE SLIDING

24582-38F10

Unavailable

34

SPACER,REVERSE IDLE GEAR

24562-27H00

Unavailable

35

BUSH, REVERSE DRIVEN GEAR

29315-09F51

$31.70

36

WASHER, REVERSE DRIVEN GEAR

09167-25017

$4.20

37

BEARING, REVERSE IDLE GEAR

09263-20060

$22.53

38

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

$2.68

39

BEARING, REVERSE DRIVEN GEAR | 30X35X12.8

09263-30018

$28.45

40

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

41

SLEEVE

26442-19B00

$45.52

42

GASKET

26451-19B12

$4.32

43

GEAR, DRIVE (NT:9)

26461-38F00

Unavailable

44

GEAR, DRIVE (NT:15)

26471-38F00

$47.27

45

SPACER

26481-19B00

Unavailable

46

BOLT (6X20)

09103-06201

$2.54

47

BOLT (6X10)

09135-06501

$2.80

48

WASHER (6.2X11X1.2)

09168-06004

$1.43

49

WASHER (15X20X1.0)

09181-15111

$3.22

50

WASHER (17X24X1.0)

09181-17139

$2.81

51

O RING (D:1.9,ID:16.6)

09280-17004

$3.98

52

SEAL (5X12X8)

09283-05001

$12.58

53

WASHER

08211-08151

$1.42
