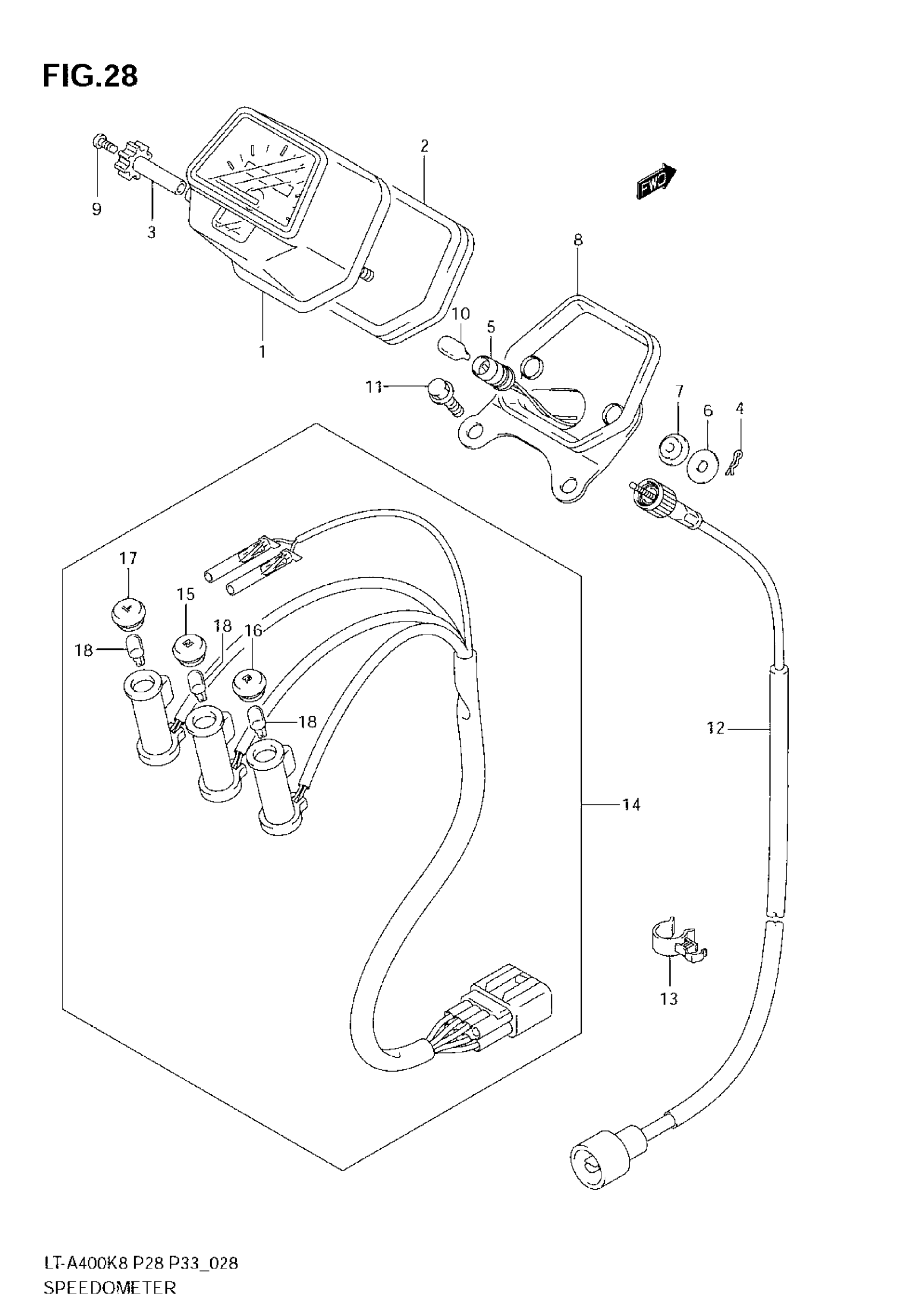

Suzuki LT-A400 (2009) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (KILO) | E28 This part replaces 34110-38F40.

34110-38F20

Unavailable

1

SPEEDOMTR ASSY( This part replaces 34110-38F50.

34100-38F50

Unavailable

2

DAMPER

34114-38F40

$94.58

3

KNOB

34124-38F40

$10.20

4

SNAP PIN

34136-38F40

Unavailable

5

CORD ASSY

34173-38F40

Unavailable

6

WASHER (5.2X18X1.2) This part replaces 34181-38F40.

34181-09F00

$3.25

7

DAMPER

34188-38F40

Unavailable

8

BRACKET ASSY

34950-38F40

$108.90

9

SCREW (2X6)

09139-02003

$1.43

10

BULB (12V,1.7W)

09471-12165

$4.48

11

BOLT, SPEEDOMETER

01550-0616A

$1.97

12

CABLE ASSY,SPEE This part replaces 34910-38F00.

34910-38F02

$47.41

13

CLIP

09408-00198

Unavailable

14

LAMP ASSY, PILOT | Includes Item(s) 15 - 18

36380-27H00

$40.22

15

LENS, NEUTRAL (GREEN)

36321-45G00

$11.40

16

LENS, REVERSE (RED)

36329-27H00

$29.85

17

LENS, OIL TEMP (RED)

36361-27H00

Unavailable

18

BULB (12V,3.4W)

09471-12028

$1.98
