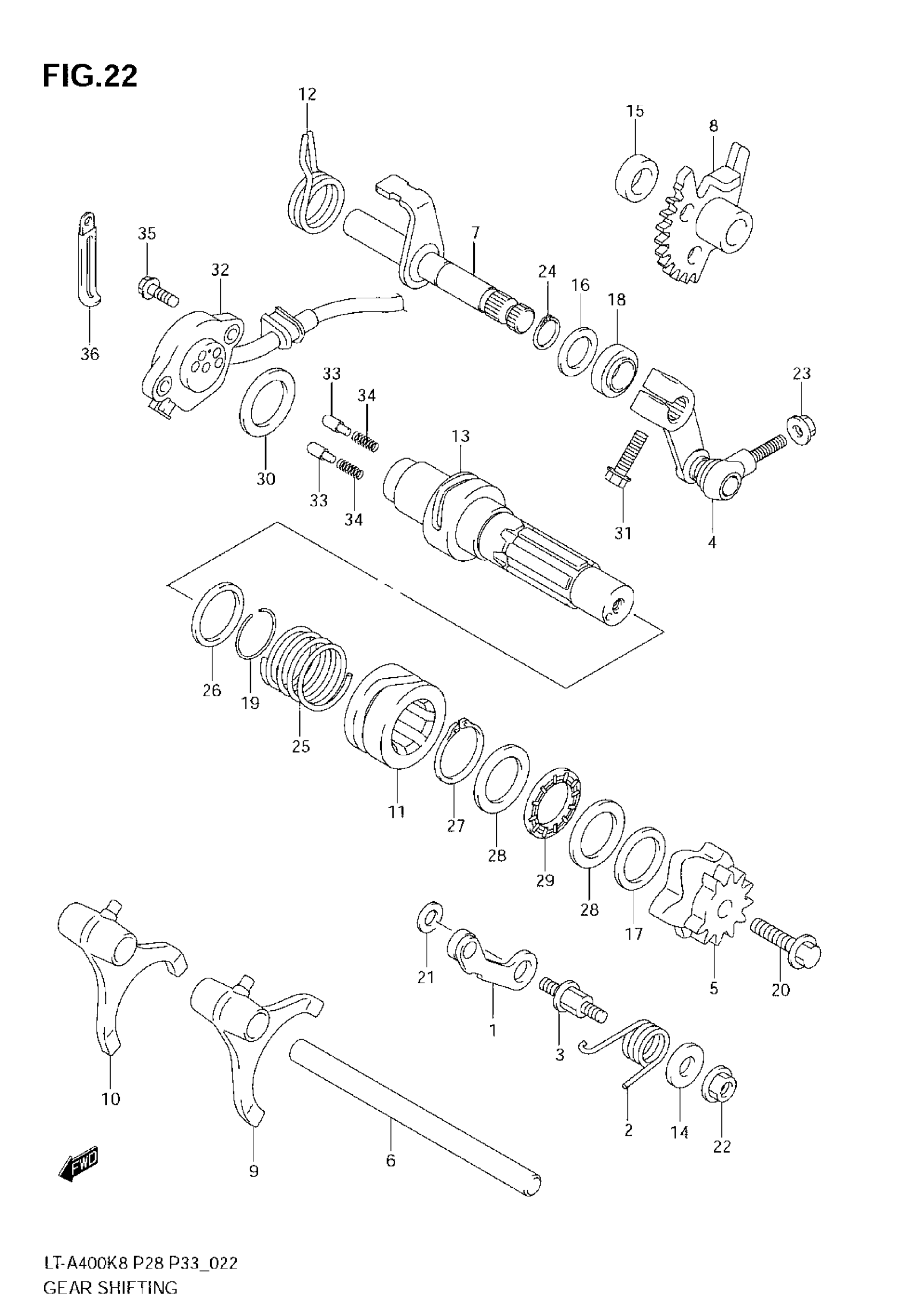

Suzuki LT-A400 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

STOPPER, SHIFT CAM

25350-26D01

$18.30

2

SPRING, GEAR SHIFT CAM

25355-38F00

$5.52

3

SUPPORT, CAM STOPPER

25356-12C00

$19.60

4

ARM, SELECT

25360-11H10

$90.32

5

PLATE, GEAR SHIFT CAM

25381-38F10

Unavailable

6

SHAFT, GEAR SHIFT FORK

25411-18900

$26.03

7

SHAFT,T/M GEAR SHIFT This part replaces 25510-27H00.

25510-27H01

$46.43

8

GEAR, SUB T/M SHAFT

25540-27H00

Unavailable

9

FORK, GEAR SHIFT

29511-44D00

$101.83

10

FORK, SHIFT REVERSE

29511-44D00

$101.83

11

CAM, GEAR SHIFT

29611-27H00

Unavailable

12

SPRING, SHIFT ARM RETURN

29613-31G00

$7.95

13

SHAFT,SUB T/M GEAR SHIFT

29620-27H01

Unavailable

14

WASHER, SPRING STOPPER | 6.5X16X2.30

09160-06022

Unavailable

15

SPACER, SUB T/M GEAR

09180-12100

$5.82

16

WASHER, GEAR SHIFT SHAFT | 12X20X1.0

09181-12167

$2.24

17

WASHER, SHIFT CAM PLATE | 20X28X0.5

09181-20158

$3.38

18

OIL SEAL (12X22X9) | 12X22X9.0

09285-12006

$5.70

19

C RING, T/M CAM STOP

09380-25012

$2.68

20

BOLT, GEAR CAM PLATE

01550-0625B

$2.43

21

WASHER, CAM STOPPER

08211-06141

$1.61

22

NUT, SPRING STOPPER

08316-1006B

$2.50

23

NUT GEAR SHIFT LINK ROD

08310-0006B

$2.37

24

CIRCLIP, GEAR SHIFT SHAFT

08331-3112A

$1.77

25

SPRING, SUB T/M SHIFT CAM

29612-38F00

Unavailable

26

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

$2.80

27

CIRCLIP, SHIFT CAM SPRING

08331-3125A

Unavailable

28

WASHER, SHIFT SHAFT | 20X34X1.0

09181-20251

$2.77

29

BEARING, SUB T/M | 20X35X2

09263-20014

Unavailable

30

WASHER, SHIFT SHAFT

09181-25167

$2.85

31

BOLT, SHIFT LEVER

01550-0620B

$2.38

32

BASE ASSY,GEAR SHIFT TERM

37720-27H00

$159.88

33

CONTACT

09209-05011

$2.02

34

SPRING

09440-04010

$1.52

35

BOLT

07120-0516A

$1.72

36

CLAMP (L:45)

09404-06429

$1.82
