2007 Suzuki LT-A400 Right Rear Wheel Diagram

← All diagrams

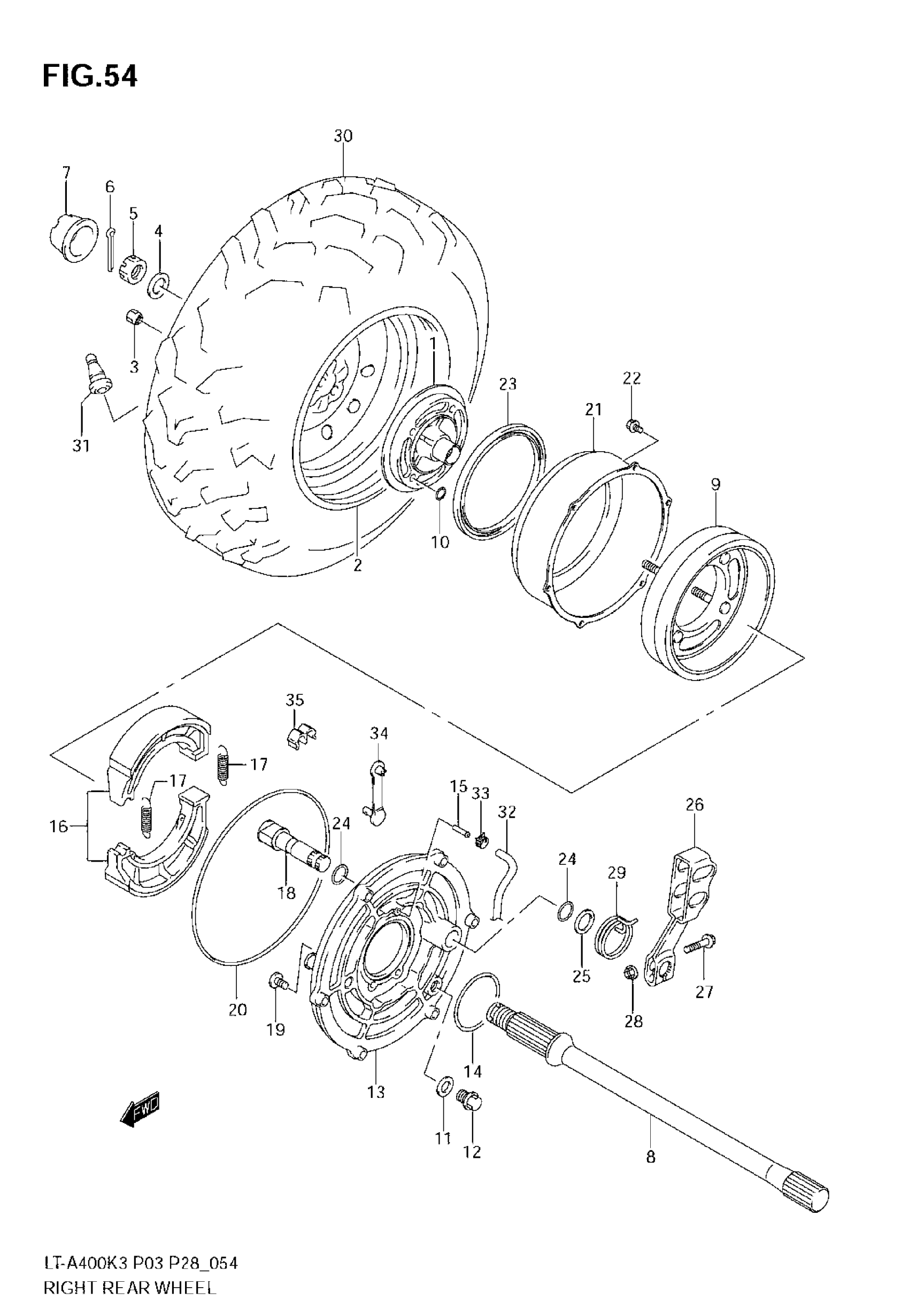

Find the part on the Right Rear Wheel diagram for your 2007 Suzuki LT-A400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A400 Right Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR,R

64111-38F32

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) (BLACK) | MODEL K3/K4/K5 This part replaces 65310-38F00-YL8.

65310-38F40-291

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) (BLACK) | MODEL K6/K7 This part replaces 65310-38F20-YL8.

65310-38F40-291

1
Out of stock

3

NUT

09140-10021

4
Out of stock

4

WASHER | MODEL K3/K4/K5

09164-18004

1
Out of stock

4

WASHER,HUB | MODEL K6/K7

64723-38F00

1
Out of stock

5

1

$8.27

In stock

5

NUT, HUB | F.NO.5SAAK45K3X102001%

09141-18010

1
Out of stock

5

NUT | MODEL K6/K7 This part replaces 09141-20006.

09141-20008

1
Out of stock

6

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

AXLE, REAR RH | MODEL K3/K4/K5

64711-38F10

—
Out of stock

8

AXLE,REAR,R | MODEL K6/K7

64711-38F20

1
Out of stock

9

DRUM, BRAKE

64120-38F00

1
Out of stock

10

O RING (ID:9.8,D:1.90)

09280-10016

4
Out of stock

11

WASHER, DRAIN PLUG

09161-10007

1
Out of stock

12

PLUG, DRAIN

09247-10008

1
Out of stock

13

PANEL, BRAKE ANCHOR

64210-38F00

1
Out of stock

14

O-RING This part replaces 09280-63001.

09280-63005

1
Out of stock

15

UNION, PANEL

09364-04004

1
Out of stock

16

SHOE SET, BRAKE

64400-38830

1
Out of stock

17

SPRING, SHOE

55420-30000

2
Out of stock

18

CAM,REAR BRAKE

64440-09F00

1
Out of stock

19

BOLT, PANEL (8X18)

09106-08161

4
Out of stock

20

O RING, PANEL

09280-00038

1
Out of stock

21

COVER, REAR BRAKE

64123-38F00

1
Out of stock

22

BOLT This part replaces 01547-06123.

01547-0612B

6
Out of stock

23

DUST SEAL, DRUM COVER

64124-38F00

1
Out of stock

24

O RING, CAM (15.9X19.7X2)

64443-18A00

2
Out of stock

25

WASHER

09160-16033

1
Out of stock

26

LEVER, BRAKE CAM

64451-09F00

1
Out of stock

27

BOLT This part replaces 01550-06353.

01550-0635A

1
Out of stock

28

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

29

SPRING, CAM LEVER

64484-38F00

1
Out of stock

30

TIRE,REAR | MODEL K3 This part replaces 65110-38F00.

65110-03G30

1
Out of stock

30

TIRE,REAR | MODEL K4/K5 This part replaces 65110-38F20.

65110-03G30

1
Out of stock

30

TIRE,REAR | MODEL K6/K7 This part replaces 65110-38F21.

65110-03G30

1
Out of stock

30

TIRE,REAR (AT25X10-12) | TYPE MAXXIS This part replaces 65110-38FC0.

65110-31G30

1
Out of stock

31

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

1
Out of stock

32

HOSE(4X7X2000) This part replaces 09352-40703-00B.

09352-40706-00B

1
Out of stock

33

CLIP, HOSE

09401-06405

1
Out of stock

34

CLAMP

09407-03401

2
Out of stock

35

CLIP, BRTHR HOSE & CABLE

09408-00200

1
Out of stock
