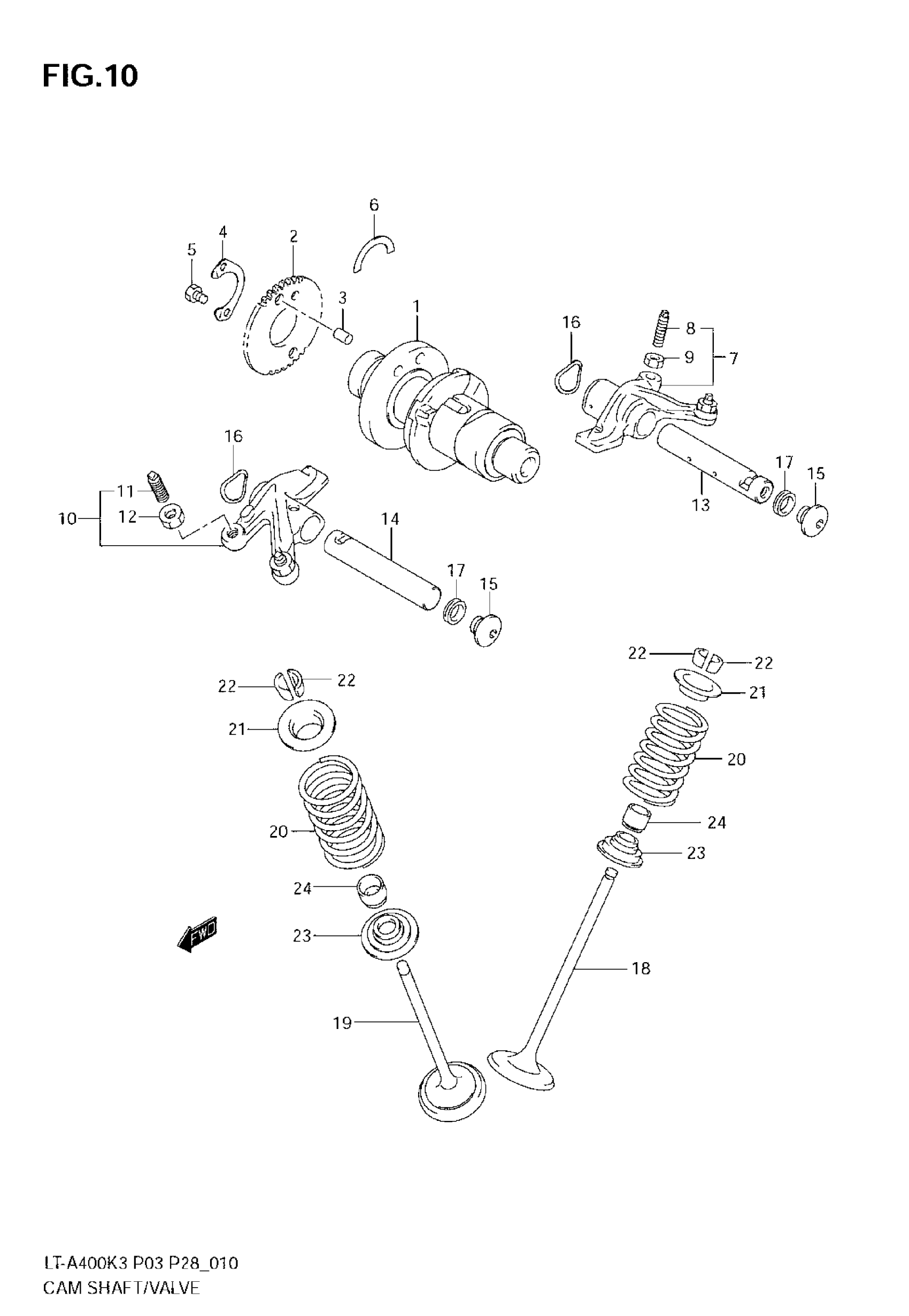

Suzuki LT-A400 (2007) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT | MODEL K3 This part replaces 12710-38F00.

12710-27H00

$522.75

1

CAMSHAFT | MODEL K4/K5/K6/K7 This part replaces 12710-38F10.

12710-27H00

$522.75

2

SPROCKET, CAM DRIVE

12741-38F00

$53.48

3

PIN

09261-05005

$1.43

4

WASHER,SPROCKET

12747-44B00

$2.80

5

BOLT (6X10.5)

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9

12840-15G00

$85.00

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.80

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-14D50

$92.27

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.80

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$34.90

14

SHAFT, ROCKER ARM EXHAUST

12871-14D50

$31.90

15

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

16

WASHER

09164-12018

$1.41

17

GASKET

09168-14002

$2.83

18

VALVE,INTAKE

12911-14D10

$34.90

19

VALVE,EXHAUST

12912-14D01

$55.29

20

SPRING VALVE

12921-03G00

$11.33

21

RETAINER,VALVE SPRING

12931-27A20

$9.17

22

COTTER, VALVE

12932-27A00

$2.20

23

SEAT,VALVE SPRING

12933-81400

$4.86

24

OIL SEAL

09289-05011

$5.70
