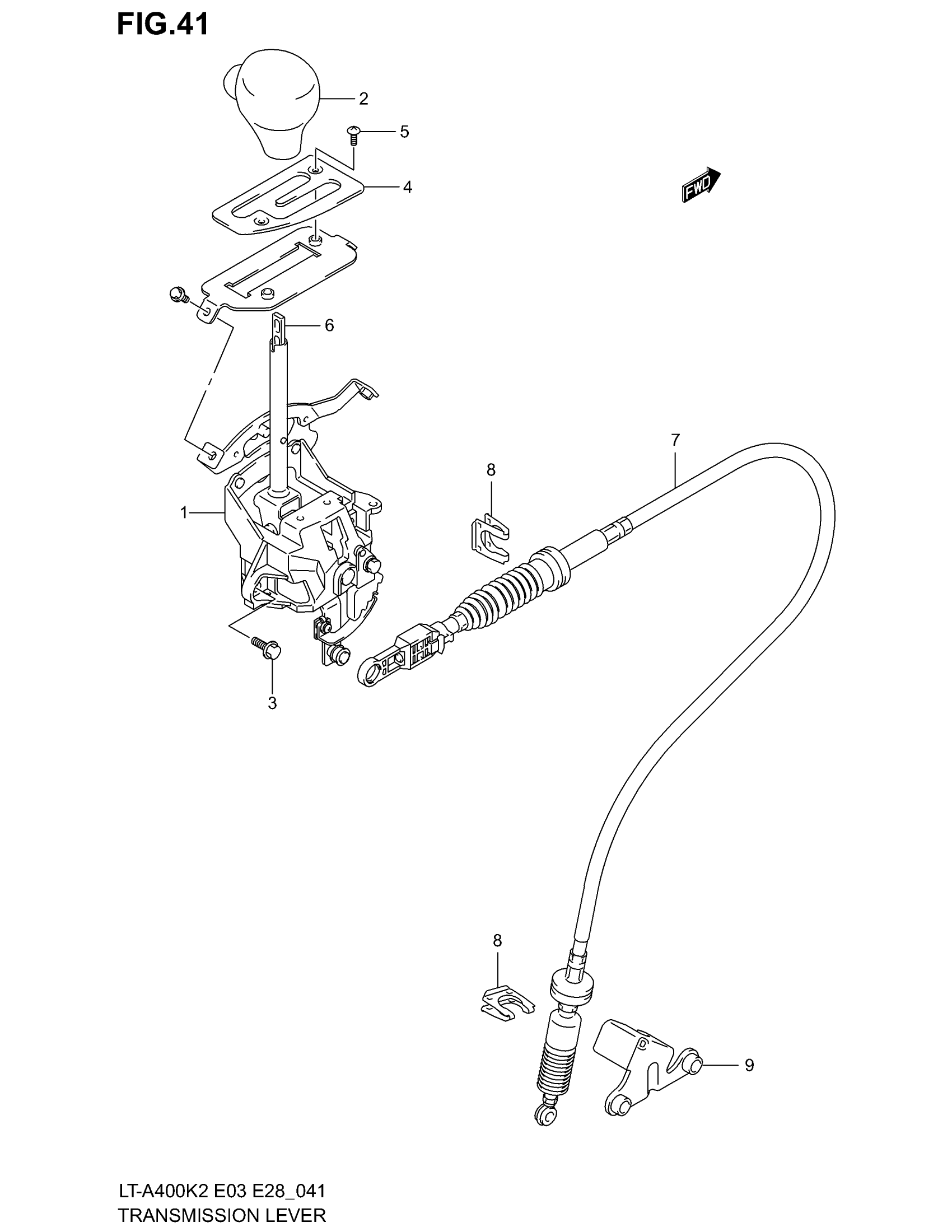

Suzuki LT-A400 (2002) SHIFT LEVER Diagram

#

Description

Price

1

LEVER ASSY, TRANSMISSION

57800-38F00

$566.92

2

KNOB, T/M LEVER This part replaces 57830-38F10.

57830-38F11

$43.20

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

PLATE, T/M INDICATOR

57961-38F00

Unavailable

5

SCREW

09139-05032

$2.00

6

ROD, DETENT

57863-38F00

$8.14

7

CABLE, T/M GEAR SHIFT This part replaces 58680-38F00.

58680-38F40

$127.07

8

CLIP

28375-78A00

$4.86

9

BRACKET, T/M CABLE This part replaces 58620-38F00.

58620-38F40

$45.53
