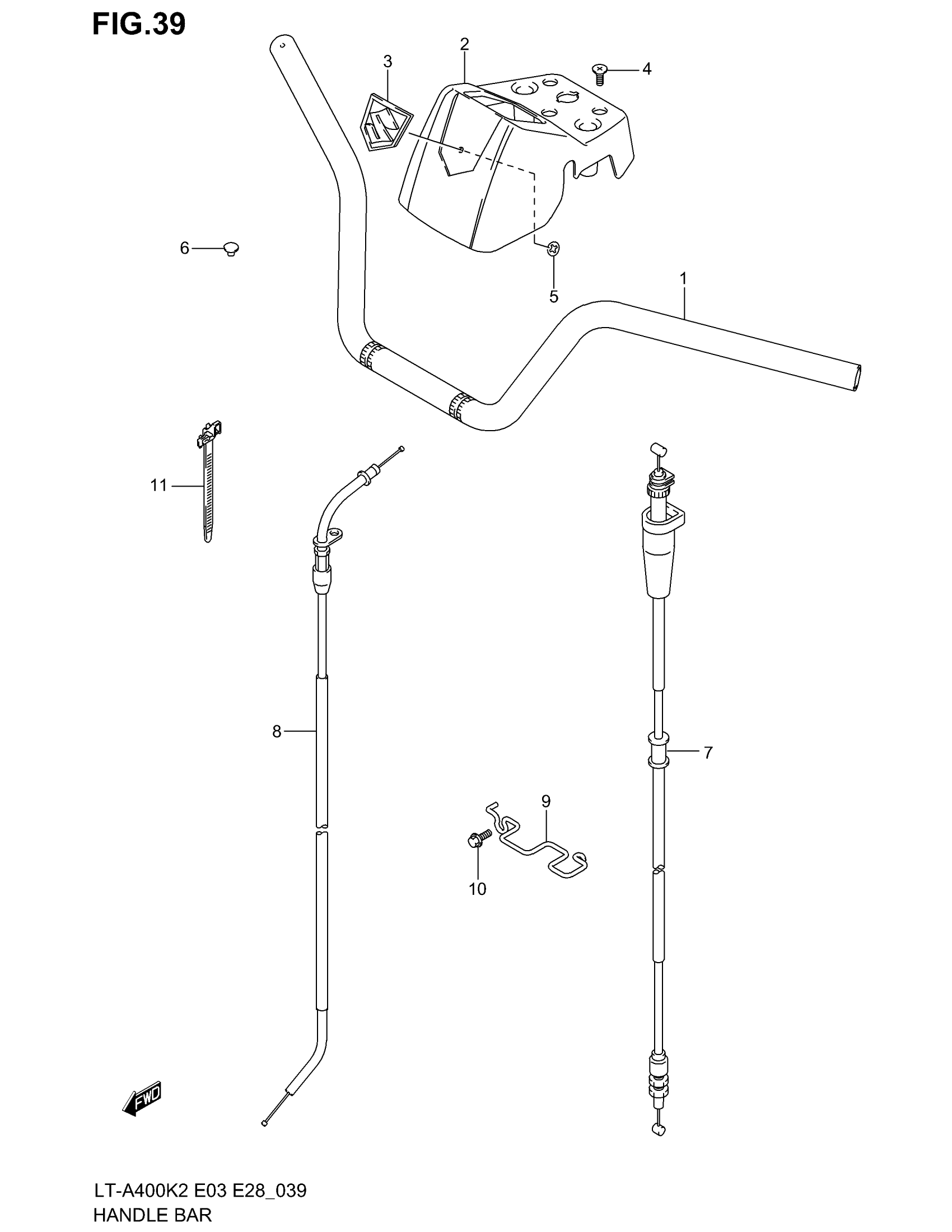

Suzuki LT-A400 (2002) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR

56111-38F00

Unavailable

2

COVER, STEERING This part replaces 56171-38F00.

56171-38FB0

$17.82

3

EMBLEM

68151-38F00

$40.32

4

SCREW, COVER

09139-06072

$3.02

5

NUT This part replaces 09148-05006.

09148-05012

$1.77

6

CAP

09250-05007

$1.42

7

CABLE ASSY, THROTTLE

58300-38F00

$49.63

8

CABLE, STARTER

58410-38F00

$55.32

9

GUIDE, CABLE

58641-38F00

Unavailable

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

CLAMP

09407-12407

Unavailable
