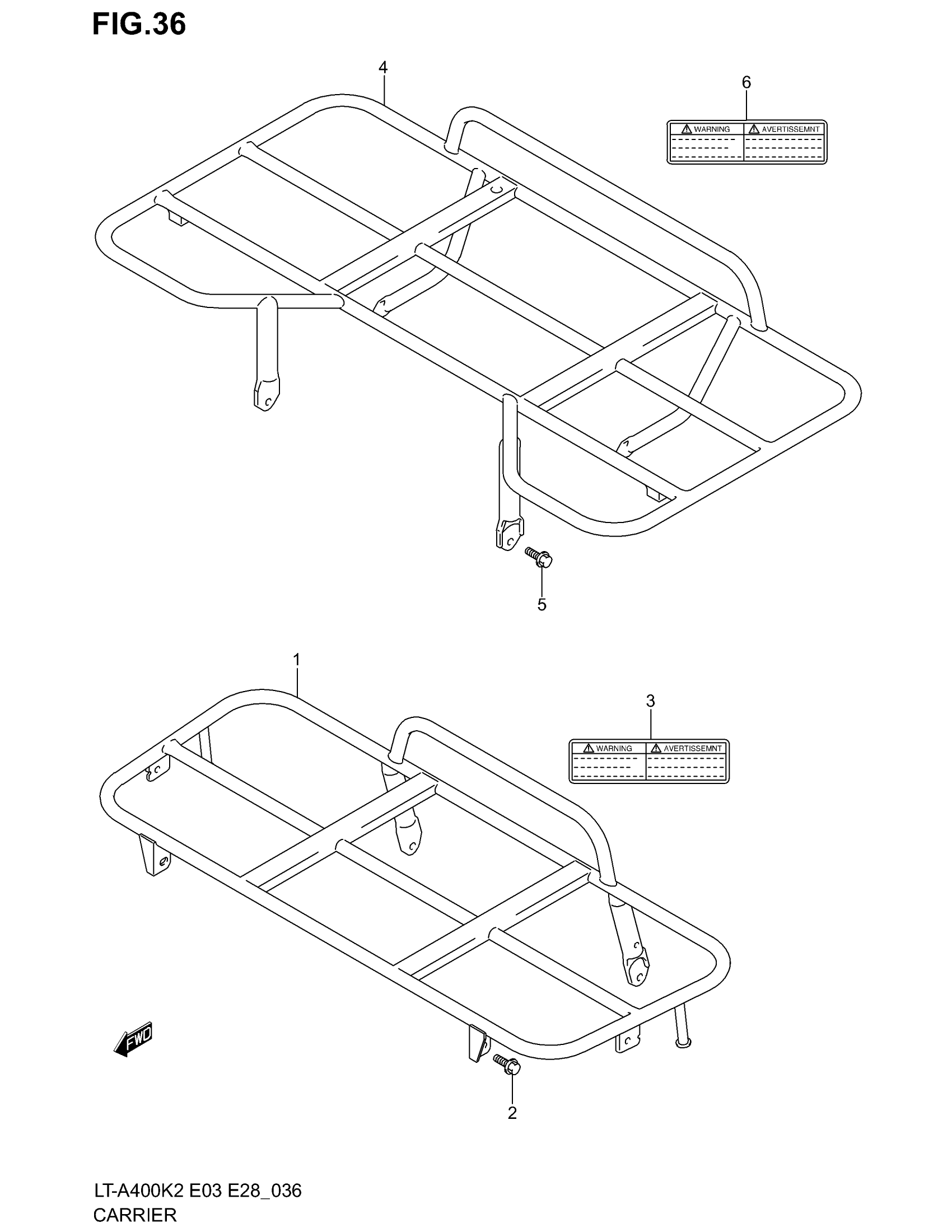

Suzuki LT-A400 (2002) CARRIER Diagram

#

Description

Price

1

CARRIER, FRONT (BLACK) This part replaces 46410-38F00.

46400-38FA0-019

Unavailable

1

CARRIER, FRONT | E28

46410-38F10

Unavailable

2

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

3

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

$6.12

3

LABEL,WARNING F | E28 This part replaces 68381-19B20.

68381-19B21

$9.07

4

CARRIER,COMP This part replaces 46310-38F00.

46310-38FV2

$519.50

4

CARRIER,COMP | E28 This part replaces 46310-38F10.

46310-38FV2

$519.50

5

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

6

LABEL,REAR CARR This part replaces 68391-19B00.

68391-19B01

$6.32

6

LABEL, REAR CARRIER (FRENCH) | E28

68391-19B20

Unavailable
