1998 Suzuki LT-4WDXW Footrest Diagram

← All diagrams

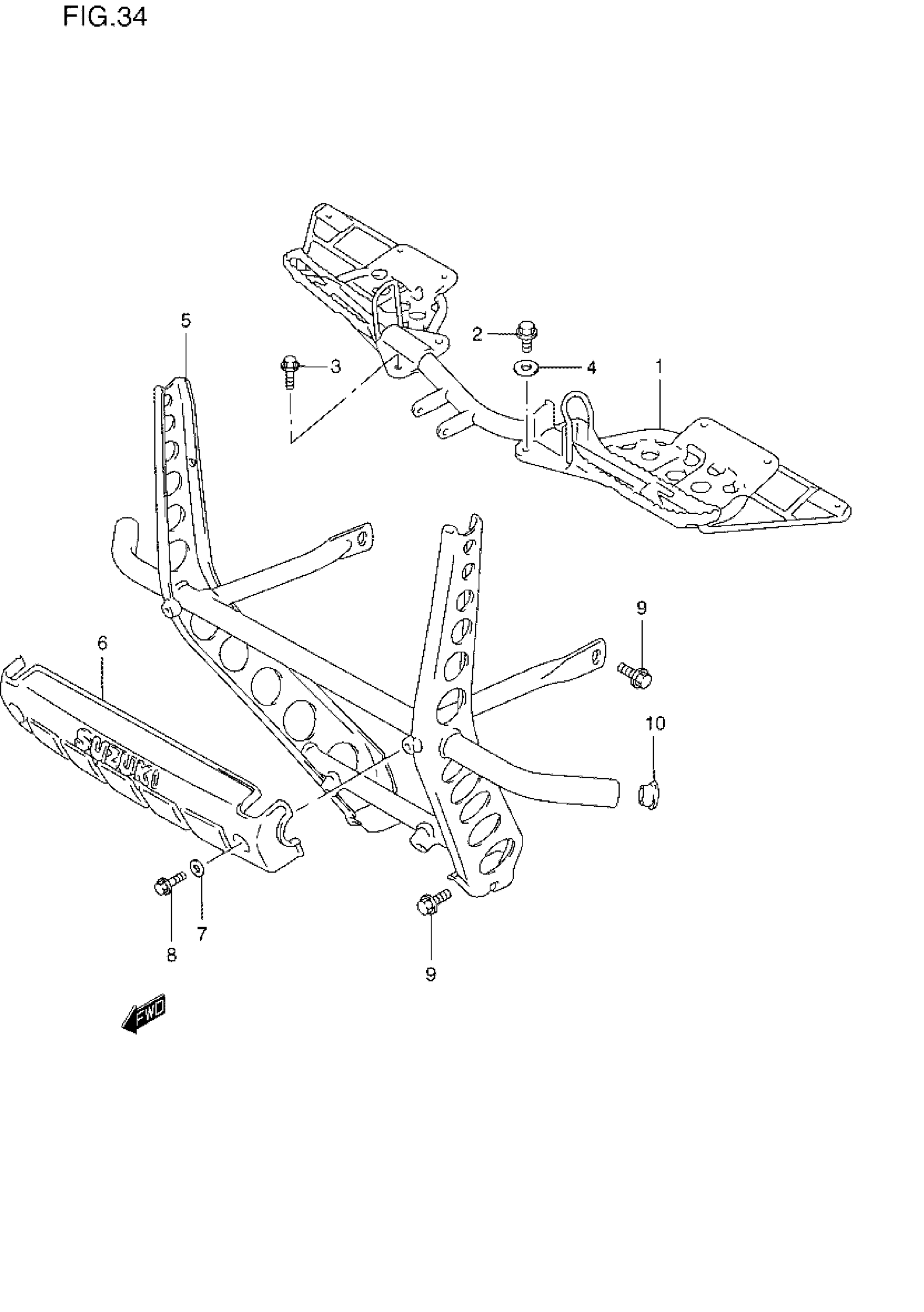

Find the part on the Footrest diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, FRONT FOOTREST This part replaces 43510-39D50.

43510-39DV0

1
Out of stock

2

BOLT

09103-08171

3
Out of stock

3

BOLT, FRONT RH

09103-08259

1
Out of stock

4

WASHER

09160-08501

4
Out of stock

5

GRIP, FRONT

43990-39D50

1
Out of stock

6

RUBBER

43976-19B00

1
Out of stock

7

2

$2.58

In stock

8

SCREW This part replaces 02162-05123.

02162-0512A

2
Out of stock

9

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

10

CAP

09250-18003

2
Out of stock
← Carrier Frame →
