1998 Suzuki LT-4WDXW Clutch Diagram

← All diagrams

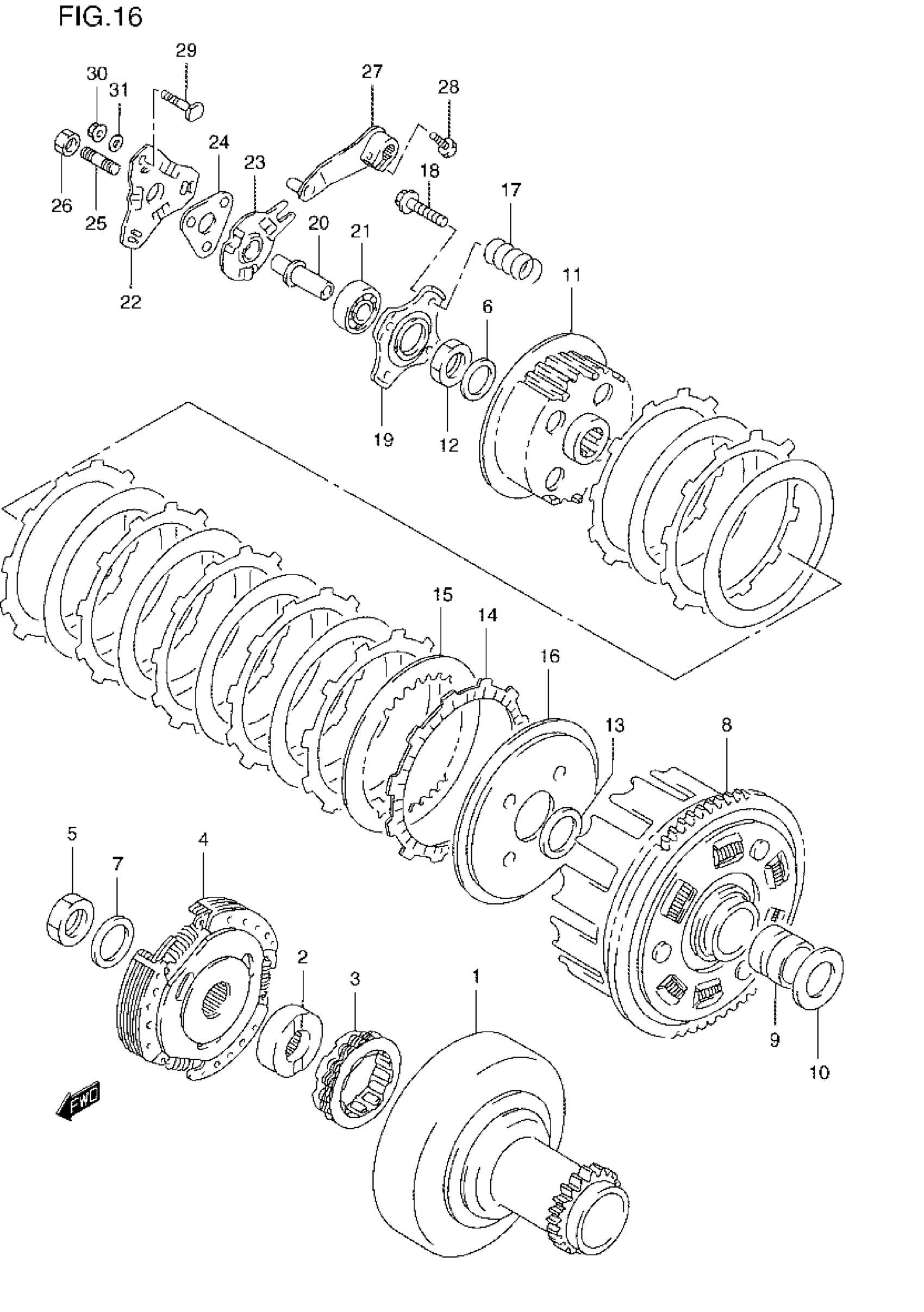

Find the part on the Clutch diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (NT:21) This part replaces 21110-19B11.

21110-19B12

1
Out of stock

2

RACE, INNER | MODEL T/V This part replaces 21631-19B10.

21631-19B11

1
Out of stock

2

RACE, INNER | MODEL W

21631-19B11

1
Out of stock

3

CLUTCH, ONE WAY

21273-19B10

1
Out of stock

4

CLUTCH ASSY,SHO This part replaces 21500-19B70.

21500-19B71

1
Out of stock

5

NUT

09140-18012

1
Out of stock

6

LOCK WASHER (ID:20.1)

09164-20007

1
Out of stock

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

1
Out of stock

8

GEAR ASSY, PRIMARY (NT:63)

21200-19B73

1
Out of stock

9

SPACER (22X28X23)

09180-22035

1
Out of stock

10

WASHER (22X36X1.0) | MODEL T This part replaces 08211-22361.

09181-22251

1
Out of stock

10

WASHER (22X36X1.0) | MODEL V/W

09181-22251

1
Out of stock

11

HUB, CLUTCH

21410-19B70

1
Out of stock

12

NUT

09140-20001

1
Out of stock

13

WASHER

08211-20323

1
Out of stock

14

PLATE, DRIVE

21441-22A01

8
Out of stock

15

PLATE, DRIVEN

21451-01B40

7
Out of stock

16

DISC, PRESSURE

21462-19B70

1
Out of stock

17

SPRING

09440-19017

4
Out of stock

18

BOLT This part replaces 01550-06203.

01550-0620A

4
Out of stock

19

PLATE, RELEASE

21465-24500

1
Out of stock

20

PIECE, PUSH

23121-19B00

1
Out of stock

21

BEARING (12X28X8)

09262-12001

1
Out of stock

22

GUIDE, BALL OUTER

23231-19B10

1
Out of stock

23

GUIDE, BALL INNER

23211-24201

1
Out of stock

24

BALL, RELEASE

23250-31003

1
Out of stock

25

SCREW, ADJUSTER

09134-08009

1
Out of stock

26

NUT, ADJUSTER

09140-08019

1
Out of stock

27

ARM, RELEASE

23220-24500

1
Out of stock

28

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

29

BOLT

09119-06068

3
Out of stock

30

NUT This part replaces 08313-20063.

08313-2006A

3
Out of stock

31

SEAL, BOLT

09168-06023

3
Out of stock
