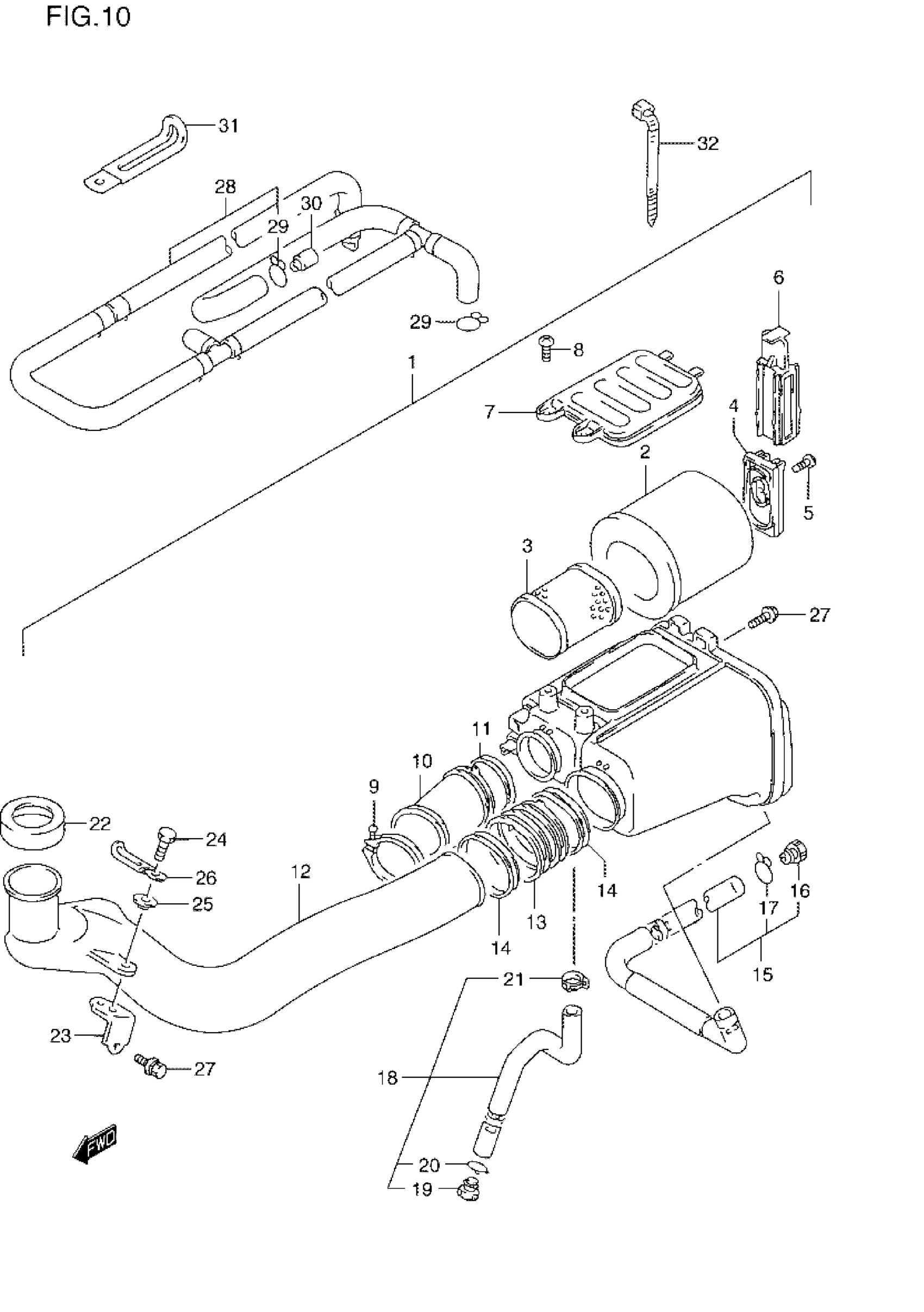

Suzuki LT-4WDXW (1998) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 26 This part replaces 13700-39D10.

13700-39D11

Unavailable

2

FILTER

13781-19B00

$25.11

3

HOLDER

13810-39D00

$23.33

4

GUIDE, SLIDER

13797-19B00

$3.41

5

SCREW This part replaces 02142-05163.

02142-0516A

$1.46

6

SLIDER

13798-33400

$9.84

7

CAP

13750-19B00

$15.44

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.41

9

CLAMP

09402-58208

$4.99

10

TUBE,OUTLET This part replaces 13881-19B80.

13881-19B81

$14.45

11

CLAMP This part replaces 09402-62203.

09402-62208

$6.21

12

TUBE, INLET This part replaces 13891-19B11.

13891-19B12

$112.88

13

JOINT

13889-19B01

$13.97

14

CLAMP

13826-19B00

$7.85

15

TUBE ASSY, DRAIN

13870-19B80

Unavailable

16

PLUG, DRAIN

13877-00190

$6.00

17

CLIP

09401-14301

$2.17

18

TUBE ASSY,DRAIN This part replaces 13870-39D00.

13870-39D01

Unavailable

19

PLUG, DRAIN

13877-00190

$6.00

20

CLIP

09401-14301

$2.17

21

CLIP | MODEL T/V This part replaces 09401-14402.

09401-14404

$2.38

21

CLIP | MODEL W

09401-14404

$2.38

22

CAP, INLET

13892-19B00

$15.70

23

BRACKET

13761-19B00

$7.22

24

BOLT This part replaces 01500-06163.

01500-0616A

$1.82

25

SPACER

13838-02B00

$3.41

26

CLAMP

09404-06435

$4.00

27

BOLT This part replaces 01580-06123.

01580-0612A

$2.42

28

TUBE ASSY,BREAT | Includes Item(s) 29 This part replaces 13850-19B81.

13850-19B82

$135.05

29

CLIP

09401-14301

$2.17

30

CHECK VALVE

13860-19B80

Unavailable

31

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

32

CLAMP, DRAIN TUBE

09407-14403

$2.31
