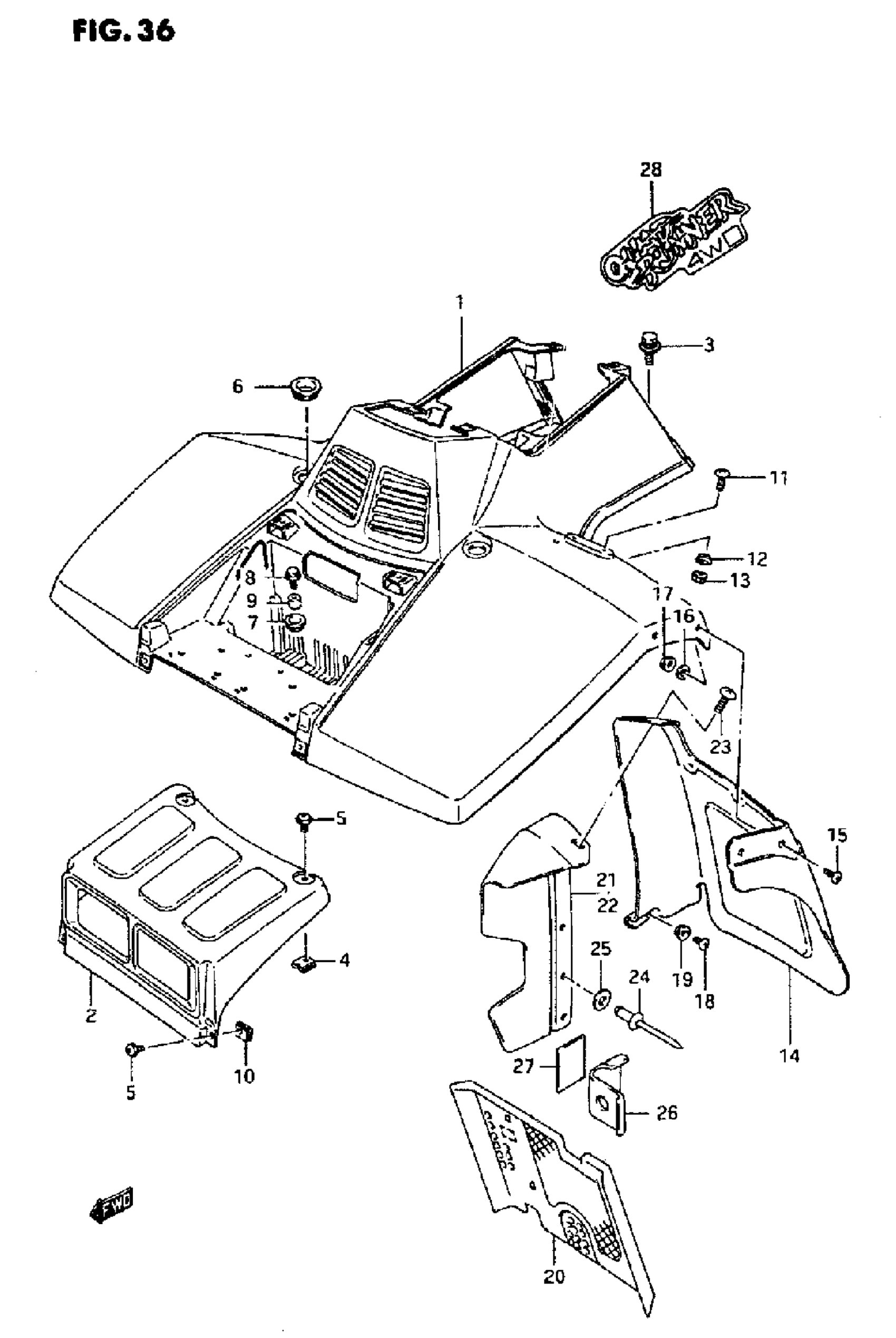

Find the part on the Front Fender diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WDX Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (GREEN)

53111-19B00-1AT

1
Out of stock

2

FENDER, CENTER

53118-19B00

1
Out of stock

3

4

$2.92

In stock

4

NUT

53141-19A00

2
Out of stock

5

SCREW This part replaces 09136-06062.

09136-06017

4
Out of stock

6

GROMMET This part replaces 09308-25003.

09308-25005

2
Out of stock

7

CUSHION, FRONT FENDER FRONT

09320-11008

2
Out of stock

8

2

$2.64

In stock

9

SPACER

09180-06120

2
Out of stock

10

NUT

53141-19A00

2
Out of stock

11

SCREW This part replaces 02142-06163.

02142-0616A

4
Out of stock

12

WASHER

09169-06016

4
Out of stock

13

NUT

09159-06078

4
Out of stock

14

MD FLAP, FENDER RH

53311-19B05

1
Out of stock

14

MD FLAP, FENDER LH

53312-19B05

1
Out of stock

15

SCREW

09139-05038

10
Out of stock

16

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

12
Out of stock

17

NUT This part replaces 09159-05026.

09159-05043

12
Out of stock

18

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

19

WASHER, INNER

09169-06010

2
Out of stock

20

GUARD, MUFFLER FRONT

53310-20B12

1

$103.77

In stock

21

MD FLAP, INNER RH

53411-19B01

1
Out of stock

22

MD FLAP, INNER LH

53421-19B01

1
Out of stock

23

SCREW

09139-05037

2

$2.23

In stock

24

RIVET This part replaces 09229-03023.

09229-03023-XC0

8
Out of stock

25

WASHER

09160-03008

16
Out of stock

26

PLATE, INNER MUD FLAP

53421-20B00

2
Out of stock

27

CUSHION,FR This part replaces 53145-19C00.

46312-31D11

2
Out of stock

28

EMBLEM. FRONT FENDER

68151-19BD0-G2G

2
Out of stock
