1997 Suzuki LT-4WDX Front Break Hose Diagram

← All diagrams

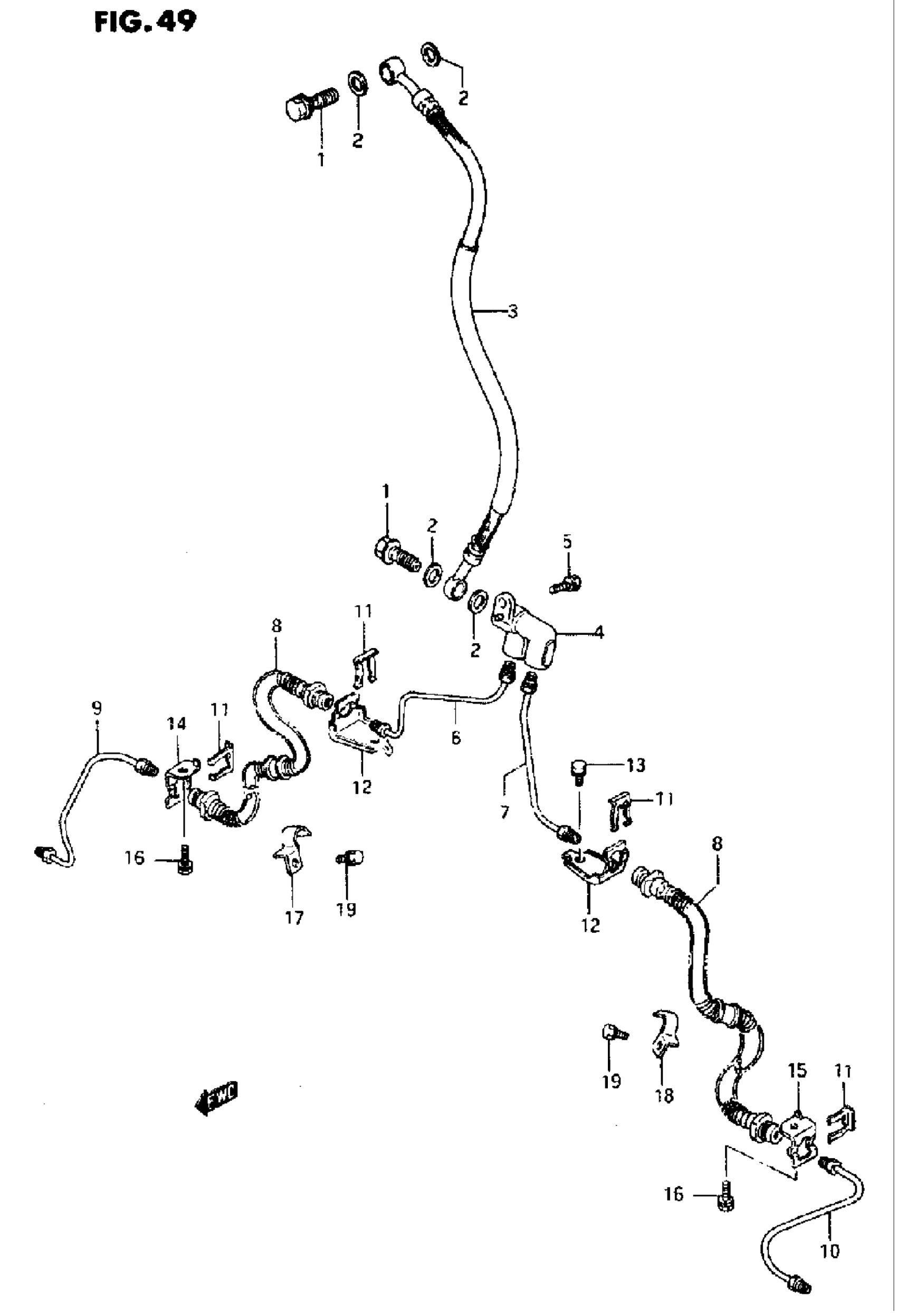

Find the part on the Front Break Hose diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WDX Front Break Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$6.33

In stock

2

WASHER (10X15X1.5)

09161-10009

4
Out of stock

3

HOSE This part replaces 59480-19B01.

59480-19B03

1
Out of stock

4

1

$60.18

In stock

5

BOLT This part replaces 01570-06163.

01570-0616A

1
Out of stock

6

PIPE, BRAKE NO.1 RH

59250-19B00

1

$14.00

In stock

7

PIPE, BRAKE NO.1 LH

59450-19B00

1
Out of stock

8

HOSE,FR BRAKE N This part replaces 59240-19B02.

59240-19B03

2
Out of stock

9

PIPE, BRAKE NO.2 RH

59250-19B10

1
Out of stock

10

PIPE, BRAKE NO.2 LH

59450-19B10

1
Out of stock

11

4

$2.83

In stock

12

GUIDE., HOSE

59268-19B00

2
Out of stock

13

BOLT This part replaces 01570-06123.

01570-0612A

2
Out of stock

14

GUIDE, HOSE RH

59261-19B00

1
Out of stock

15

GUIDE, HOSE LH

59271-19B00

1
Out of stock

16

BOLT This part replaces 01570-06123.

01570-0612A

2
Out of stock

17

CLAMP, HOSE RH This part replaces 59266-19B01.

59266-19B02

1
Out of stock

18

CLAMP, HOSE LH This part replaces 59276-19B01.

59276-19B02

1
Out of stock

19

BOLT This part replaces 01570-06103.

01570-0610A

2
Out of stock
