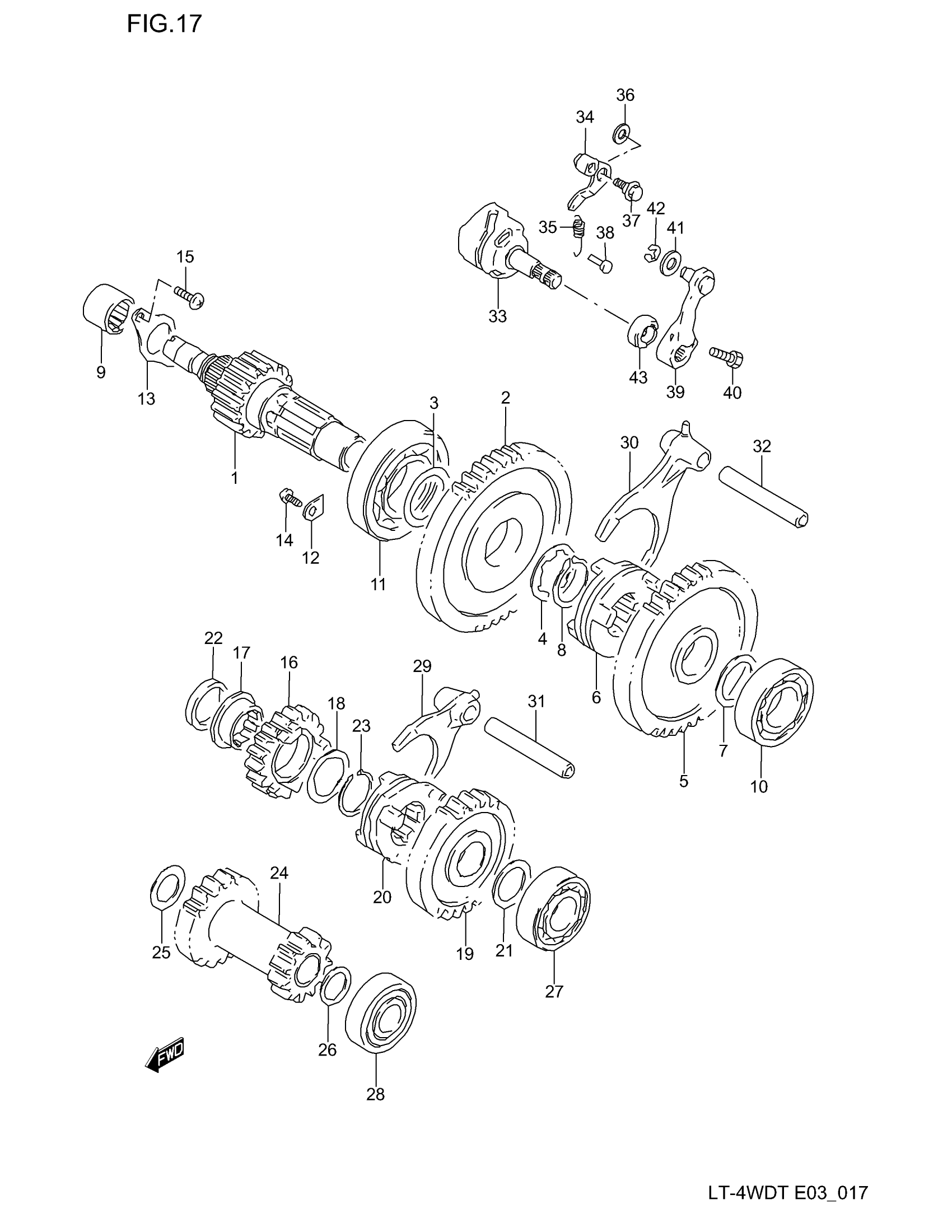

Suzuki LT-4WD (1996) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, SUB TRANSMISSION This part replaces 29121-19B01.

29121-19B10

Unavailable

2

GEAR, DRIVEN NO.1 (NT:43)

29311-19B01

Unavailable

3

WASHER, RH

08211-32441

$4.35

4

WASHER, LH

09167-32002

$5.10

5

GEAR, DRIVEN NO.2 (NT:37)

29320-19B00

$206.05

6

DOG, DRIVEN GEAR

29331-19B00

Unavailable

7

WASHER

08211-25351

$4.03

8

CIRCLIP This part replaces 08331-31326.

08331-3132A

Unavailable

9

BEARING, RH

09263-18023

Unavailable

10

BEARING, LH

09262-25003

$22.40

11

BEARING, MIDDLE (35X72X17)

09262-35038

$42.19

12

RETAINER

24741-21A00

$2.80

13

RETAINER

24751-19B00

Unavailable

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

15

SCREW This part replaces 02112-06163.

02112-0616A

$1.43

16

GEAR, DRIVE NO.1 (NT:18) This part replaces 29211-19B00.

29211-19B01

$97.60

17

BUSH This part replaces 29215-19B00.

29215-19B01

$27.30

18

WASHER

09167-25016

$4.03

19

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

$122.07

20

DOG, DRIVE GEAR

29231-19B00

Unavailable

21

WASHER

08211-20301

$2.97

22

SPACER (25X34X5.5)

09180-25083

$15.42

23

SNAP RING

09380-25003

$2.80

24

GEAR, IDLE (NT:17/11) This part replaces 29150-19B02.

29150-19B10

$200.50

25

WASHER (17X24X4.5)

09180-17076

$10.42

26

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.59

27

BEARING, DRIVE SHAFT LH

09262-20069

$21.00

28

BEARING This part replaces 09262-15022.

09262-15062

$19.90

29

FORK, NO.1

29511-19B00

Unavailable

30

FORK, NO.2

29521-19B00

Unavailable

31

SHAFT, NO.1 This part replaces 25421-35403.

25421-35410

$26.50

32

SHAFT, NO.2

25421-04702

Unavailable

33

CAM, SUB TRANSMISSION GEAR

29610-19B10

$73.01

34

STOPPER

29630-19B00

$14.45

35

SPRING

09443-09042

$5.49

36

WASHER

08211-06141

$1.61

37

BOLT

09111-06054

$4.02

38

PIN

09223-04001

$1.83

39

ARM

25360-19B70

$74.95

40

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

41

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

42

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

43

OIL SEAL (12X22X9)

09285-12006

$5.70
