1996 Suzuki LT-4WD Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1996 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

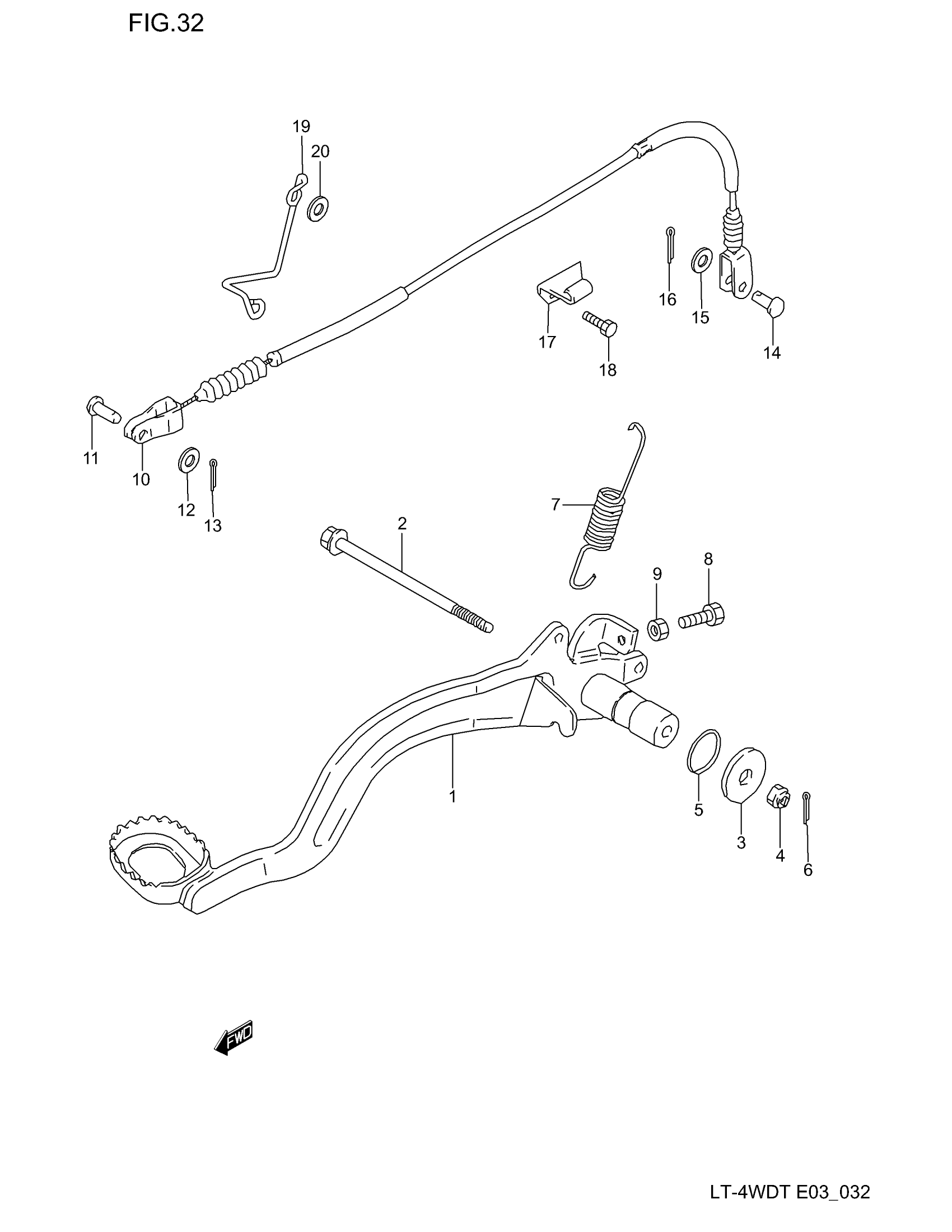

1996 Suzuki LT-4WD Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-19B20

1
Out of stock

2

BOLT

09103-06106

1
Out of stock

3

1

$2.50

In stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

O RING

09280-17002

2
Out of stock

6

1

$1.31

In stock

7

SPRING

09443-15032

1

$5.28

In stock

8

BOLT

01500-06207

1

$2.48

In stock

9

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

10

CABLE ASSY, REAR BRAKE

58510-19B02

1
Out of stock

11

PIN, FRONT

09200-06013

1

$2.38

In stock

12

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

14

PIN, REAR

09200-08061

1

$3.80

In stock

15

1

$2.27

In stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

17

BRACKET, CABLE

58575-19B00

1
Out of stock

18

2

$2.42

In stock

19

GUIDE, CABLE

58611-19B02

1
Out of stock

20

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock
