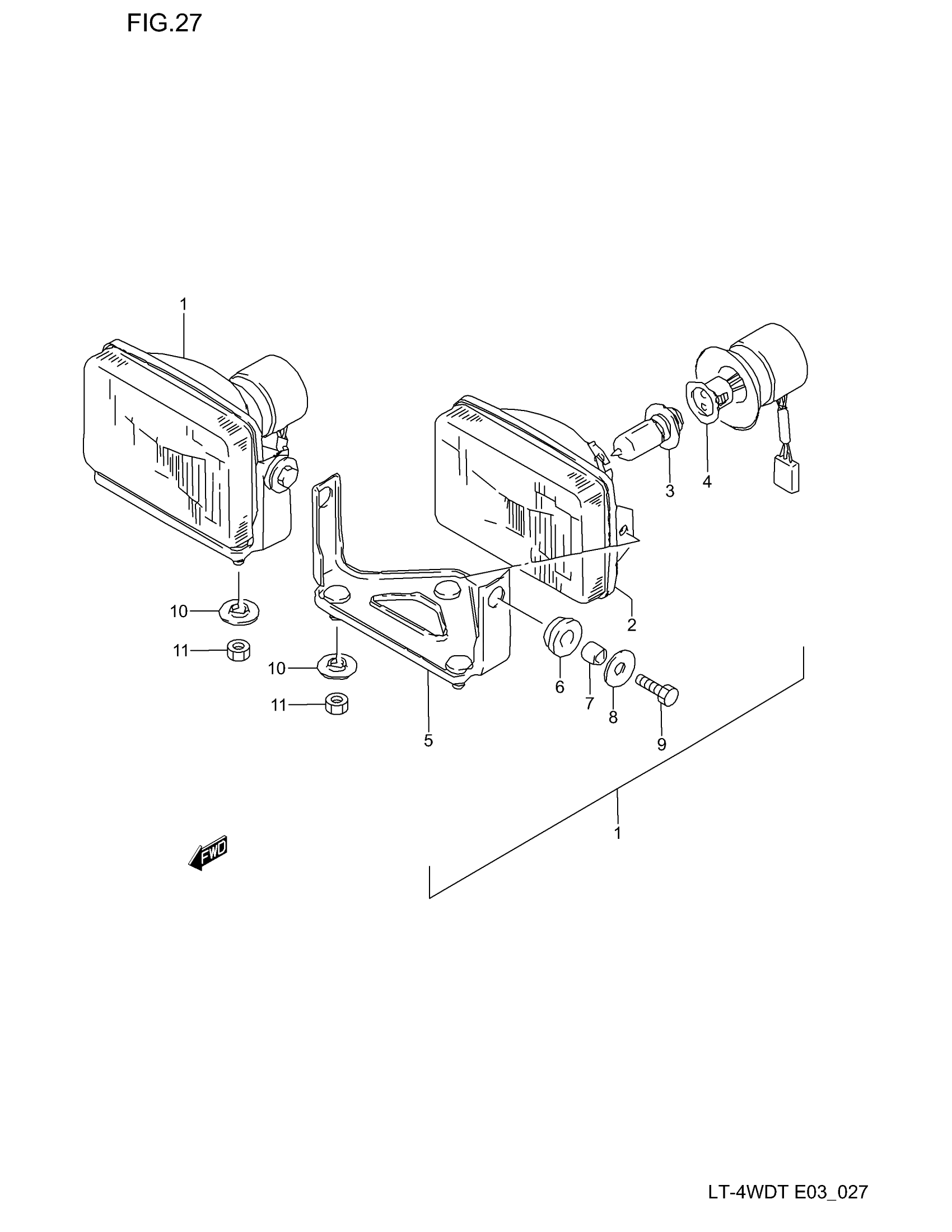

Suzuki LT-4WD (1996) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-19B13

Unavailable

2

UNIT, LAMP

35121-19B10

Unavailable

3

BULB (12V,35/36.5W)

09471-12138

Unavailable

4

SOCKET

35171-19B03

$26.26

5

BRACKET, LAMP

35141-19B00

Unavailable

6

CUSHION

35139-45230

$2.25

7

SPACER

35133-19B00

Unavailable

8

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.15

9

BOLT

09100-06067

Unavailable

10

WASHER This part replaces 09169-06028.

09169-06041

$1.97

11

NUT This part replaces 08310-00063.

08310-0006A

$1.83
