1996 Suzuki LT-4WD Fuel Tank Diagram

← All diagrams

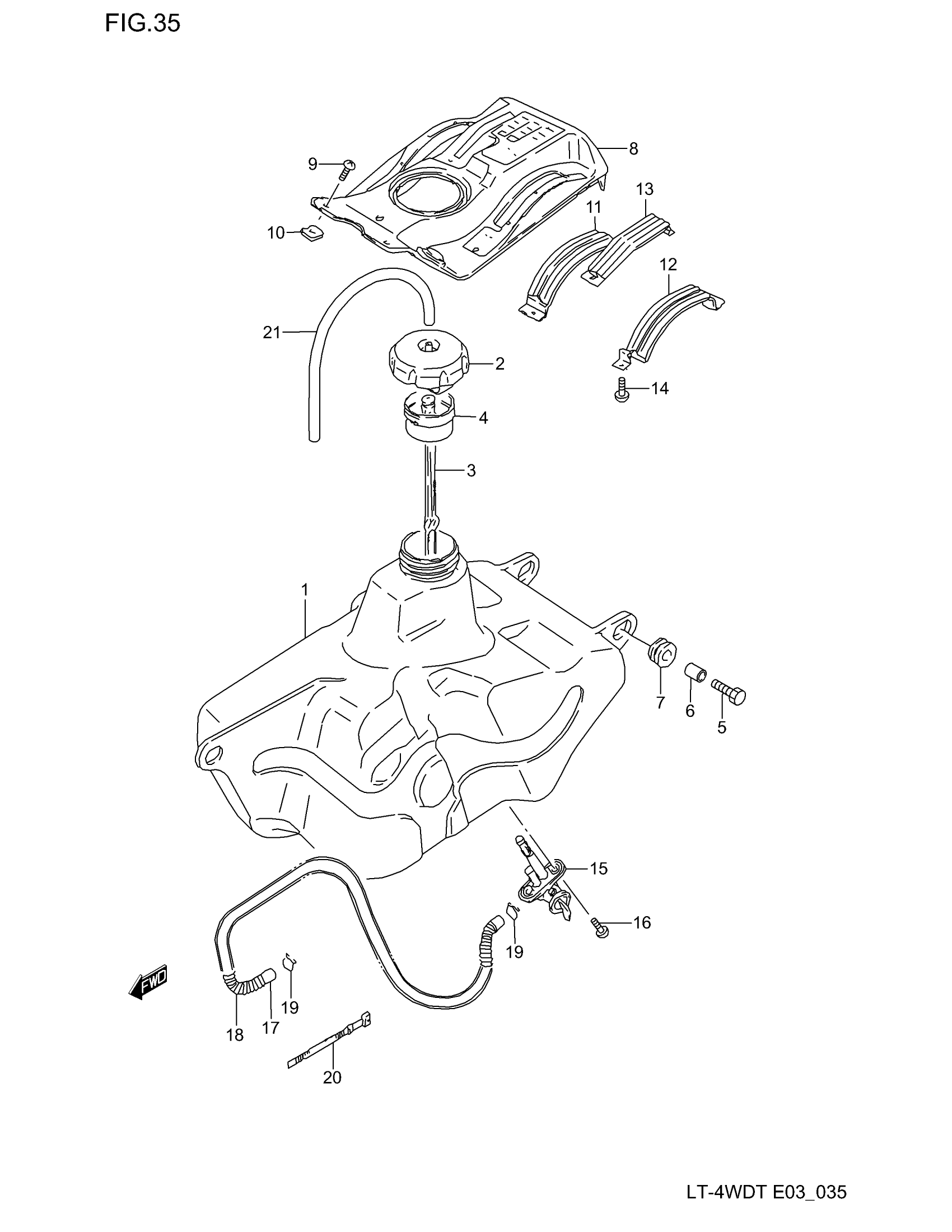

Find the part on the Fuel Tank diagram for your 1996 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki LT-4WD Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

1
Out of stock

2

CAP, FUEL TANK

44200-19B00

1

$44.25

In stock

3

1

$6.52

In stock

4

TUBE, FILLER INLET

44199-19A00

1

$6.44

In stock

5

BOLT

09118-08121

3
Out of stock

6

3

$3.00

In stock

7

CUSHION

09320-12016

3

$2.57

In stock

8

COVER, FUEL TANK

44270-19B10

1
Out of stock

9

4

$2.77

In stock

10

NUT

53141-19A00

4

$4.33

In stock

11

1

$18.78

In stock

12

1

$19.42

In stock

13

1

$12.50

In stock

14

5

$1.90

In stock

15

1

$89.46

In stock

16

2

$2.12

In stock

17

1

$9.88

In stock

18

1

$13.76

In stock

19

CLIP

09401-10403

2

$1.80

In stock

20

CLAMP

09407-14403

2
Out of stock

21

1

$9.88

In stock
← Carburetor OIL Pump - Fuel Pump →

More Air & Fuel diagrams
