1995 Suzuki LT-4WD Wiring Harness Diagram

← All diagrams

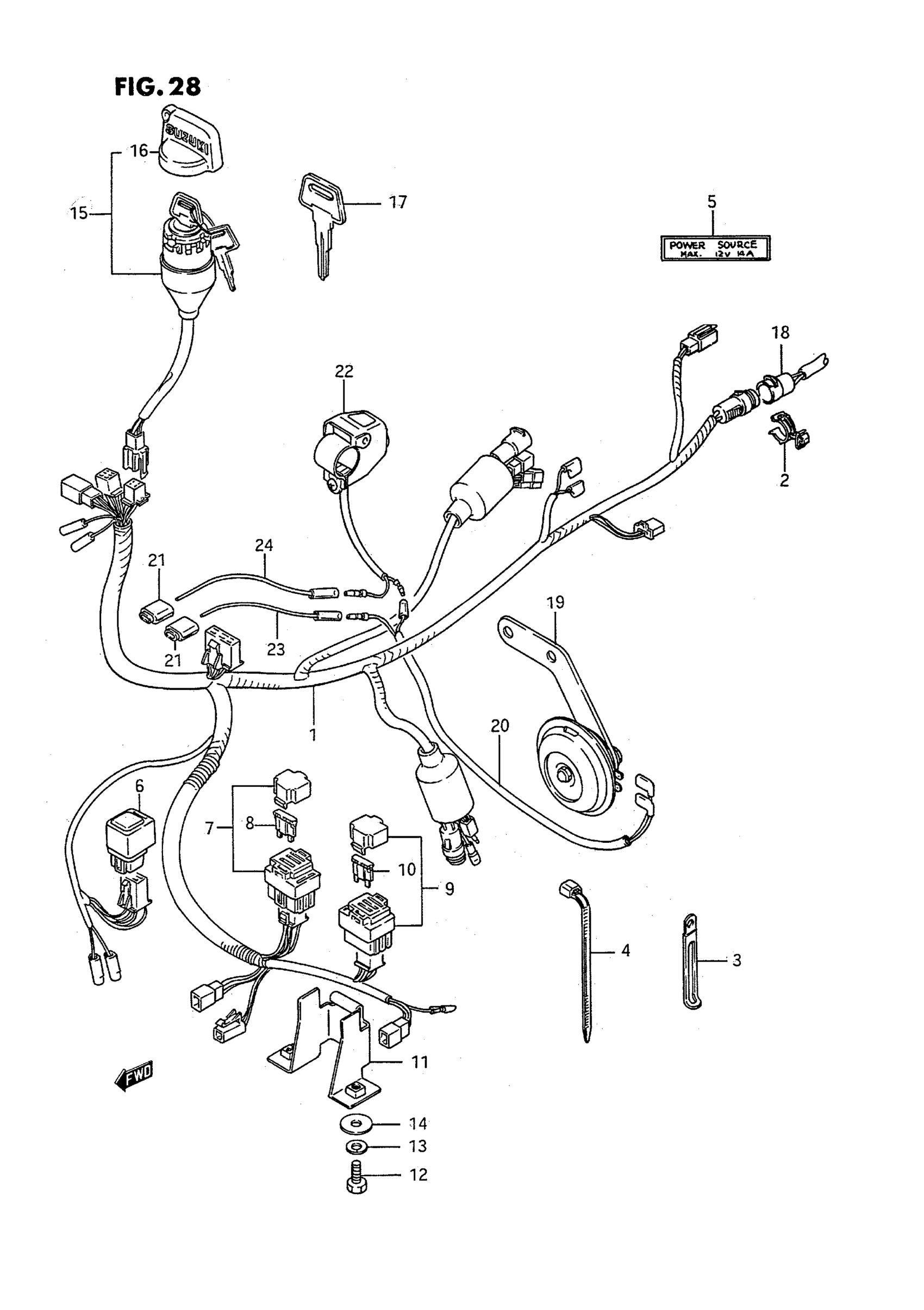

Find the part on the Wiring Harness diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 36610-19B00.

36610-19B30

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL J:%E.NO.134404 This part replaces 36610-19B20.

36610-19B30

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL J:E.NO.134405%,MODEL K This part replaces 36610-19B21.

36610-19B30

1
Out of stock

1

HARNESS, WIRING | MODEL L This part replaces 36610-19B40.

36610-39D50

1
Out of stock

1

HARNESS, WIRING | MODEL M/N/P/R This part replaces 36610-39D10.

36610-39D50

1
Out of stock

1

WIRING HARNESS | MODEL S

36610-39DC0

1
Out of stock

2

CLAMP

09403-16307

2

$2.77

In stock

3

CLAMP This part replaces 09404-06413.

09404-06039

2
Out of stock

4

CLAMP (L:125) | MODEL H

09407-14403

5
Out of stock

4

CLAMP (L:125) | MODEL J/K/L/M/N/P/R/S

09407-14403

2
Out of stock

4

CLAMP | MODEL H This part replaces 09407-18403.

09407-18402

9
Out of stock

4

CLAMP | MODEL J/K/L/M/N/P/R/S This part replaces 09407-18403.

09407-18402

11
Out of stock

4

CLAMP (L:240) | MODEL J/K/L/N/P/R

09407-25401

1
Out of stock

5

LABEL, CAUTION MAX AMP | MODEL H/J/K This part replaces 38852-19B00.

38852-19B10

1
Out of stock

5

LABEL, POWER SOURCE | MODEL L/M/N/P/R/S

38852-19B10

1
Out of stock

6

RELAY ASSY, SIDE STAND | MODEL H/J/K This part replaces 38640-06B10.

38740-24X50

1
Out of stock

6

1

$41.46

In stock

7

1

$31.82

In stock

8

FUSE (20A)

09481-20101

1

$2.31

In stock

10

FUSE (15A)

09481-15101

2

$2.77

In stock

11

1

$14.00

In stock

12

BOLT | MODEL H/J/K/L/M This part replaces 01107-06163.

01500-0616A

2
Out of stock

13

2

$1.97

In stock

14

WASHER, FRONT This part replaces 09160-06004.

09160-06134

2
Out of stock

15

SWITCH ASSY,IGN | MODEL H/J/K/L This part replaces 37110-19B01.

37110-19B03

1
Out of stock

15

SWITCH ASSY,IGN | MODEL M/N/P/R/S; Includes Item(s) 16 This part replaces 37110-19B02.

37110-19B03

1
Out of stock

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

17

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

17

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

18

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

1
Out of stock

19

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B01.

38500-09F01

1
Out of stock

20

LEAD WIRE, HORN | OPT

36852-19B00

1
Out of stock

21

2

$5.35

In stock

22

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

1
Out of stock

23

LEAD WIRE, HORN SWITCH | OPT

36851-19B00

1
Out of stock

24

LEAD WIRE, HORN SWITCH | OPT

36851-19B10

1
Out of stock
