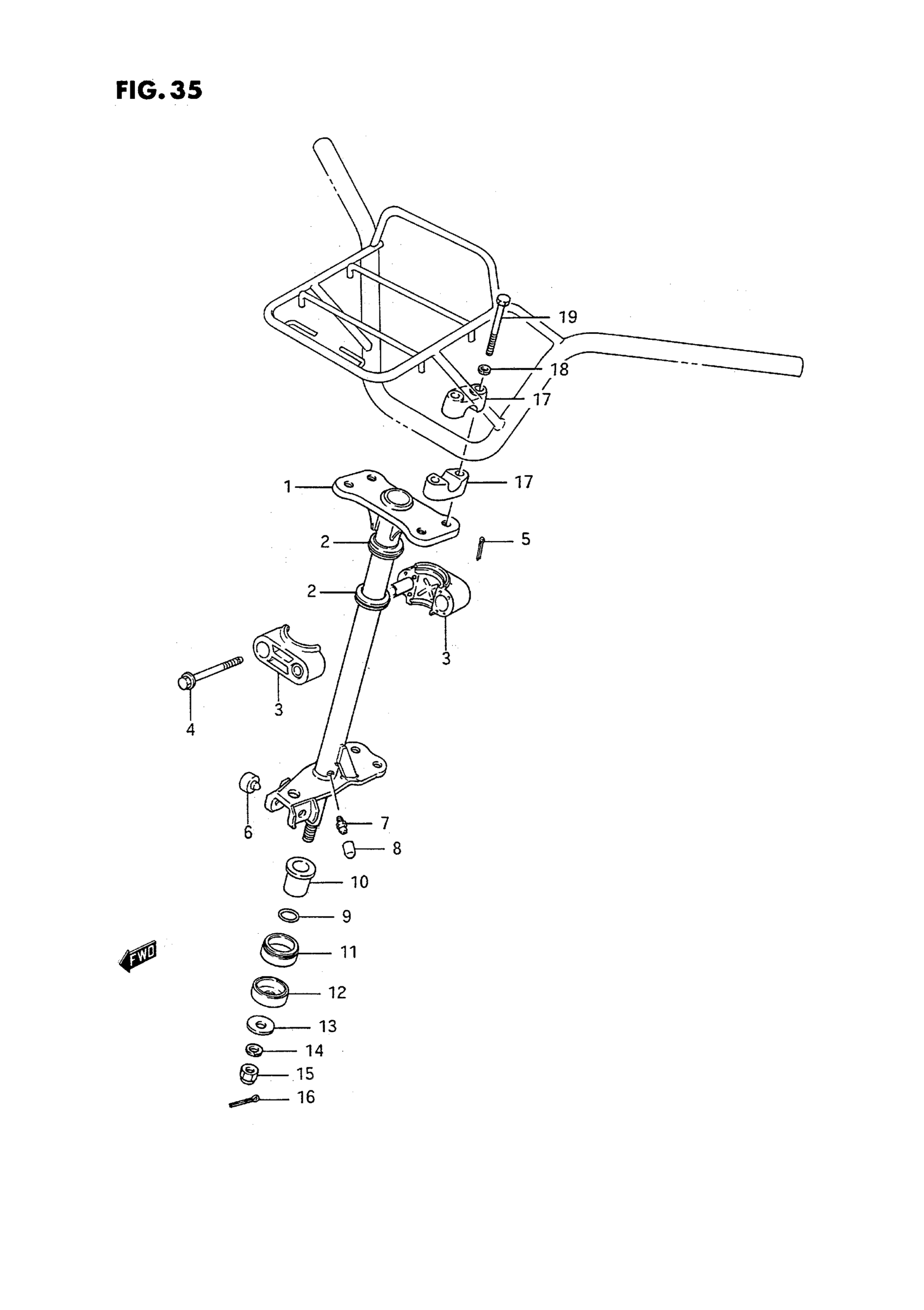

Suzuki LT-4WD (1995) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING | MODEL H This part replaces 51650-19B00.

51650-19B01

Unavailable

1

SHAFT, STEERING | MODEL J/K/L/M/N/P/R/S

51650-19B01

Unavailable

2

DUST SEAL, STEERING

51678-24500

$6.25

3

HOLDER,STEERING SHAFT

51670-24500

$21.72

4

BOLT

09103-08116

Unavailable

5

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

6

CUSHION, STEERING SHAFT

09321-08020

$3.67

7

NIPPLE,GREASE | MODEL H This part replaces 08351-21008.

08351-2100A

$4.28

8

CAP, GREASE NIPPLE | MODEL H

61442-33310

$3.80

9

O RING

09280-17003

$1.64

10

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL H/J This part replaces 51661-19B00.

51661-09F00

$27.50

10

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL K/L/M/N/P/R/S This part replaces 51661-19B10.

51661-09F00

$27.50

11

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$5.87

12

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$6.53

13

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$4.03

14

WASHER,LOCK | MODEL H/J/K/L/M/N/P This part replaces 08321-21125.

08321-0112A

$2.08

14

WASHER,LOCK | MODEL R This part replaces 08321-01123.

08321-0112A

$2.08

14

LOCK WASHER | MODEL S

09162-12006

$4.18

15

NUT This part replaces 08319-21125.

08319-2112B

$5.63

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

17

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$20.22

18

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

19

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01137-08555.

01570-0855B

$1.41

19

BOLT | MODEL R/S This part replaces 01570-08553.

01570-0855B

$1.41
