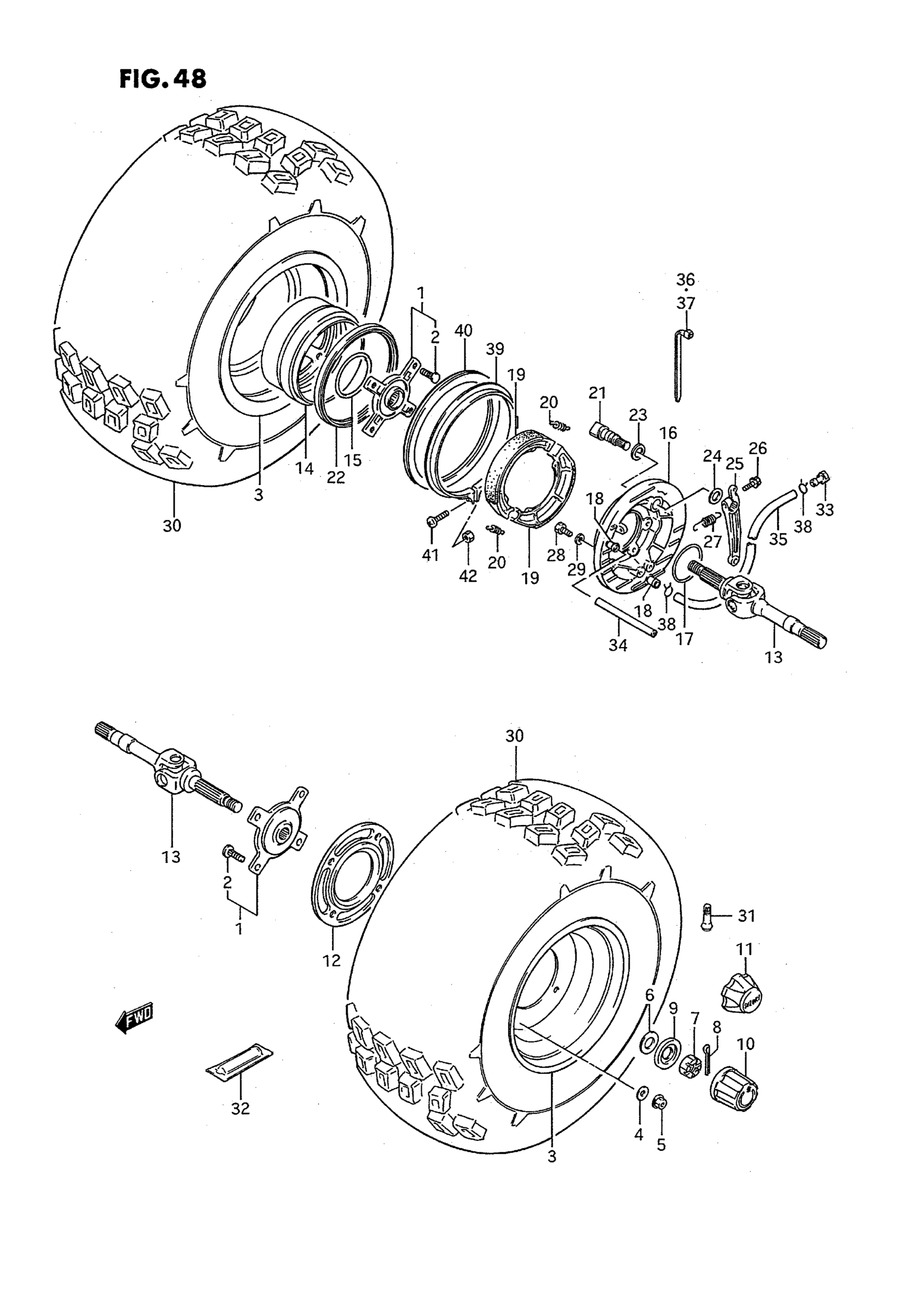

Suzuki LT-4WD (1995) REAR WHEEL Diagram

#

Description
Price

1

HUB, FRONT | MODEL H This part replaces 54110-19B00.

54110-19B01

Unavailable

1

HUB, REAR WHEEL | MODEL J/K/L/M/N/P/R This part replaces 64110-19B10.

64110-19B11

Unavailable

1

HUB, REAR WHEEL | MODEL S; Includes Item(s) 2

64110-19B11

Unavailable

2

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.58

3

RIM, REAR WHEEL (SILVER) | MODEL H/J/K This part replaces 65310-19B01-13L.

65310-19B11-13L

Unavailable

3

RIM, REAR WHEEL (SILVER) | MODEL L/M/N/P/R This part replaces 65310-19B10-13L.

65310-19B11-13L

Unavailable

3

RIM, REAR WHEEL (SILVER) | MODEL S

65310-19B11-13L

Unavailable

4

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-21107.

08322-01107

$1.88

4

WASHER,10.5X22X | MODEL R/S This part replaces 09160-10119.

09160-10143

$2.37

5

NUT, WHEEL SET | MODEL H/J/K/L/M/N/P This part replaces 08316-16108.

08316-10107

$2.38

5

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.65

6

WASHER

09164-18004

$3.38

7

NUT, HUB | MODEL H/J/K/L/M/N/P This part replaces 09141-18004.

09141-18008

$7.67

7

NUT, HUB (WHITE) | MODEL R/S

09141-18008

$7.67

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

9

HOLDER, CAP

64726-19B00

$3.12

10

CAP | MODEL H

54725-18A00

$9.41

11

CAP, WHEEL CENTER | MODEL J/K/L/M/N/P This part replaces 54725-19B00.

54725-39D00

$13.90

11

CAP | MODEL R/S

54725-39D00

$13.90

12

SPACER, HUB LH

64113-19B10

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 64710-19B00.

64710-19BV0

Unavailable

13

AXLE, REAR | MODEL J/K/L/M/N/P/R/S

64710-19B10

Unavailable

14

DRUM, BRAKE

64120-19B00

Unavailable

15

O RING, DRUM

09280-80001

$3.52

16

PANEL, BRAKE ANCHOR

64210-19B02

Unavailable

17

O RING, PANEL

09280-70010

$4.75

18

UNION

09364-12002

Unavailable

19

SHOE SET, BRAKE | MODEL H/J/K/L/M/N/P This part replaces 64410-19B00.

64400-19820

Unavailable

19

SHOE SET, BRAKE | MODEL R/S This part replaces 64410-19B10.

64400-19820

Unavailable

20

SPRING, SHOE

55420-30000

$4.22

21

CAM, REAR BRAKE

64440-19B00

Unavailable

22

DUST SEAL, DRUM

64124-19B00

Unavailable

23

O RING

64443-18A00

$1.87

24

WASHER

09160-16003

$3.67

25

LEVER, CAM

64451-19B01

Unavailable

26

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06256.

01550-0625A

$1.97

26

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$1.97

27

SPRING This part replaces 09443-13022.

09443-13022-XC0

Unavailable

28

BOLT | MODEL H/J/K/L This part replaces 01107-08203.

01500-0820A

$2.87

28

BOLT, BRACE | MODEL M/N/P This part replaces 01147-08203.

01570-0820A

$3.42

28

BOLT, BRACE | MODEL R/S This part replaces 01570-08203.

01570-0820A

$3.42

29

LOCK WASHER | MODEL H/J/K/L This part replaces 08321-31086.

08321-0108A

$1.83

30

TIRE, T/L REAR (AT25X12-10) (DUNLOP) | MODEL H This part replaces 65100-19B50.

65100-19B60

Unavailable

30

TIRE, T/L REAR (AT25X12-10) (BRIDGESTONE) | MODEL H This part replaces 65100-19B30.

65100-19B40

Unavailable

30

TIRE, T/L REAR (AT25X12-10) (DUNLOP) | MODEL J/K This part replaces 65100-19B51.

65100-19B60

Unavailable

30

TIRE, T/L REAR (AT25X12-10) (BRIDGESTONE) | MODEL J/K This part replaces 65100-19B31.

65100-19B40

Unavailable

30

TIRE, T/L REAR (AT25X12-10) (BRIDGESTONE) | MODEL L/M/N/P/R

65100-19B40

Unavailable

30

TIRE, T/L REAR (AT25X12-10) (DUNLOP) | MODEL L/M/N/P/R/S

65100-19B60

Unavailable

31

VALVE ASSY, WHEEL RIM | !43130-78030 This part replaces 43130-75150.

43130-78030

$8.71

31

VALVE ASSY, WHEEL RIM

43130-78030

$8.71

32

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$66.48

33

PLUG, DRAIN HOSE

13877-00190

$6.00

34

HOSE,11X15X2000 | L:1000!990 This part replaces 09352-11153-00A.

09352-11154-00B

$52.55

35

HOSE | L:600!230 This part replaces 09352-11153-600.

09352-11154-600

$11.77

36

CLAMP, BREATHER HOSE (L:125)

09407-14403

$2.24

37

CLAMP, DRAIN HOSE | MODEL H

09407-18402

$2.21

38

CLIP, HOSE

09401-14301

$2.17

39

BRACKET, BRAKE COVER

64260-19B00

Unavailable

40

COVER, REAR BRAKE

64265-19B00

Unavailable

41

SCREW | MODEL H/J/K/L/M/N/P This part replaces 02112-04166.

02112-0416A

$1.24

41

SCREW | MODEL R/S This part replaces 02112-04163.

02112-0416A

$1.24

42

NUT | MODEL H/J/K/L/M/N/P This part replaces 08310-11046.

08310-0004A

$2.50

42

NUT | MODEL R/S This part replaces 08310-00043.

08310-0004A

$2.50
