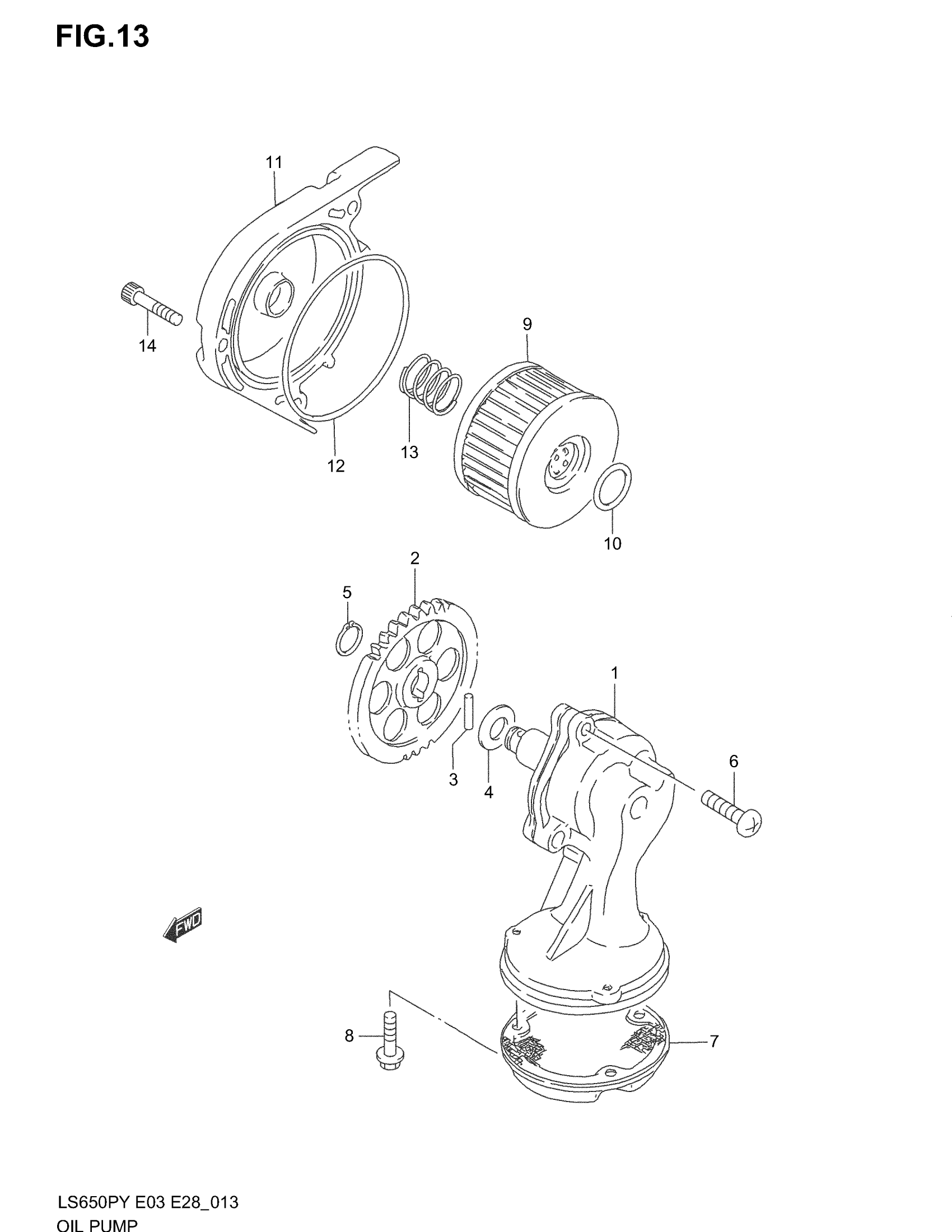

Suzuki LS650P (2004) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-24B00

$241.17

2

GEAR, DRIVEN (NT:35)

16331-24B00

Unavailable

3

PIN

09261-04009

$1.50

4

WASHER | MODEL T

08221-10185

$2.35

4

WASHER | MODEL V/W/X/Y/K1/K2/K3/K4

09181-10158

$1.97

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

6

SCREW This part replaces 02112-06253.

02112-0625A

$1.79

7

STRAINER, ENGINE OIL

16520-24B00

Unavailable

8

BOLT

01580-05123

Unavailable

9

FILTER, ENGINE OIL | MODEL T/V This part replaces 16510-37440.

16510-37450

$5.39

9

FILTER, ENGINE OIL | MODEL W/X/Y/K1/K2/K3/K4

16510-37450

$5.39

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

11

CAP, OIL FILTER

16512-24B00

$64.22

12

.O RING (D:2.4,ID:73)

09280-72001

$4.47

13

SPRING

09440-21006

$2.01

14

BOLT

07130-06257

$2.90
