Description

Price

1

CYLINDER | MODEL T/V/W/X This part replaces 11210-24B07.

11210-24B07-0F0

$1,094.05

1

CYLINDER | MODEL Y/K1

11210-24B07-0F0

$1,094.05

1

CYLINDER | MODEL K2/K3/K4 This part replaces 11210-24B10-0F0.

11210-24B11-0F0

$838.65

2

STUD BOLT (9X166)

09108-09001

$12.27

3

STUD BOLT (9X178)

09108-09002

$14.00

4

STUD BOLT (9X183)

09108-09003

$14.00

5

STUD BOLT (9X203)

09108-09004

$14.18

6

STUD BOLT | MODEL T/V/W/X/Y/K1 This part replaces 01421-06208.

01421-0620A

$1.89

6

STUD BOLT | MODEL K2/K3/K4 This part replaces 01421-06203.

01421-0620A

$1.89

7

NUT | MODEL T/V/W/X/Y/K1

08313-10067

$1.83

7

NUT | MODEL K2/K3/K4 This part replaces 08313-10063.

08313-1006A

$1.83

8

GASKET, CYLINDER

11241-24B01-H17

$11.44

9

PIN

04211-13189

$2.19

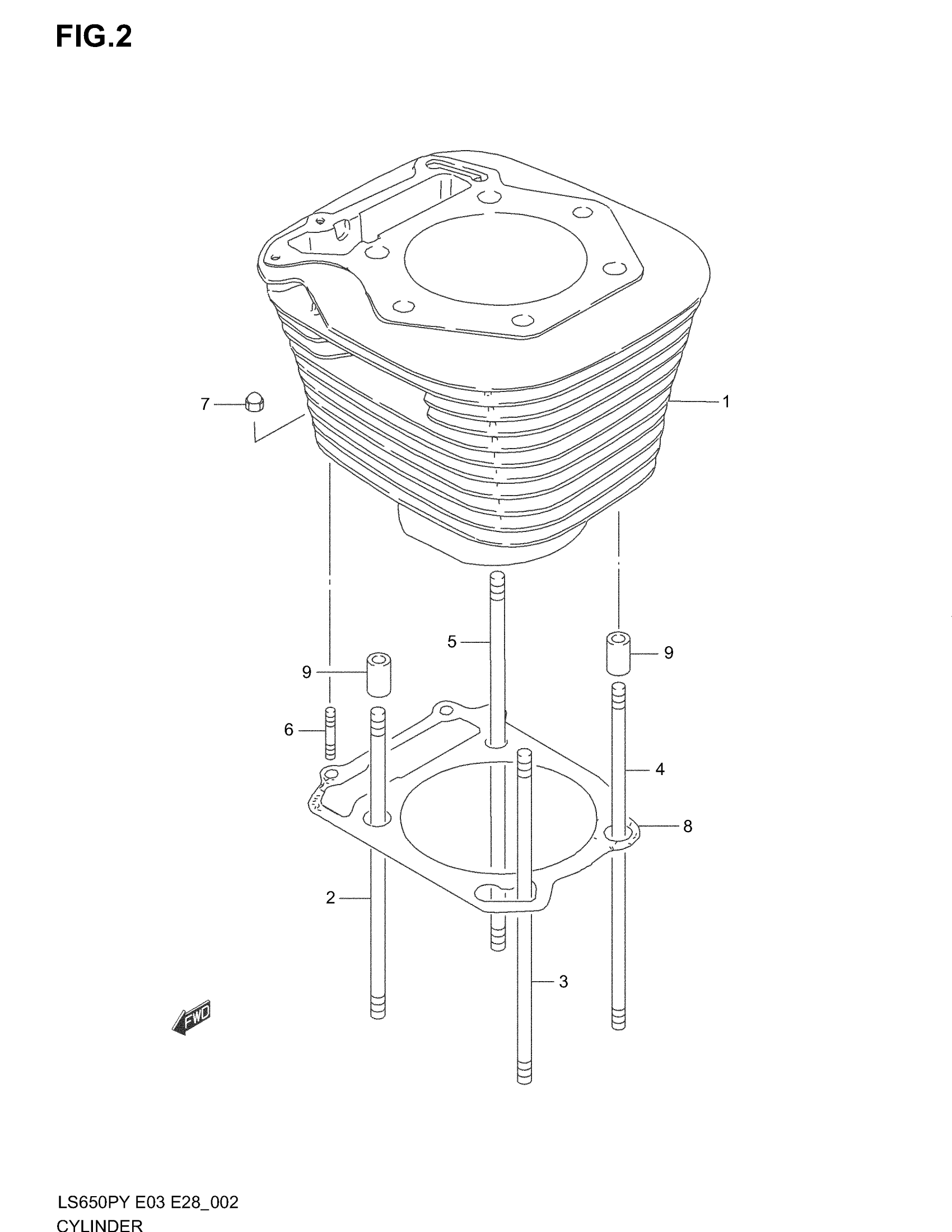

Suzuki LS650P (2004) CYLINDER Diagram
