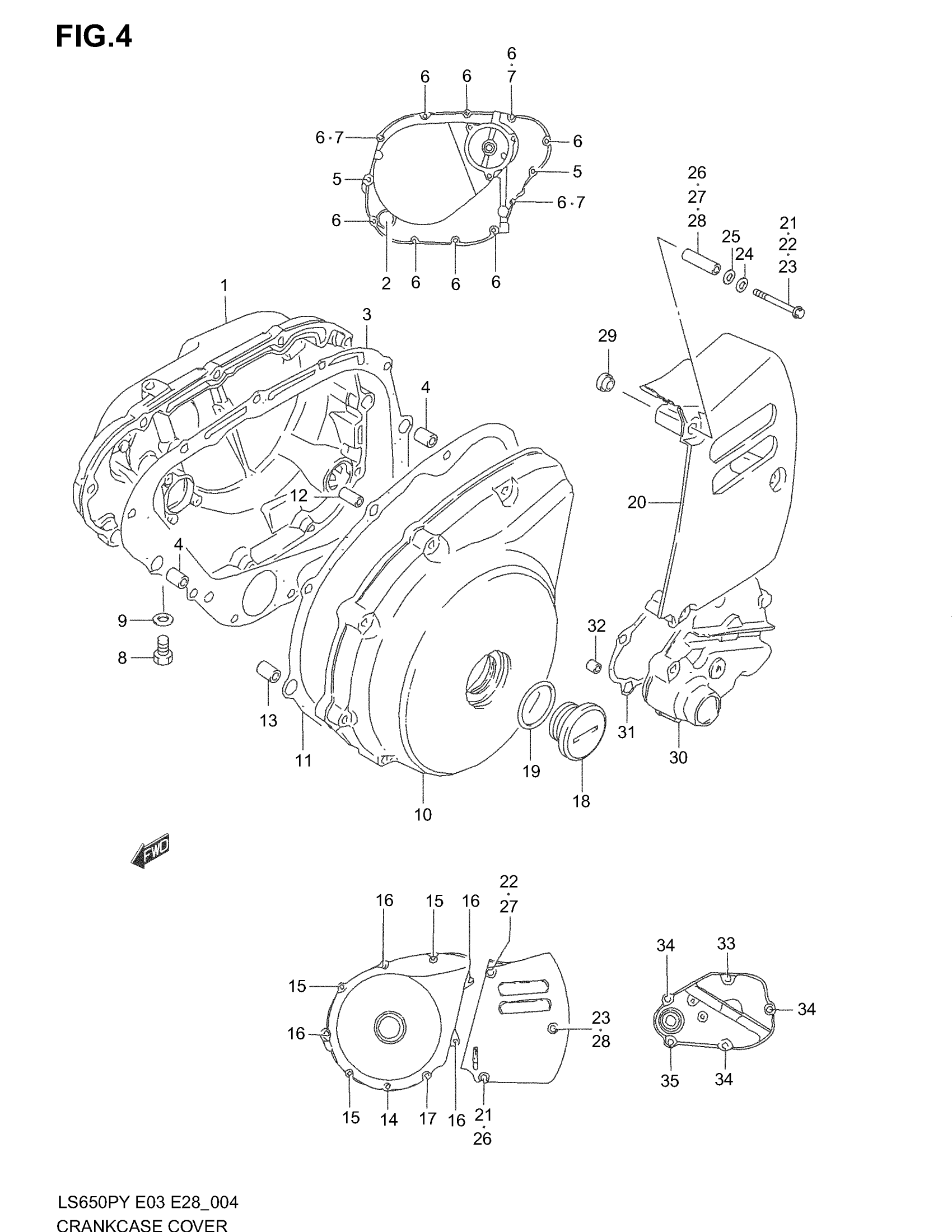

Suzuki LS650P (2004) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-24B00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$17.41

3

GASKET, CLUTCH COVER

11482-24B11

$27.65

4

PIN

04211-11169

$1.82

5

BOLT

01547-06357

$2.09

6

BOLT

01547-06257

$2.09

7

GASKET (5.8X11X1.2) | MODEL T/V/W/X

09168-06024

$2.19

7

GASKET (5.8X13X1.2) | MODEL Y/K1/K2/K3/K4

09168-06023

$2.09

8

PLUG, OIL GALLERY

09247-12104

$2.80

9

GASKET

09168-12002

$1.63

10

COVER, GENERATOR

11351-24B10

$199.57

11

GASKET, GENERATOR COVER

11483-24B01-H17

$16.39

12

PIN

04211-09189

$1.70

13

PIN

04211-11189

$1.86

14

BOLT

01547-06257

$2.09

15

BOLT

01547-06357

$2.09

16

BOLT

01547-06457

$2.39

17

BOLT

01547-06507

$2.50

18

PLUG

09259-36011

$19.39

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

20

COVER, ENGINE SPROCKET

11361-24B10

$127.21

21

BOLT

01547-06457

$2.39

22

BOLT

01547-06507

$2.50

23

BOLT

01547-06557

$2.42

24

WASHER | MODEL T/V This part replaces 09160-06097.

09160-06125

$1.97

24

WASHER | MODEL W/X/Y/K1/K2/K3/K4

09160-06125

$1.97

25

CUSHION, OUTER

09161-09006

$2.36

26

SPACER (L:31.5) | MODEL T This part replaces 09180-06170.

09180-06277

$3.69

26

SPACER (L:31.5) | MODEL V/W/X/Y/K1/K2/K3/K4

09180-06277

$3.69

27

SPACER (L:38.3) | MODEL T This part replaces 09180-06171.

09180-06279

$4.19

27

SPACER (L:38.3) | MODEL V/W/X/Y/K1/K2/K3/K4

09180-06279

$4.19

28

SPACER (L:41.3) | MODEL T This part replaces 09180-06172.

09180-06280

$5.52

28

SPACER (L:41.3) | MODEL V/W/X/Y/K1/K2/K3/K4

09180-06280

$5.52

29

CUSHION, INNER

09161-09005

$2.40

30

COVER, GEAR SHIFT

11371-24B01

$112.45

31

GASKET, GEAR SHIFT COVER

11485-24B10

$7.98

32

PIN

04211-09109

$1.70

33

BOLT This part replaces 01547-06163.

01547-0616B

$2.50

34

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.80

35

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.80
