2016 Suzuki LS650L6 Wiring Harness Diagram

← All diagrams

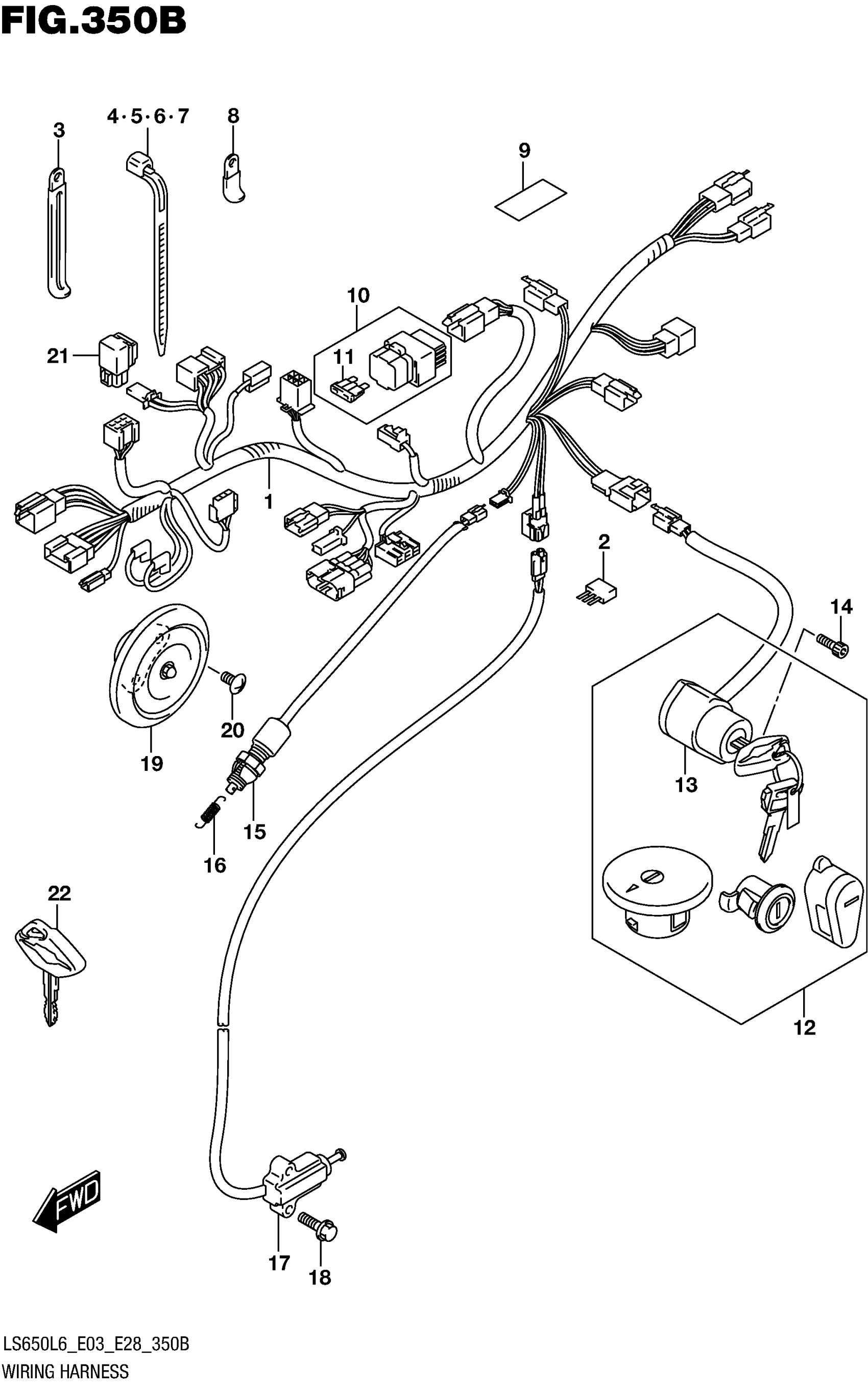

Find the part on the Wiring Harness diagram for your 2016 Suzuki LS650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LS650L6 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING This part replaces 36610-24BD0.

36610-24BD1

1
Out of stock

2

.DIODE

36611-38A10

1
Out of stock

3

1

$2.88

In stock

4

CLAMP (L:95)

09407-11401

1
Out of stock

5

CLAMP (L:125)

09407-14403

4
Out of stock

6

CLAMP (L:165)

09407-18402

4
Out of stock

7

CLAMP (L:235)

09407-25401

2
Out of stock

8

CLAMP, WIRING HARNESS

36651-24B10

1
Out of stock

9

TAPE, WIRING HARNESS

36930-60A10

1
Out of stock

10

FUSE ASSY, MAIN

36740-24B01

1

$31.82

In stock

11

.FUSE (20A)

09481-20101

2

$2.31

In stock

12

LOCK SET

37101-24830

1
Out of stock

13

.SWITCH ASSY, IGNITION

37110-24B10

1
Out of stock

14

BOLT

07130-0516B

1
Out of stock

15

SWITCH ASSY, STOP LAMP

37740-45D00

1
Out of stock

16

SPRING

09443-06077

1
Out of stock

17

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

1
Out of stock

18

BOLT

01550-0620B

2
Out of stock

19

HORN ASSY

38500-24B00

1
Out of stock

20

SCREW

02142-0612B

2
Out of stock

21

RELAY ASSY, SIDE STAND WARING

38740-24X50

1
Out of stock

22-1

KEY, BLANK | OPT

37146-38B00

1
Out of stock

22-1

KEY | TYPE C

37146-38B00

1
Out of stock

22-2

KEY, BLANK | OPT

37146-38B10

1
Out of stock

22-2

KEY | TYPE D

37146-38B10

1
Out of stock

22-3

KEY, BLANK | OPT

37146-38B20

1
Out of stock

22-3

KEY | TYPE E

37146-38B20

1
Out of stock

22-4

KEY, BLANK | OPT

37146-38B30

1
Out of stock

22-4

KEY | TYPE F

37146-38B30

1
Out of stock
