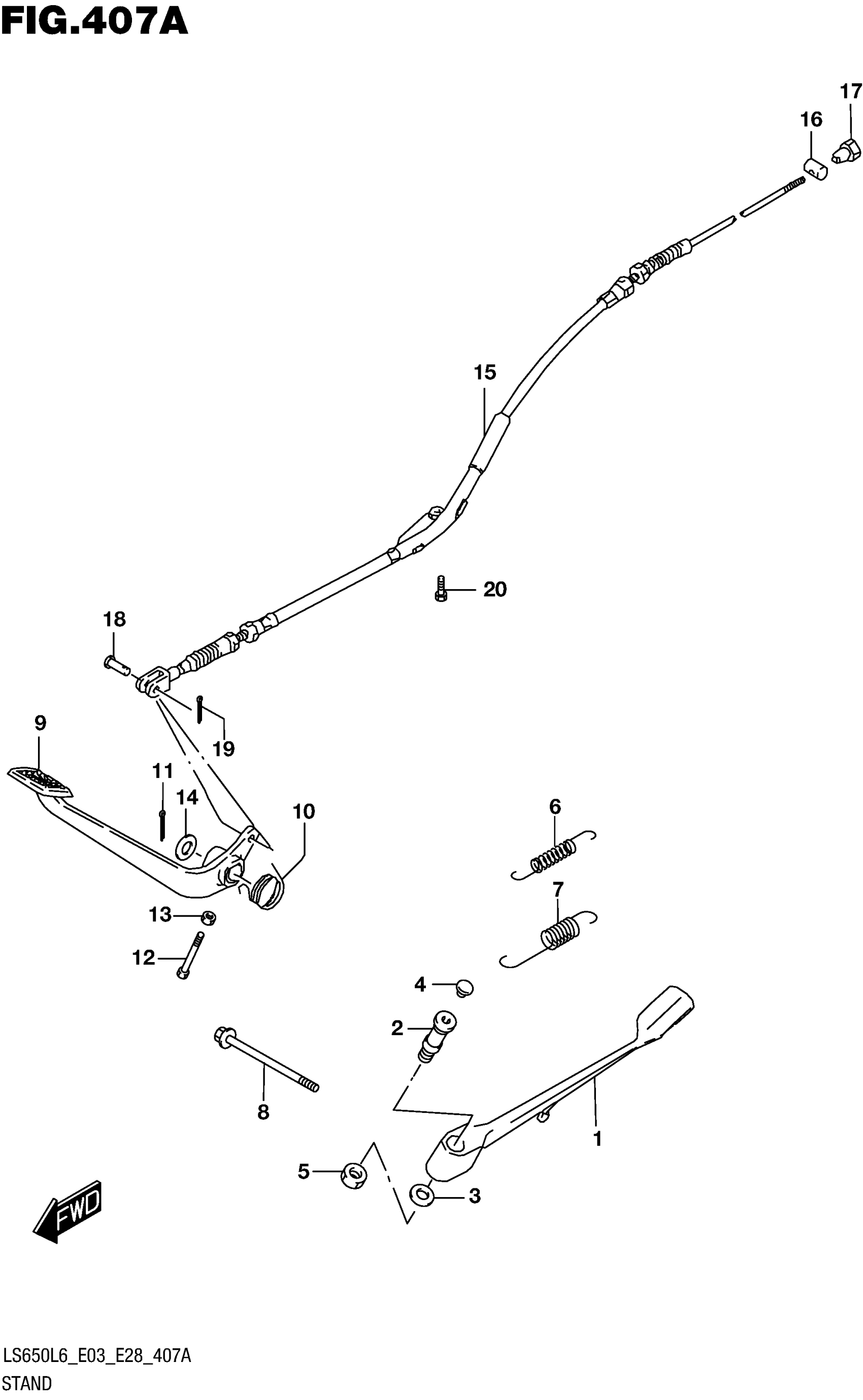

Suzuki LS650L6 (2016) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-24B01

$117.90

2

BOLT, PROP STAND

42341-38B01

$15.43

3

SHIM (15X24X0.5)

09181-15158

$2.74

4

CAP, PROP STAND BOLT

56246-24F00

$7.07

5

NUT

09140-10044

$3.30

6

SPRING

09443-15034

$11.75

7

SPRING

09443-18020

$9.27

8

BOLT (10X105)

09103-10087

$8.98

9

PEDAL This part replaces 43110-24B10.

43100-24B10

$138.22

10

SPRING

09448-32017

$7.94

11

COTTER PIN

04111-3025A

$1.38

12

BOLT (6X31)

09100-06150

$2.00

13

NUT

08310-0006B

$2.37

14

WASHER (16.5X22X1)

09160-16043

$2.30

15

CABLE, REAR BRAKE

58510-24B10

$93.88

16

PIN (13X18)

09209-13018

$3.13

17

NUT

09150-06010

$2.80

18

PIN (5.8X17.5)

09200-05001

$1.52

19

COTTER PIN

04111-2015A

$1.22

20

BOLT

01570-0616A

$2.24
