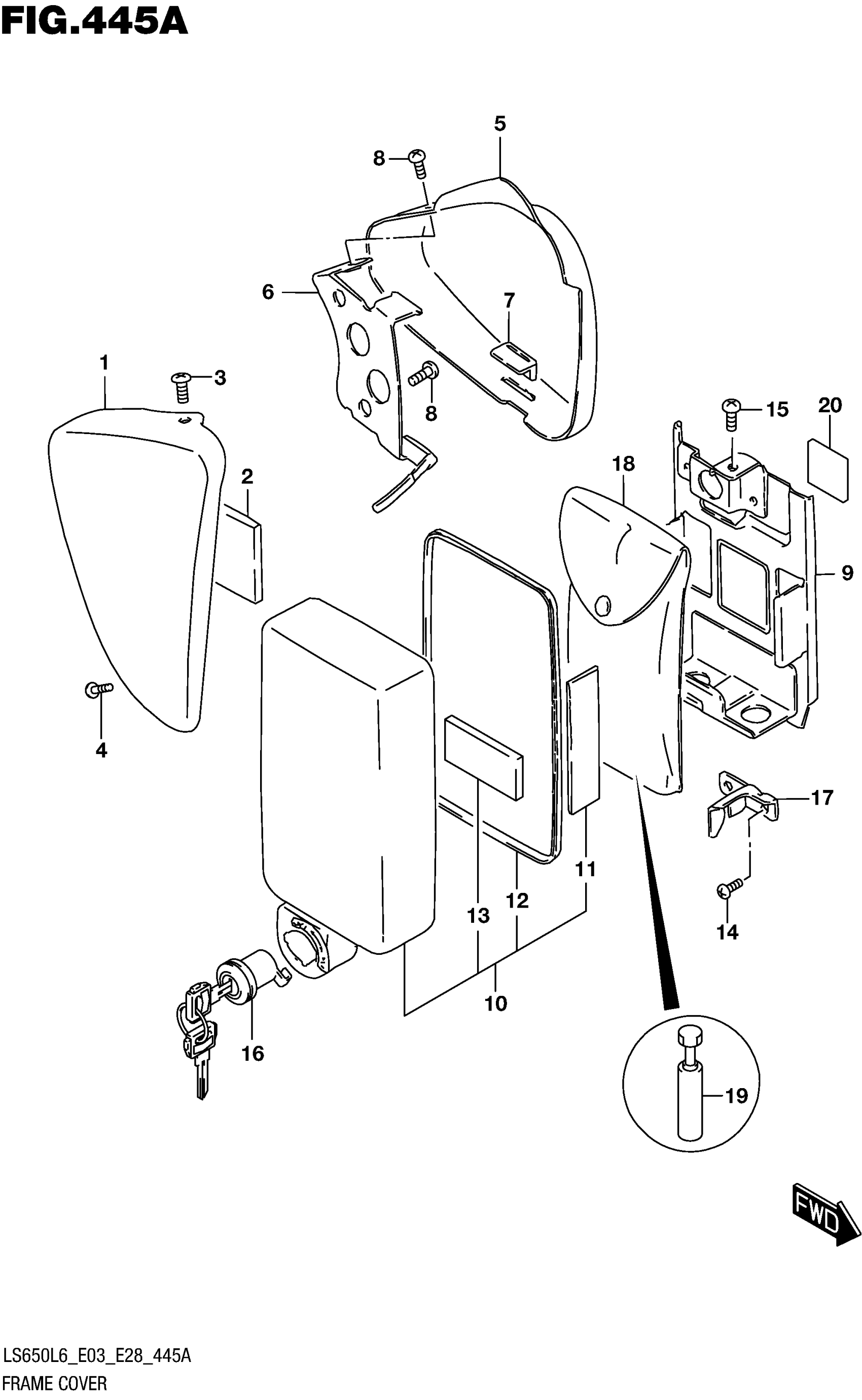

Suzuki LS650L6 (2016) FRAME COVER Diagram

#

Description
Price

1-1

COVER ASSY, FRAME RH (BLUE)

47100-24CB0-YSF

Unavailable

1-2

COVER ASSY, FRAME RH (WHITE)

47100-24CB0-YWW

Unavailable

2

.CUSHION FRAME COVER RH

13719-84150

$3.80

3

SCREW

02142-0510B

$1.77

4

SCREW

02112-7516B

$2.27

5-1

COVER ASSY, FRAME LH (BLUE)

47200-24CB0-YSF

Unavailable

5-2

COVER ASSY, FRAME LH (WHITE)

47200-24CB0-YWW

$228.29

6

BRACKET, FRAME COVER LH

47180-24B03

$27.32

7

CUSHION, FRAME COVER LH

47117-45000

$2.14

8

SCREW

02122-0612B

$1.86

9

HOLDER, TOOL

47430-24B01

$19.45

10

COVER, TOOL HOLDER

47440-24B20

$50.07

11

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

12

.MOLDING, TOOL HOLDER

47445-24B00

$3.38

13

.CUSHION, TOOL HOLDER

33652-31F00

$3.22

14

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

15

SCREW

02112-0610A

$1.59

16

LOCK SET, TOOL HOLDER

95700-24871

$47.61

17

PLATE, TOOL HOLDER LOCK

47434-24B00

$3.97

18

TOOL ASSY This part replaces 09800-21055.

09800-21102

$18.51

19

GAUGE ASSY, TENSION

96220-24B00

$28.52

20

PROTECTOR (50X50X5.0) | CUT AS REQUIRED PROF

33652-20C00

$2.80

20

PROTECTOR (50X50X5) | (30X30)

33652-20C00

$2.80
