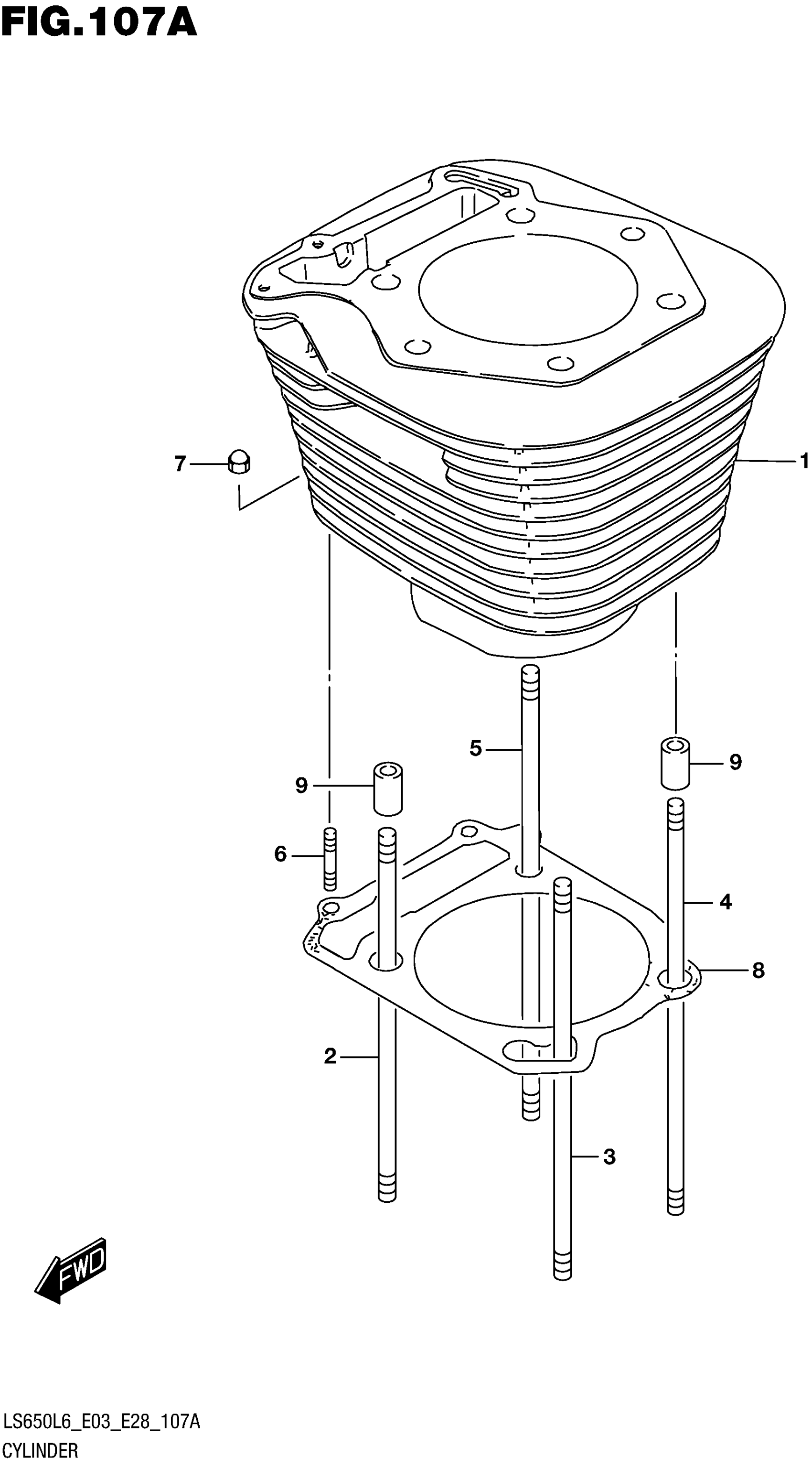

Suzuki LS650L6 (2016) CYLINDER Diagram

#

Description
Price

1

CYLINDER This part replaces 11210-24B10-0F0.

11210-24B11-0F0

$838.65

2

STUD BOLT | NO.1

09108-09001

$12.27

3

STUD BOLT | NO.2

09108-09002

$14.00

4

STUD BOLT | NO.3

09108-09003

$14.00

5

STUD BOLT | NO.4

09108-09004

$14.18

6

STUD BOLT

01421-0620A

$1.89

7

NUT

08313-20067

$2.43

8

GASKET, CYLINDER

11241-24B01-H17

$11.44

9

PIN

04211-13189

$2.19
