2015 Suzuki LS650L5 Turnsignal Lamp Diagram

← All diagrams

Find the part on the Turnsignal Lamp diagram for your 2015 Suzuki LS650L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

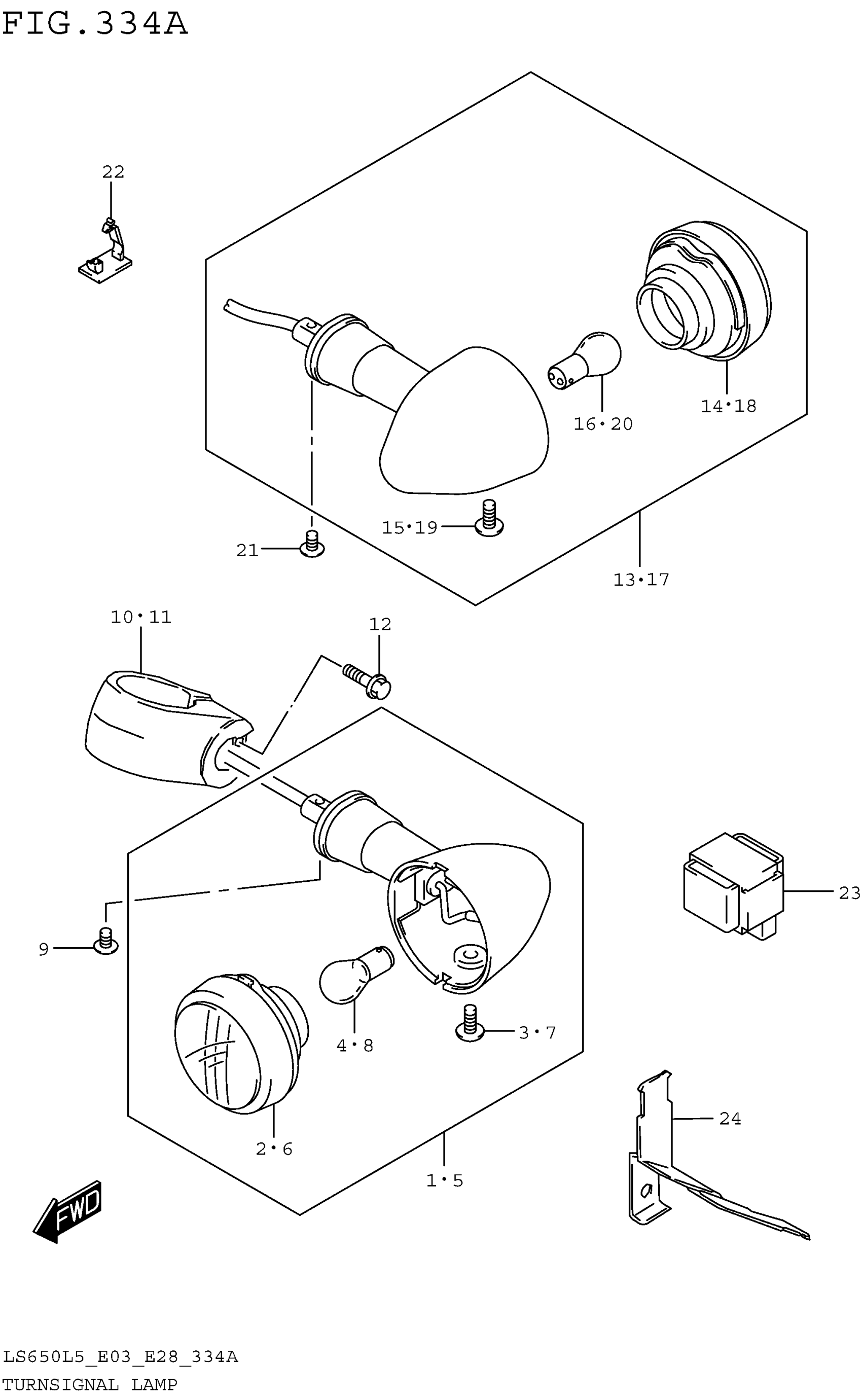

2015 Suzuki LS650L5 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-38AD0

1
Out of stock

2

LENS

35610-38AA0

1
Out of stock

3

SCREW (4X10)

35623-38AA0

1
Out of stock

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

5

LAMP ASSY, FRONT TURNSIGNAL LH

35602-38AD0

1
Out of stock

6

LENS

35630-38AA0

1
Out of stock

7

SCREW (4X10)

35623-38AA0

1
Out of stock

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

9

SCREW

02142-06107

—
Out of stock

10

BRACKET, FRONT TURNSIGNAL LAMP RH

35671-24B00

1
Out of stock

11

BRACKET, FRONT TURNSIGNAL LAMP LH

35681-24B00

1
Out of stock

12

BOLT

01547-0525A

—
Out of stock

13

LAMP ASSY, REAR TURNSIGNAL RH

35603-38AA0

1
Out of stock

14

LENS

35630-38AE1

1
Out of stock

15

SCREW (4X10)

35623-38AA0

1
Out of stock

16

BULB (12V,21W)

09471-12045

1
Out of stock

17

LAMP ASSY, REAR TURNSIGNAL LH

35604-38AA0

1
Out of stock

18

LENS

35610-38AE1

1
Out of stock

19

SCREW (4X10)

35623-38AA0

1
Out of stock

20

BULB (12V,21W)

09471-12045

1
Out of stock

21

SCREW

02142-06167

2
Out of stock

22

CLAMP

09403-04310

4
Out of stock

23

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

1
Out of stock

24

BRACKET, TURN SIGNAL RELAY

38621-24B10

1
Out of stock
