Description

Price

1

HUB, FRONT

54111-24B01

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER (15.3X21.7X56)

09180-15074

$14.53

4

AXLE, FRONT

54711-24B01

Unavailable

5

SPACER, FRONT AXLE RH

54740-24B00

$24.57

6

SPACER, FRONT AXLE LH

54750-24B00

$27.32

7

DISC, FRONT BRAKE

59211-24B10

$397.75

8

BOLT (8X25.5)

09106-08049

$5.02

9

TIRE,FRONT 100/ This part replaces 55100-24B02.

55100-24B03

$211.92

10

TUBE This part replaces 55200-44610.

55200-44611

$44.78

11

PROTECTOR, WHEEL INNER TUBE FRONT

55261-15020

$2.97

12

RIM, FRONT WHEEL (WM2.15X19)

55311-24B00

$354.71

13

SPOKE SET, FRONT WHEEL

55320-24B10

$90.88

14

BALANCER WHEEL (15G) | 15G

55411-26G00

$8.73

14

BALANCER WHEEL (30G) | 30G

55413-41F00

$9.95

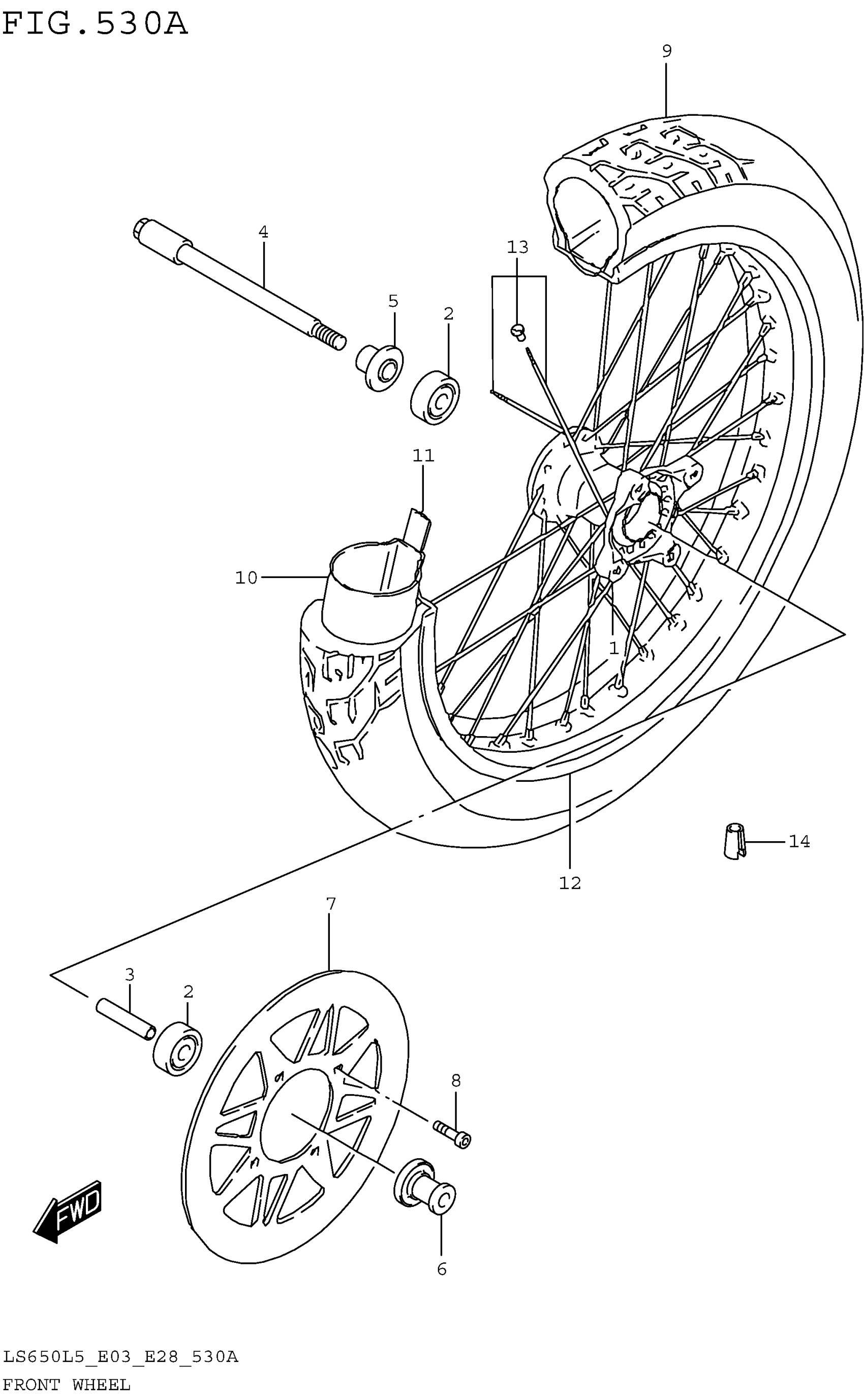

Suzuki LS650L5 (2015) FRONT WHEEL Diagram
