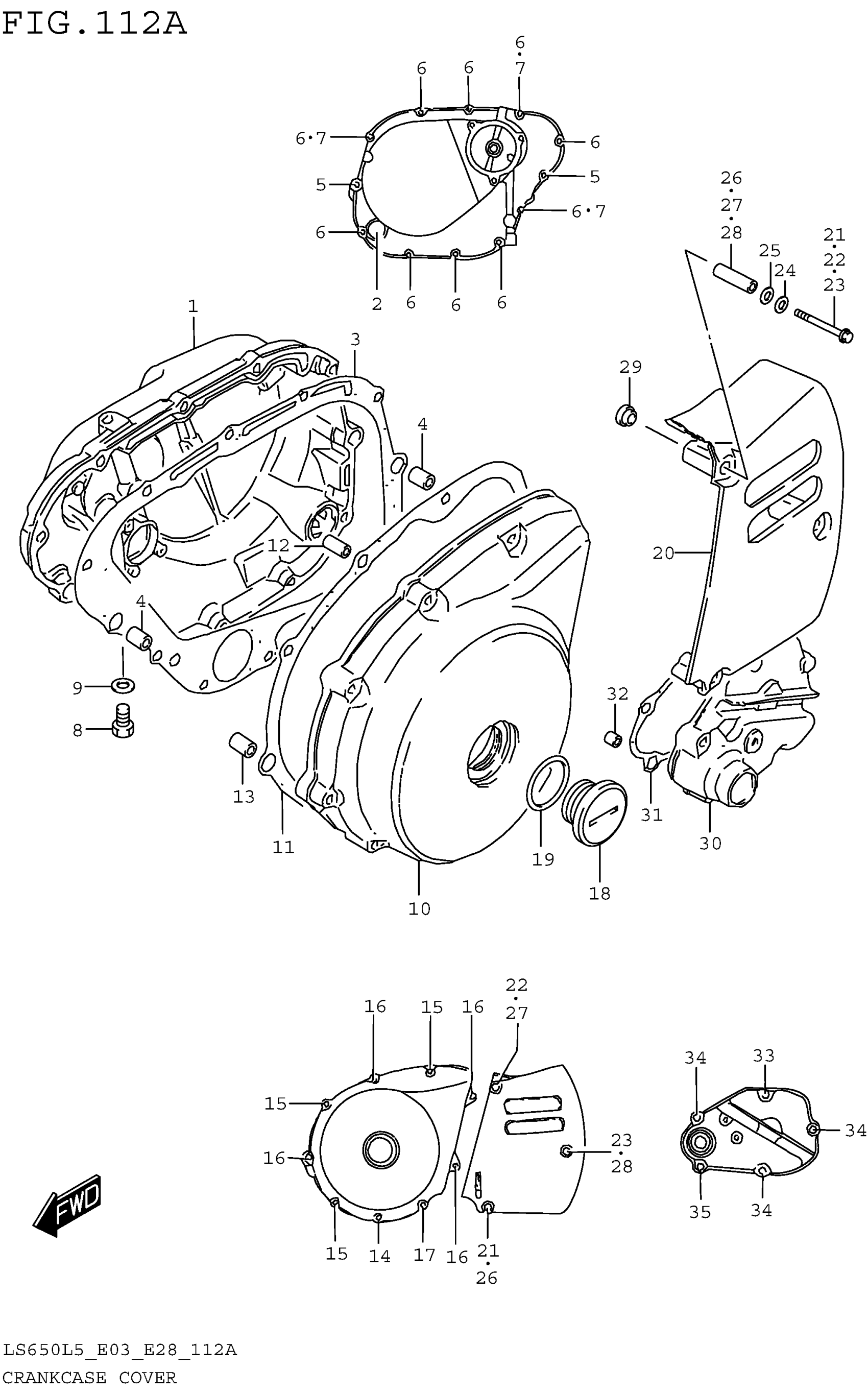

Suzuki LS650L5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-24B00

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-24B20

$27.22

4

PIN

04211-11169

$1.77

5

BOLT (6X35)

09103-06214

$2.57

6

BOLT (6X25)

09103-06212

$2.53

7

GASKET (5.8X13X1.2)

09168-06023

$2.01

8

PLUG (12X9)

09247-12104

$2.73

9

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

10

COVER, GENERATOR

11351-24B10

$199.57

11

GASKET, GENERATOR COVER

11483-24B01-H17

$15.68

12

PIN

04211-09189

$1.64

13

PIN

04211-11189

$1.80

14

BOLT (6X25)

09103-06212

$2.53

15

BOLT (6X35)

09103-06214

$2.57

16

BOLT (6X45)

09103-06224

$2.68

17

BOLT (6X50)

09103-06238

$2.65

18

PLUG (36X10)

09259-36011

$18.73

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

COVER, ENGINE SPROCKET

11361-24B10

$127.21

21

BOLT (6X45)

09103-06224

$2.68

22

BOLT (6X50)

09103-06238

$2.65

23

BOLT (6X55)

09103-06216

$2.80

24

WASHER (6.5X14X1.6)

09160-06125

$1.89

25

WASHER (8.7X15X2.1)

09161-09006

$2.36

26

SPACER (6.5X9X31.5) | NO.1

09180-06277

$3.56

27

SPACER (6.5X9X38.3) | NO.2

09180-06279

$4.06

28

SPACER (6.5X9X41.3) | NO.3

09180-06280

$5.52

29

WASHER (8.7X16X5)

09161-09005

$2.33

30

COVER, GEAR SHIFT

11371-24B01

$112.45

31

GASKET, GEAR SHIFT COVER

11485-24B20

$8.32

32

PIN

04211-09109

$1.64

33

BOLT

01547-0616A

$2.01

34

BOLT

01547-0630A

$2.31

35

BOLT

01547-0635A

$2.31
