Partiron

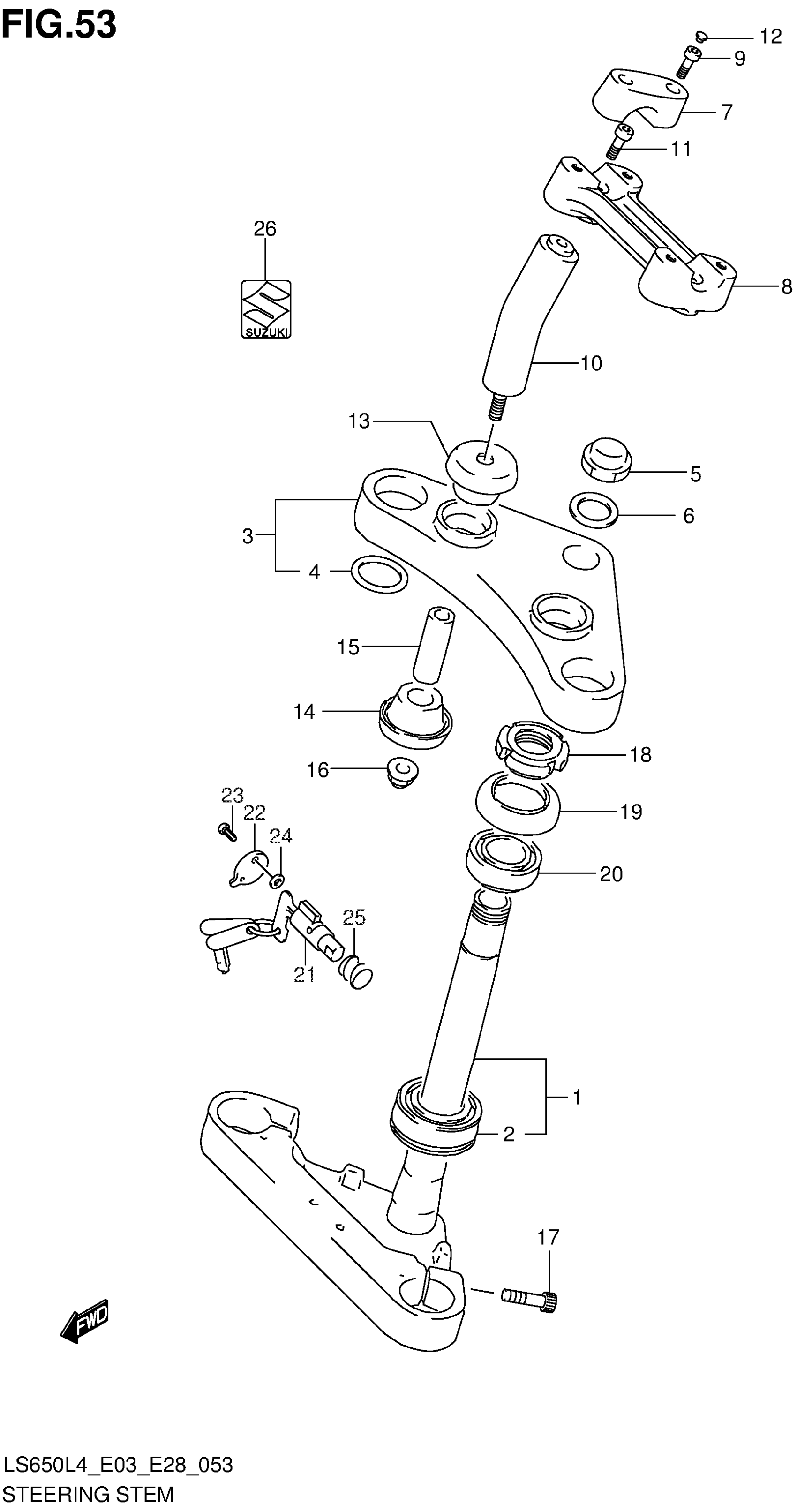

Suzuki LS650L4 (2014) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-24B20

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

HEAD, STEERING STEM

51310-24B50

Unavailable

4

WASHER

51357-24B00

Unavailable

5

NUT, CAP

51353-24B10

Unavailable

6

WASHER

51356-24B01

$7.13

7

HOLDER, HANDLE UPPER

56211-24B50

Unavailable

8

HOLDER, HANDLE LOWER

56221-24B50

Unavailable

9

BOLT

07130-08307

$4.98

10

ARM

56231-24B50

Unavailable

11

BOLT

07130-10257

$5.00

12

CAP (OD:14.5)

09250-06009

$3.13

13

CUSHION, UPPER

56240-24B00

$46.98

14

CUSHION, LOWER

56240-24B10

$46.98

15

SPACER (10.2X14X46)

09180-10065

$5.75

16

NUT

08319-31107

$2.73

17

BOLT

07130-10307

$5.63

18

NUT, STEERING STEM

51631-28000

$19.60

19

DUST SEAL, STEERING UPPER

51643-49002

$13.92

20

BEARING (25X47X15)

09265-25019

$61.43

21

LOCK ASSY, STEERING

51900-29F00

$231.35

22

CAP, STEERING LOCK

51912-29F00

$7.03

23

PIN, STEERING LOCK

51913-29F00

$5.65

24

WASHER, STEERING LOCK

51914-29F00

$5.43

25

SPRING, STEERING LOCK

51931-29F00

$4.90

26

EMBLEM, "S"

68281-47HA0

$7.11
