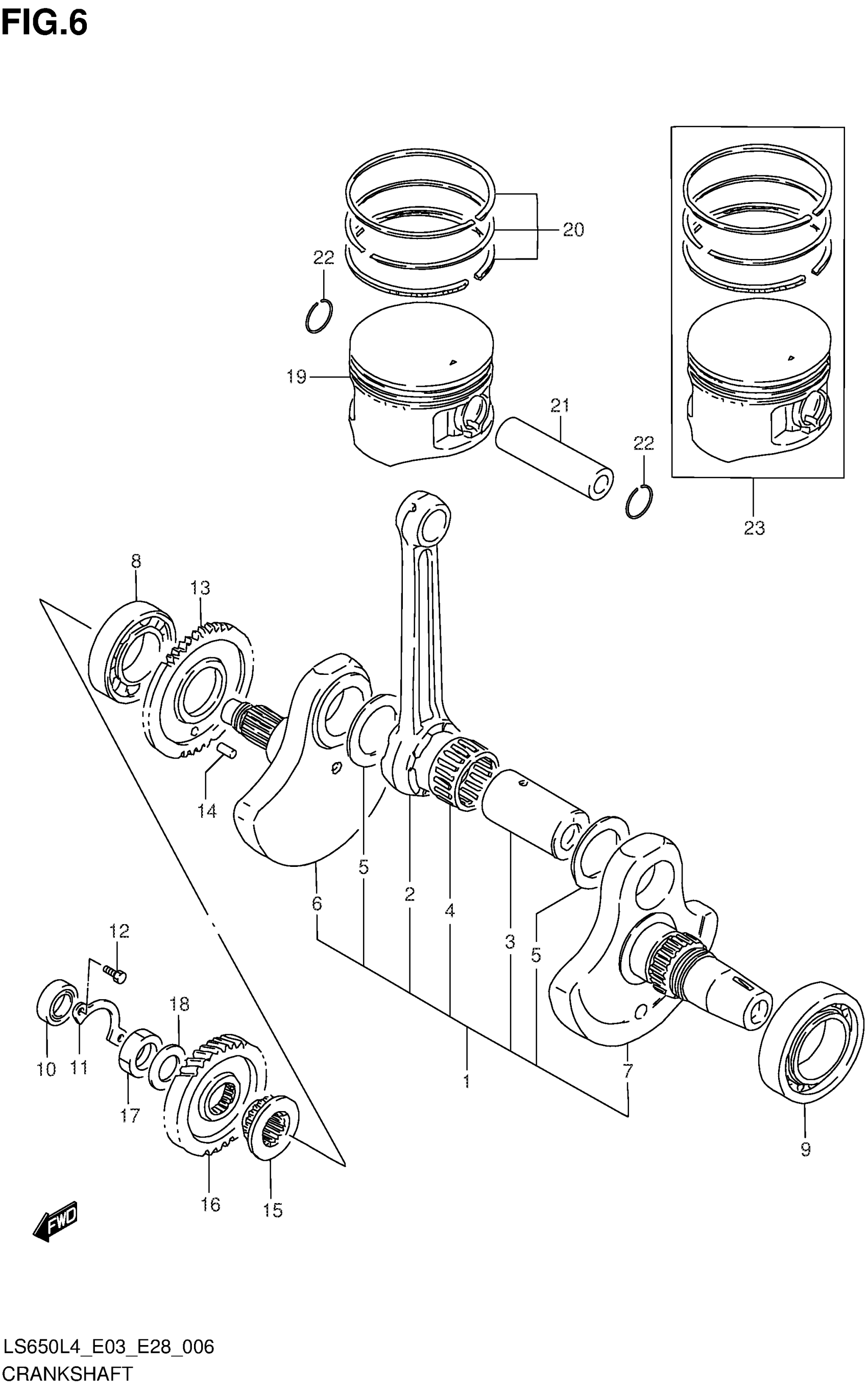

Suzuki LS650L4 (2014) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-24B05

Unavailable

2

CONNROD

12161-24B01-0C0

$175.28

3

PIN, CRANK

12210-24B01-0A0

$77.42

4

BEARING (37X47X25) (BLUE)

09263-37004-0B0

$60.07

4

BEARING (37X47X25) (RED)

09263-37004-0C0

$57.85

5

WASHER (37X55X1)

09160-37006

$11.52

6

CRANKSHAFT, RH

12221-24B02

Unavailable

7

CRANKSHAFT, LH

12261-24B02

Unavailable

8

BEARING (35X72X17) | RH

09262-35038

$42.19

9

BEARING (40X80X18) | LH

09264-40002

$163.68

10

OIL SEAL (16X30X6) | RH

09282-16002

$8.79

11

RETAINER, CRANKSHAFT OIL SEAL

12548-24B00

Unavailable

12

BOLT

01500-0508B

Unavailable

13

GEAR, CRANK BALANCER DRIVE (NT:47)

12661-24B00

Unavailable

14

PIN

04221-08149

$1.98

15

SPROCKET, CAM CHAIN DRIVE (NT:19)

12731-24B00

$77.42

16

GEAR, PRIMARY DRIVE (NT:37)

21111-24B10

Unavailable

17

NUT

09140-20013

$3.90

18

WASHER

09164-20003

$4.18

19

PISTON

12111-24B01-0F0

$151.13

20

RING SET, PISTON

12140-14A32

$43.14

21

PIN, PISTON

12151-14A01

$22.03

22

CIRCLIP

09381-23003

$1.52

23

PISTON SET (OS:0.5) | OPT

12100-24B00-050

$221.55
