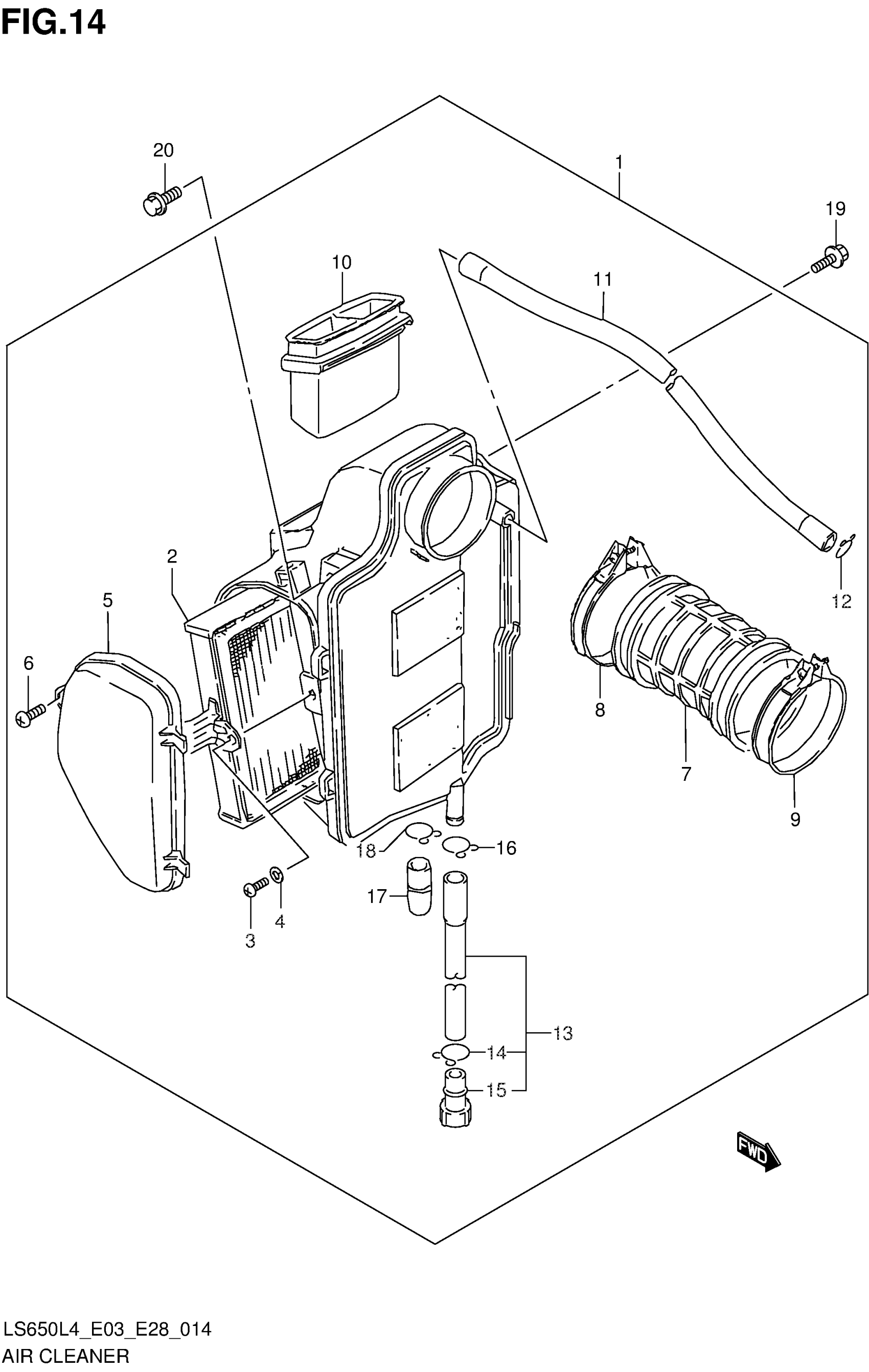

Suzuki LS650L4 (2014) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-24B05.

13700-24B07

$282.58

2

FILTER ASSY AIR

13780-24B01

$36.20

3

SCREW

02112-05107

$1.43

4

LOCK WASHER

08321-0105A

$1.83

5

CAP AIR CLEANER

13740-24B01

$24.82

6

SCREW

02142-0512A

$1.37

7

TUBE,AIR CLEANE This part replaces 13881-24B01.

13881-24B02

$16.65

8

CLAMP

09402-70902

$5.09

9

CLAMP

09402-64203

$5.94

10

TUBE, INLET

13891-24B00

Unavailable

11

HOSE | L:600->430 This part replaces 09352-11153-600.

09352-11154-600

$11.77

12

CLIP

09401-14301

$2.17

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$14.60

14

CLIP This part replaces 13824-18910.

09401-11101

$2.43

15

STOPPER, DRAIN

13877-38A00

$6.75

16

CLIP

09401-13409

$2.13

17

.PLUG

13859-41B10

$6.94

18

CLIP

09401-14301

$2.17

19

BOLT (6X16)

09116-06006

$1.88

20

BOLT

01550-0612B

$2.38
