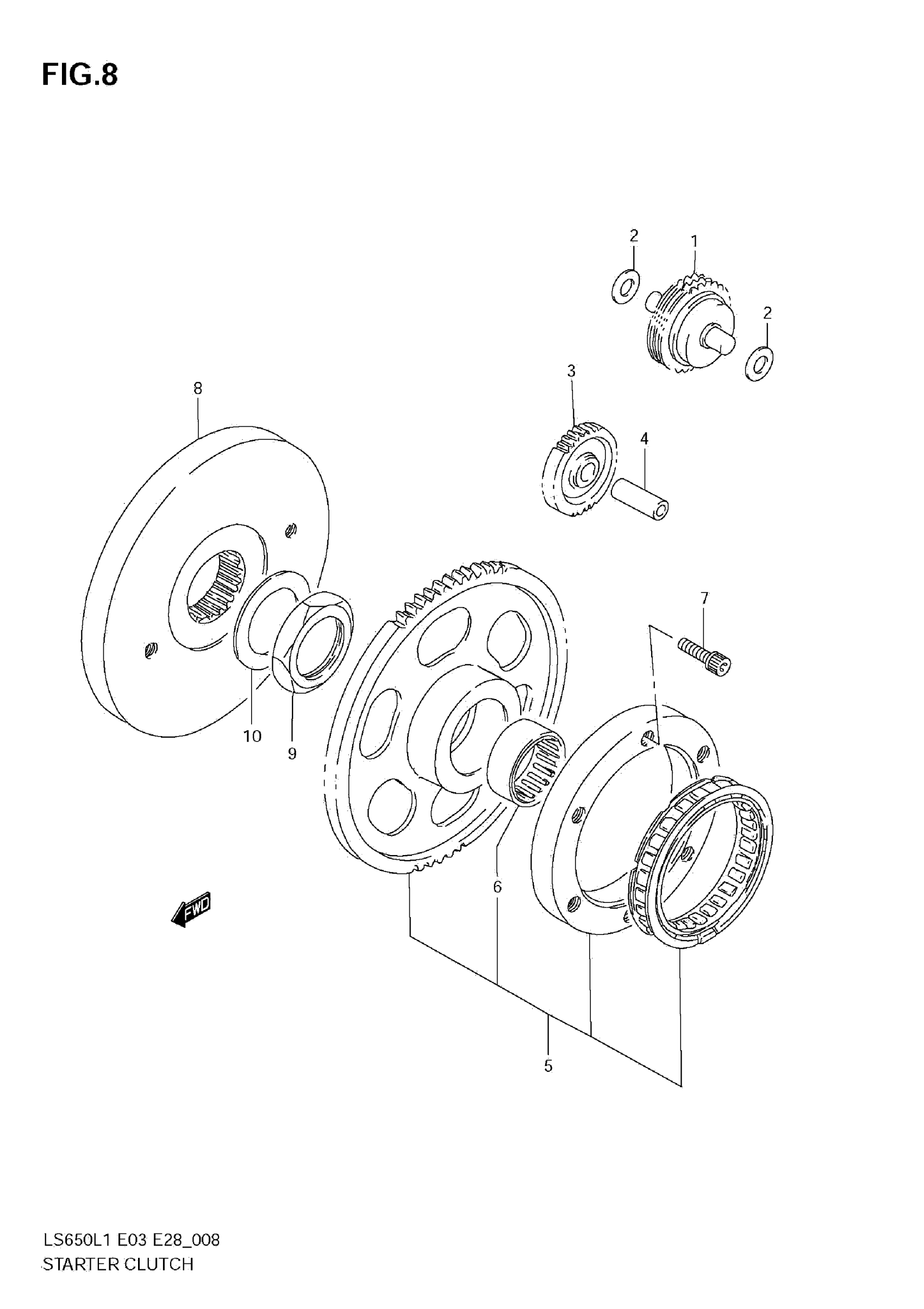

Suzuki LS650L1 (2011) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE GEAR

12600-24B11

$298.40

2

SHIM (10X18X1)

09181-10167

$1.99

3

GEAR, STARTER IDLE NO.2 | NT:34

12612-24B03

$72.57

4

PIN (L:30)

09202-10011

$6.61

5

CLUTCH SET, STARTER

12600-24831

$405.58

6

BEARING (31X39X17.8)

09263-31009

$51.08

7

BOLT (8X16)

09106-08095

$0.88

8

FLYWHEEL

12656-24B02

Unavailable

9

NUT, FLYWHEEL

12664-24B01

$17.40

10

WASHER

09164-35002

Unavailable
