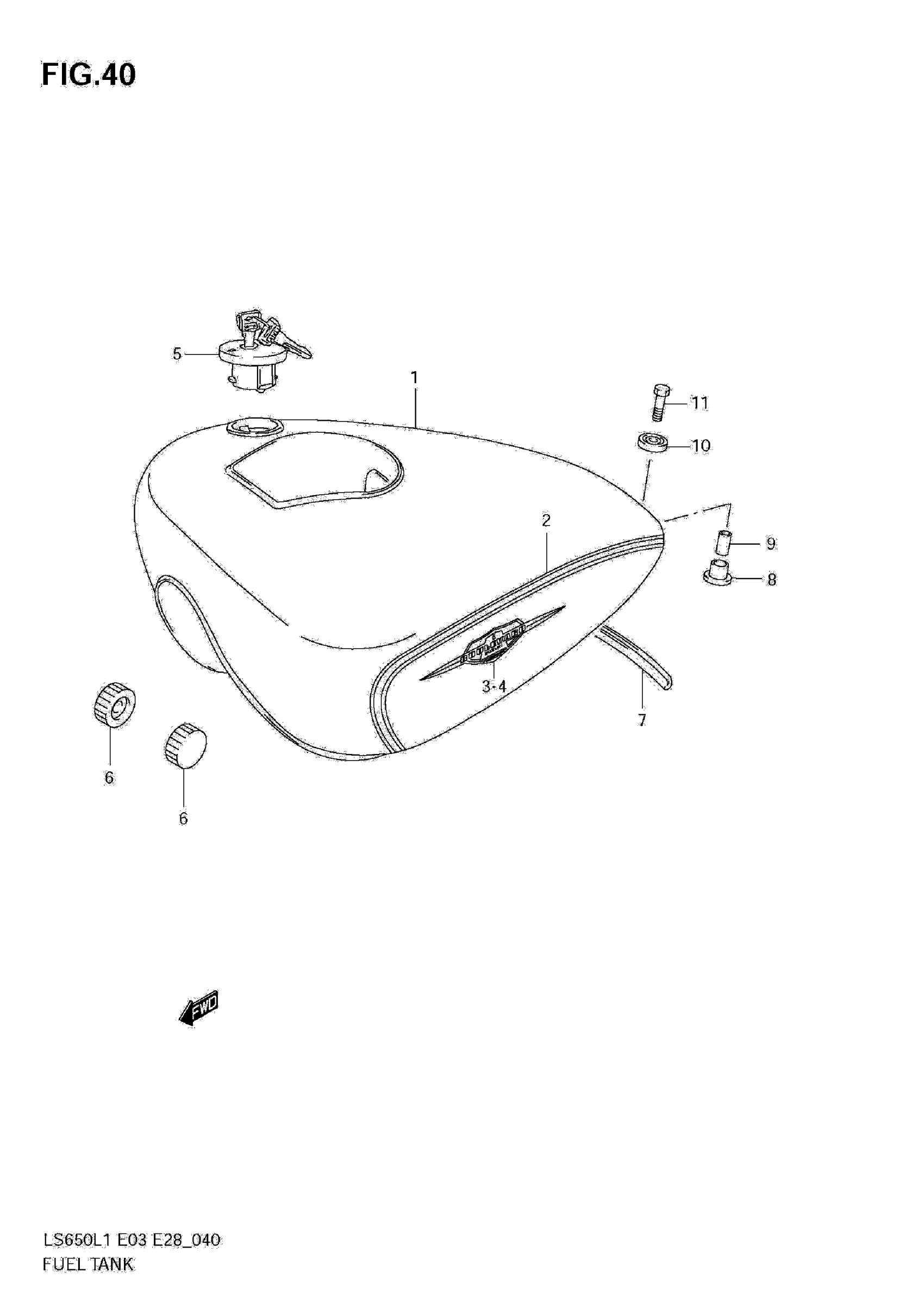

Suzuki LS650L1 (2011) FUEL TANK (LS650L1 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE/SILVER)

44100-24C30-JEY

Unavailable

1

TANK ASSY, FUEL (ORANGE/BLACK)

44100-24C30-JGS

Unavailable

2

TAPE SET, FUEL TANK | FOR JEY

68110-24C00-JHL

Unavailable

2

TAPE SET, FUEL TANK | FOR JGS

68110-24C00-JHM

Unavailable

3

EMBLEM, FULE TANK RH

68111-24C01

Unavailable

4

EMBLEM, FUEL TANK LH

68121-24C01

Unavailable

5

CAP SET, FUEL TANK

44200-24830

$139.72

6

CUSHION

09329-10016

$2.80

7

MOLDING, FUEL TANK REAR

44552-24B00

$13.26

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

9

SPACER (6.5X9X18)

09180-06271

$2.17

10

CUSHION

09320-14013

$2.19

11

BOLT

01500-0630B

$3.30
