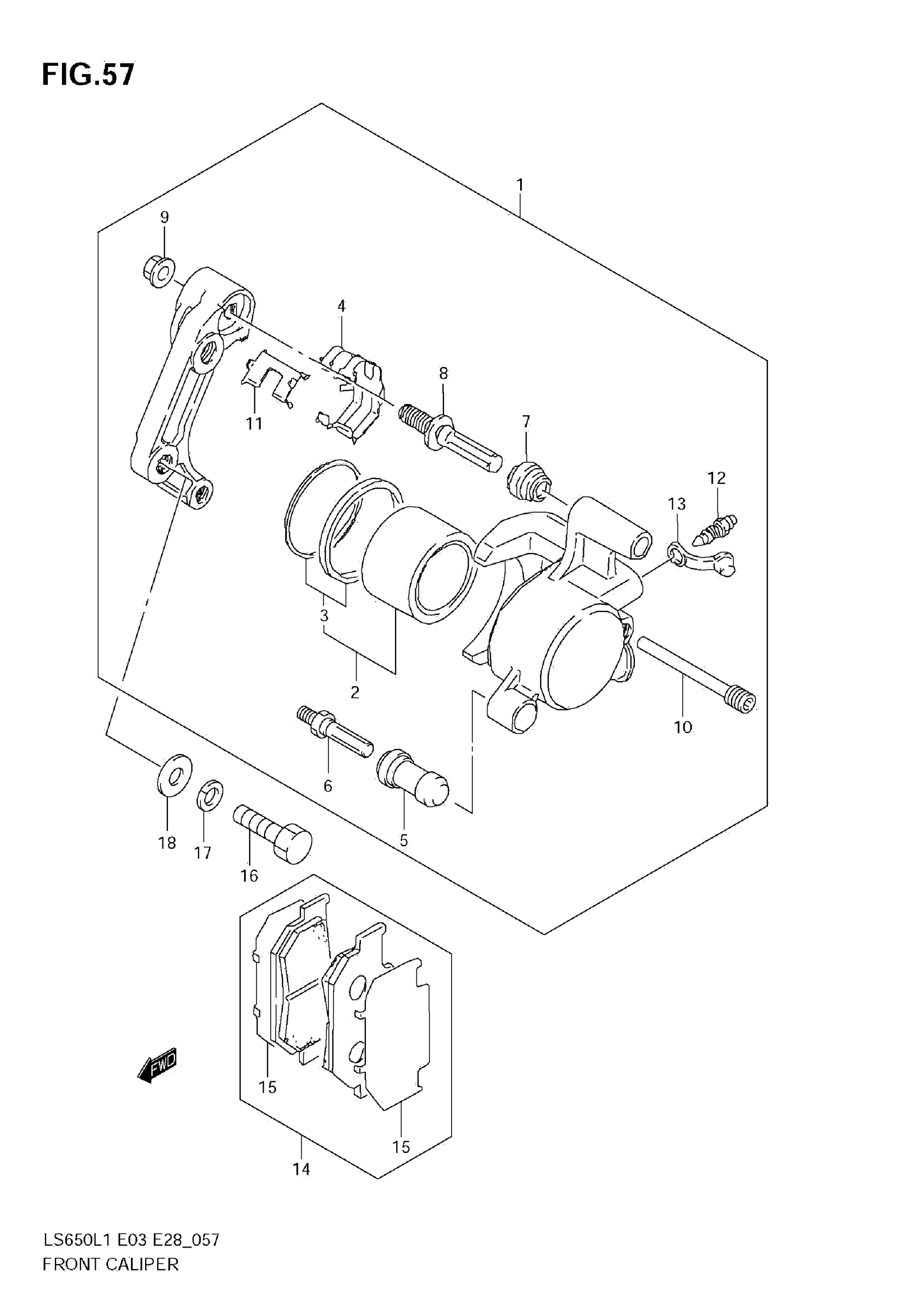

Suzuki LS650L1 (2011) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT

59300-24B40-999

$537.10

2

PISTON SET

59300-24820

$55.05

3

SEAL SET, PISTON

59300-24810

$10.57

4

SPRING

59315-14600

$13.35

5

BOOT

59386-13A00

$7.28

6

BOLT

59382-27C30

$8.54

7

BOOT

59303-14500

$5.06

8

BOLT

59305-14500

$26.03

9

NUT

59306-14500

Unavailable

10

PIN

59345-14600

$18.33

11

RETAINER

59316-24B10

$9.50

12

BLEEDER

59121-01A00

$7.99

13

CAP, BLEEDER

59122-01A00

$3.97

14

PAD & SHIM SET This part replaces 59300-24850.

59100-26860

$44.18

15

SHIM

59371-24B00

$17.40

16

BOLT (10X38)

09104-10029

$3.25

17

LOCK WASHER

09162-10008

$2.80

18

WASHER

08322-01107

$1.88
