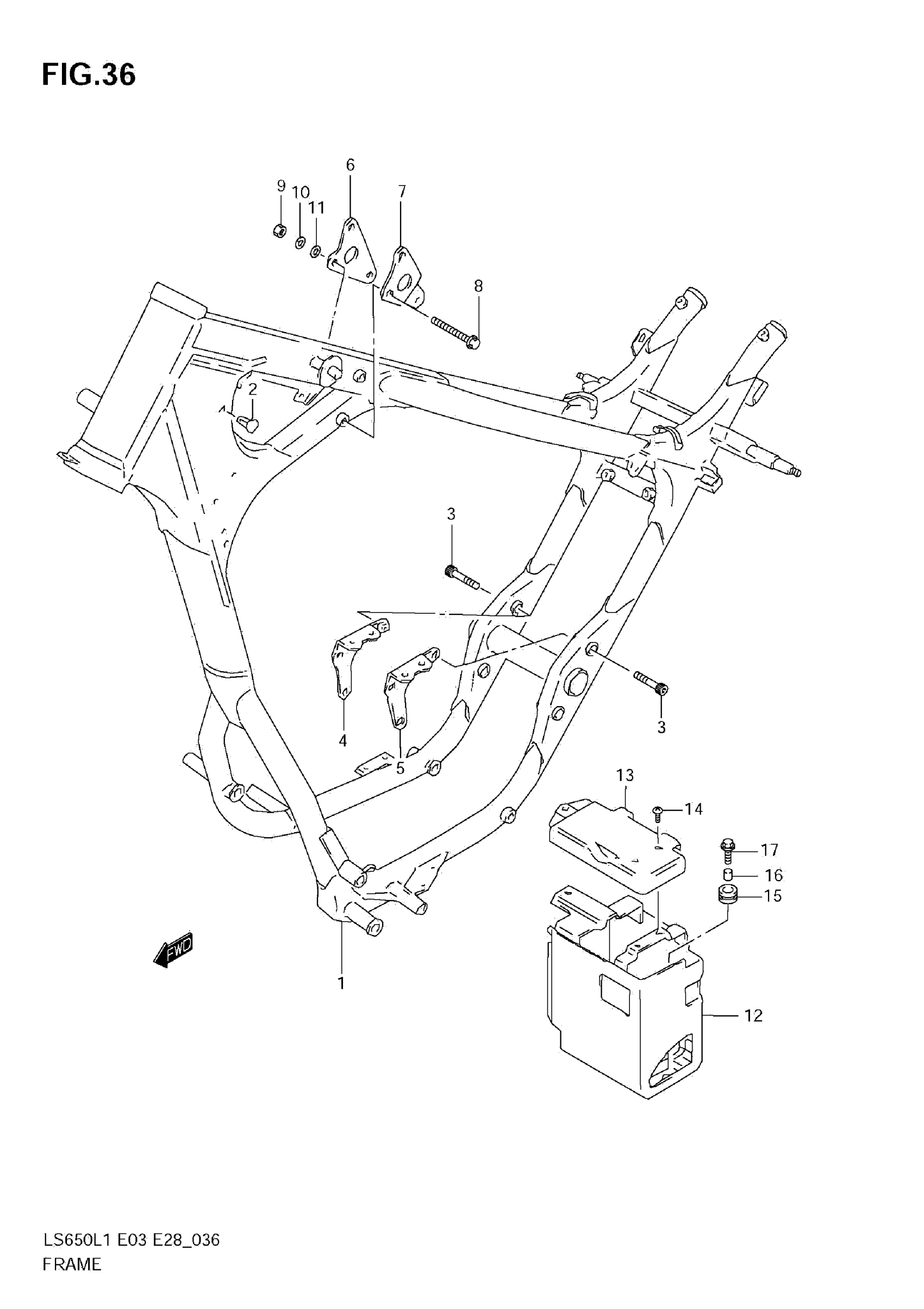

Suzuki LS650L1 (2011) FRAME (LS650L1 E33) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-24B01-019

Unavailable

2

CLIP

09409-06306

Unavailable

3

BOLT (8X40)

09106-08074

$3.52

4

PLATE, ENGINE MOUNTING NO.4 RH (BLACK)

41970-24B00-019

Unavailable

5

PLATE, ENGINE MOUNTING NO.4 LH (BLACK)

41980-24B00-019

Unavailable

6

PLATE, ENGINE MOUNTING NO.5 RH (BLACK)

41991-24B00-019

Unavailable

7

PLATE, ENGINE MOUNTING NO.5 LH (BLACK)

41992-24B00-019

Unavailable

8

BOLT (8X72)

09103-08279

Unavailable

9

NUT

08319-2108A

$2.13

10

LOCK WASHER

08321-0108B

Unavailable

11

WASHER

08322-0108B

$2.37

12

HOLDER, BATTERY

41540-24B01

$112.78

13

COVER, BATTERY

41576-24B01

$40.83

14

SCREW, COVER

02142-04107

$1.30

15

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

16

SPACER (6.5X9X7.2)

09180-06260

$3.08

17

BOLT (6X20)

09116-06010

$2.10
